Extended precision rotating lathe center - Morse 4 (DM114)
Availability:
średnia ilość
Dispatched within:
24 hours
Gross price:
$122.00
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$99.19
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_KLY_DM114
Description
Information:

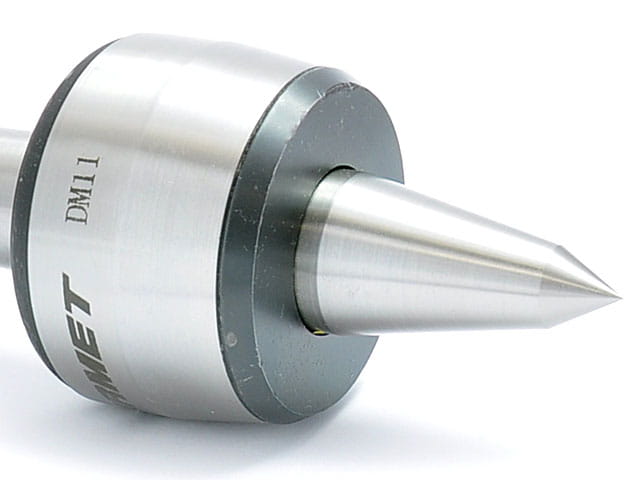

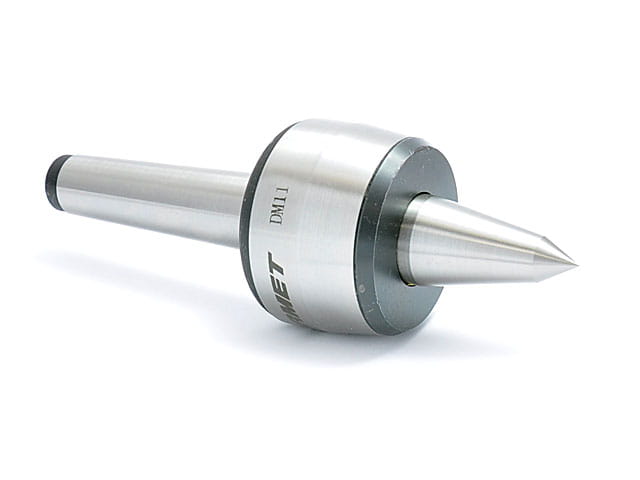

- Precision live turning center with extended blade, intended for turning and grinding work.
- The extended blade of the center allows the turning tool to reach the face of the workpiece.
- Made of high-quality alloy steel, hardness of working surfaces 55 - 60 HRC.
- Used for the tailstock of lathes.
- Live turning centers are used to avoid friction of the working part of the center against the conical surface of the center hole made by nawiercak.
- Maximum run-out: 0.005 mm.

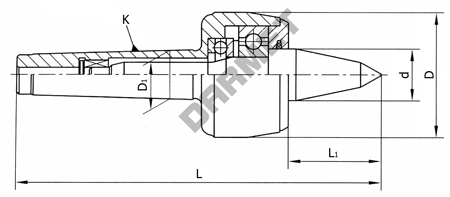

Specification:
| Parameter | Value |
|---|---|
| K (Morse) | MK4 |
| L | 217 mm |
| D | 70 mm |
| L1 | 53 mm |
| d | 32 mm |
| D1 | 31.267 mm |
| Max. load | 500 kg |
| Max. speed | 3800 rpm |
| Weight | 1.6 kg |
If you still don't know which lathe center to choose, read guide on selecting centers.
