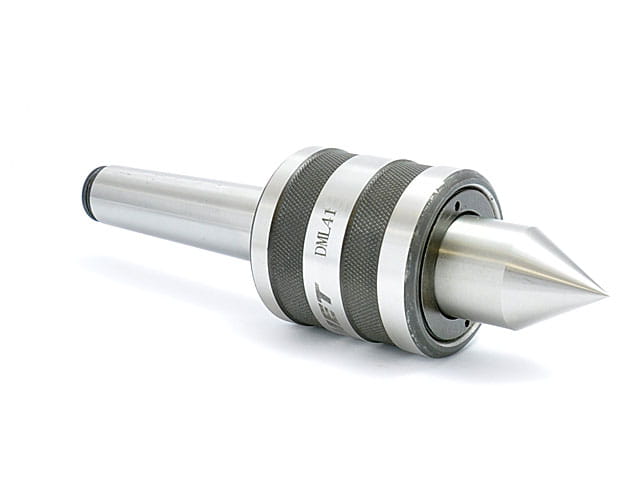

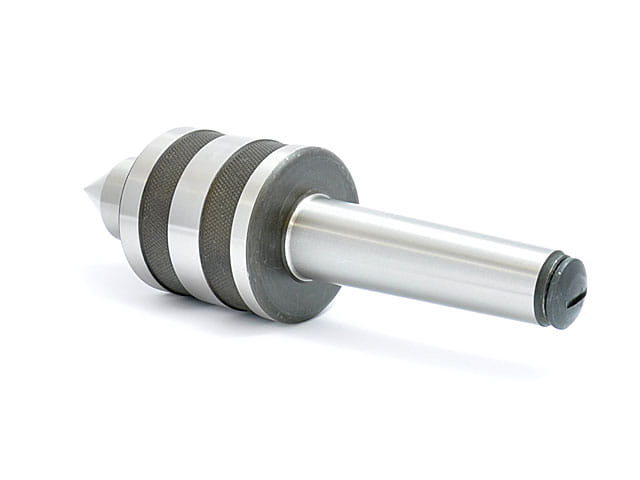

Extended rotating lathe center - Morse 3 (DML413)
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$37.28
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$30.31
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_KLY_DML413
Description
Information:
- Long live lathe center made of high-quality alloy steel.
- The extended center facilitates grinding.
- Used for the tailstock of lathes.
- Live centers are used to avoid friction between the working part of the center and the conical surface of the center hole made by nawiercak.
- Intended for general turning work.
- Protection against dust and liquid ensures long service life.
- Hardness of working surfaces 55 - 60 HRC.
- Maximum runout: 0.01mm.
- Point angle 60°.

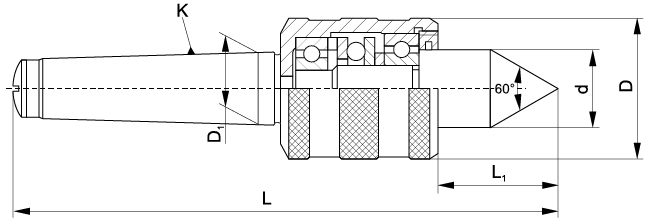

Specification:
| Parameter | Value |
|---|---|
| K (Morse) | MK3 |
| L | 183 mm |
| D | 52 mm |
| L1 | 43 mm |
| d | 28 mm |
| D1 | 23.825 mm |
| Max. load | 200 kg |
| Max. speed | 4200 rpm |
| Weight | 1.0 kg |
If you still don't know which lathe center to choose, read guide on selecting centers.
