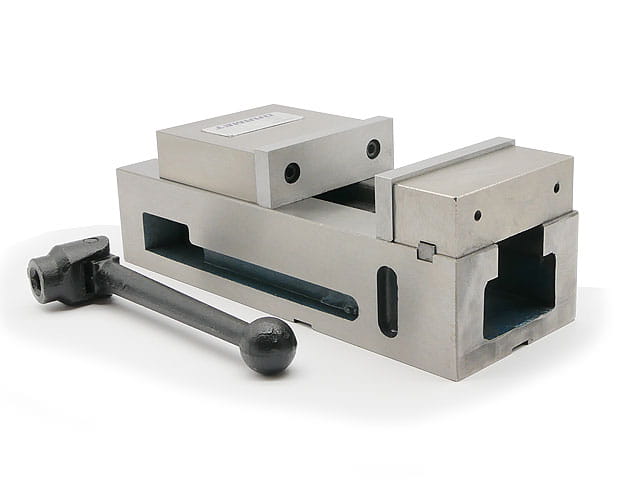

Fixed milling machine vise 100x100 mm with jaw pressure FPQ DARMET
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$176.91
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$143.83
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_IM_FPQ_100_100
Description
Information:
- The clamping device, designed for high durability, is made of high-quality, specially hardened materials.
- The cast iron body is hardened to approximately 40 HRC, and the steel jaw inserts have a hardness of approximately 48-52 HRC.
- The special design of the movable jaw pulls the clamped element down into the bed.
- The vice has grooves and channels to securely mount it on the machining table using mounting elements.

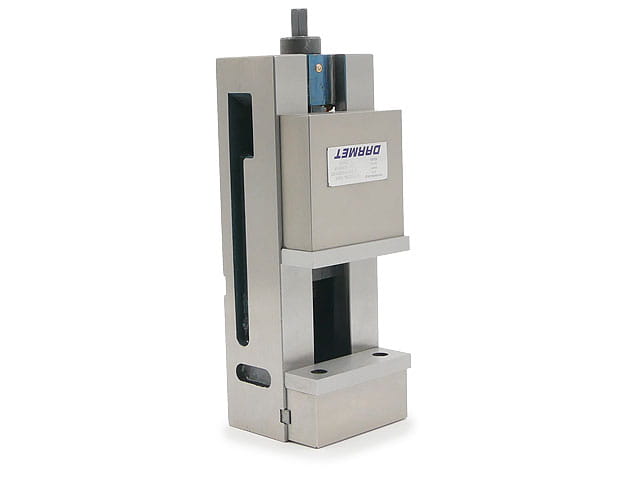

- Another advantage is the special design of both jaws. They are narrower than the base so that the device can also work in a lateral position, so as to use the entire insert mounting surface.
- Jaw inserts can be mounted on both sides of the device. This allows for many clamping combinations, even for flat workpieces that can be placed on the jaw surface.
- Universal use even in electro-erosion machine tools and machining centers with numerical control.
- Clamping a workpiece that will not adhere to the bed is performed using parallel washers, similar in length to the width of the jaw inserts.
Specification:
| Parameter | Value |
|---|---|
| S | 100 mm |
| H | 89 mm |
| H1 | 60 mm |
| h | 32 mm |
| L | 265 mm |
| a | 100 mm |
| D1 | 14 mm |
| D2 | 14 mm |
| Weight | 11 kg |
Possible ways of mounting jaw inserts:
| Model | A1 [mm] | A2 [mm] | A3 [mm] | A4 [mm] |
|---|---|---|---|---|
| FPQ 100/100 | 100 | 150 | 215 | 265 |
Presentation and basic information in video form:
Example of using a set of vices:
What stones should I choose for my vise?
