Fixed milling machine vise 160x140 mm with jaw pressure FPQ DARMET

Availability: średnia ilość

Dispatched within: 24 hours

Delivery: The price does not include any possible payment costs check the delivery methods

Gross price: $319.24

incl. 23% TAX, excl. shipping costs

Regular price:

319.24

The lowest price during 30 days prior to the reduction:

Net price: $259.55

excl. 23% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

quantity szt.

You gain 115 points []

product unavailable

add to wish list

Rating:

Vendor:

Product code: DM_IM_FPQ_160_140

Information:

The clamping device designed for high durability is made from high-quality materials specially hardened.
The cast iron body hardened to about 40 HRC, steel jaw inserts with hardness around 48-52 HRC.
The appropriate design of the movable jaw pulls the clamped element down to the base.
The vise has grooves and channels to securely fasten it to the machining table using fastening elements.
Another advantage is the special design of both jaws. They are narrower than the base so the device can also work in a side position, utilizing the entire surface area of the insert mounts.
Jaw inserts can be mounted on both sides of the tool. This provides many mounting combinations, even for flat objects which are supported on the jaw surfaces.
Universal application even in EDM machines and CNC machining centers.
Mounting of a workpiece that does not contact the base is done using parallel shims, similar in length to the width of the jaw inserts.

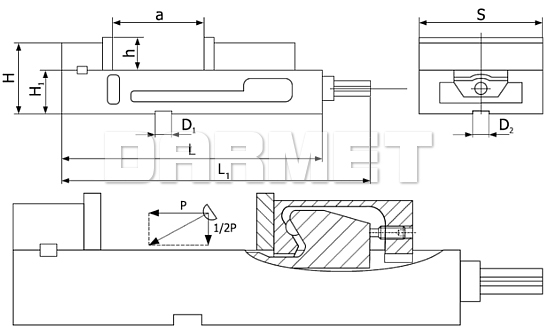

FPQ MACHINE VISE

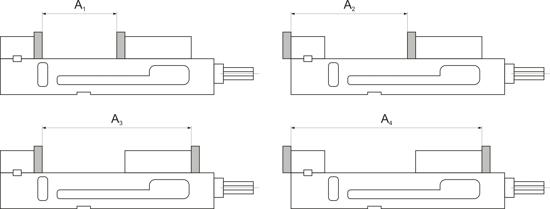

mounting

Model	A₁ [mm]	A₂ [mm]	A₃ [mm]	A₄ [mm]
FPQ 100/100	140	210	305	375

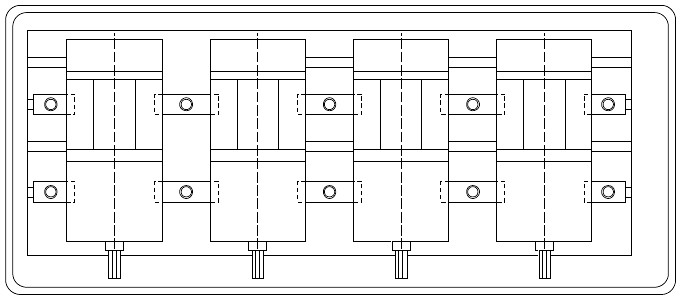

example of assembling several vises in a set
