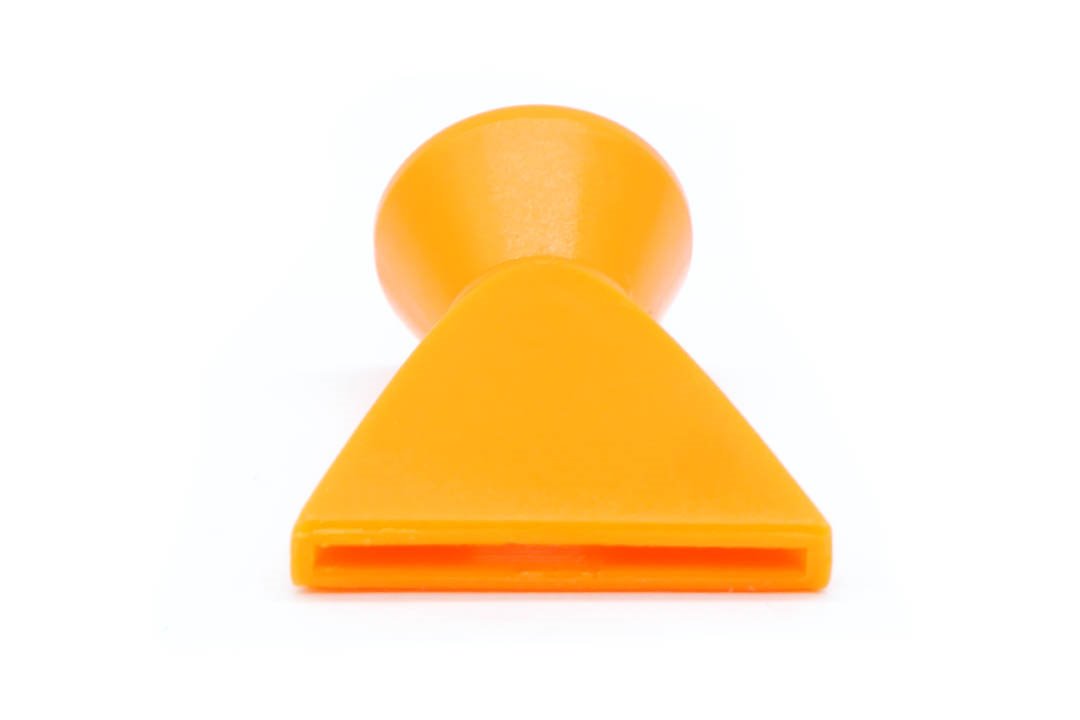

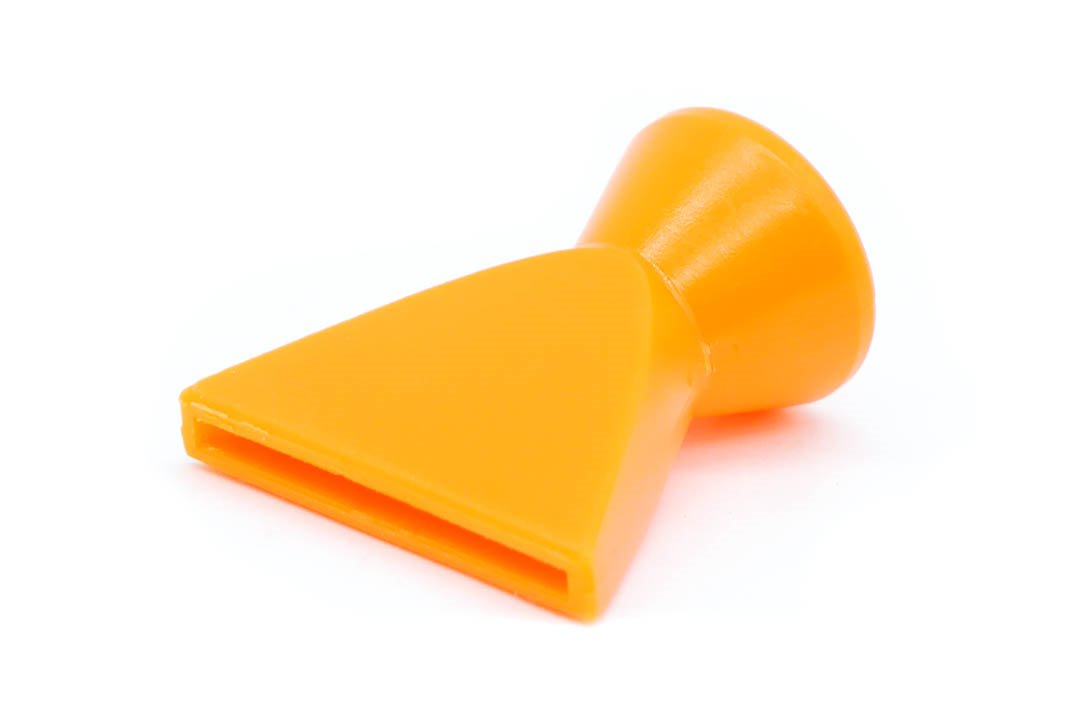

Flat Nozzle 24.5 × 1.58 mm (1") | 1/4" System – DM 28028-14

Features and applications:

• Flat nozzle is used for a wide range of metalworking applications. It is durable and designed for long-term, effective use.
• The nozzles can be connected with coolant hoses and segments to create your own system according to your needs. They are easy to assemble, which helps save time and allows the setup to be changed efficiently for different applications. Assembly pliers are required for connecting components of the 1/4" system.

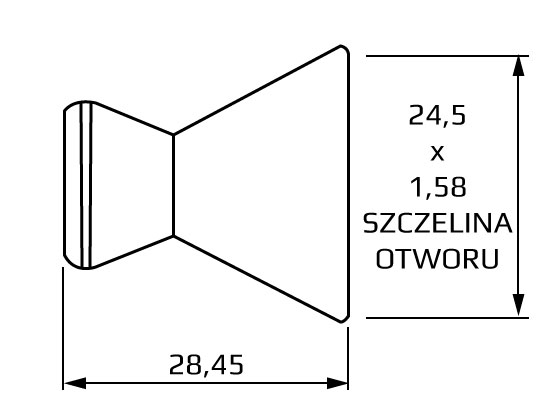

• Nozzle dimensions: 24.5 × 1.58 mm.
• The nozzles are made of acetal. This material is known for its high wear resistance, low coefficient of friction, good heat resistance and low water absorption. It is also used in applications where good mechanical properties across a wide temperature range, excellent sliding properties and resistance to moisture and hydrolysis are required. These properties increase the versatility of the product and allow it to be used in a wide range of applications.
• Replacement for the Loc-Line 49427.1 nozzle.
• Components for the 1/4" system:
  • segments,
  • valves,
  • hoses,
  • nozzles.

Technical specifications:

Features and applications:

Coolant systems are modular systems for supplying coolant, air or other media to the machining area. Their main advantages include:

✅ Flexibility and easy adjustment

• The coolant flow direction can be quickly adjusted to the required position.
• The length and shape can be easily adjusted by adding or removing segments.

✅ Easy assembly and disassembly

• Snap-fit systems allow components to be quickly assembled and replaced using pliers.
• The system can be easily expanded with additional nozzles or valves.

✅ More effective cooling

• Precise delivery of coolant directly to the cutting area.
• Reduction of coolant loss, resulting in cost savings and more efficient machining.

✅ Resistance to oils and chemicals

• Made of material resistant to most coolants, lubricants and industrial chemicals.
• Corrosion-resistant and suitable for long-term use in demanding workshop conditions.

✅ Safety and stability

• No risk of electrical conductivity, unlike metal coolant tubes.
• The system is resistant to vibration and remains in position during machine operation.

✅ Versatility

• Suitable for various types of machine tools, including lathes, milling machines, grinders and other machines.
• Availab
