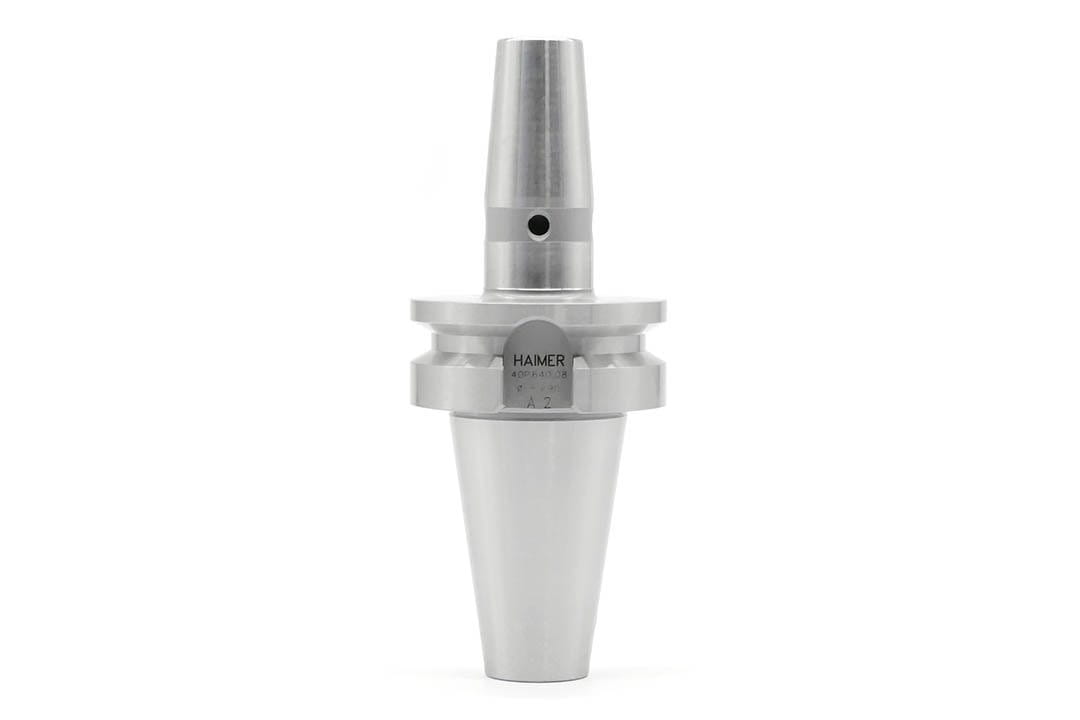

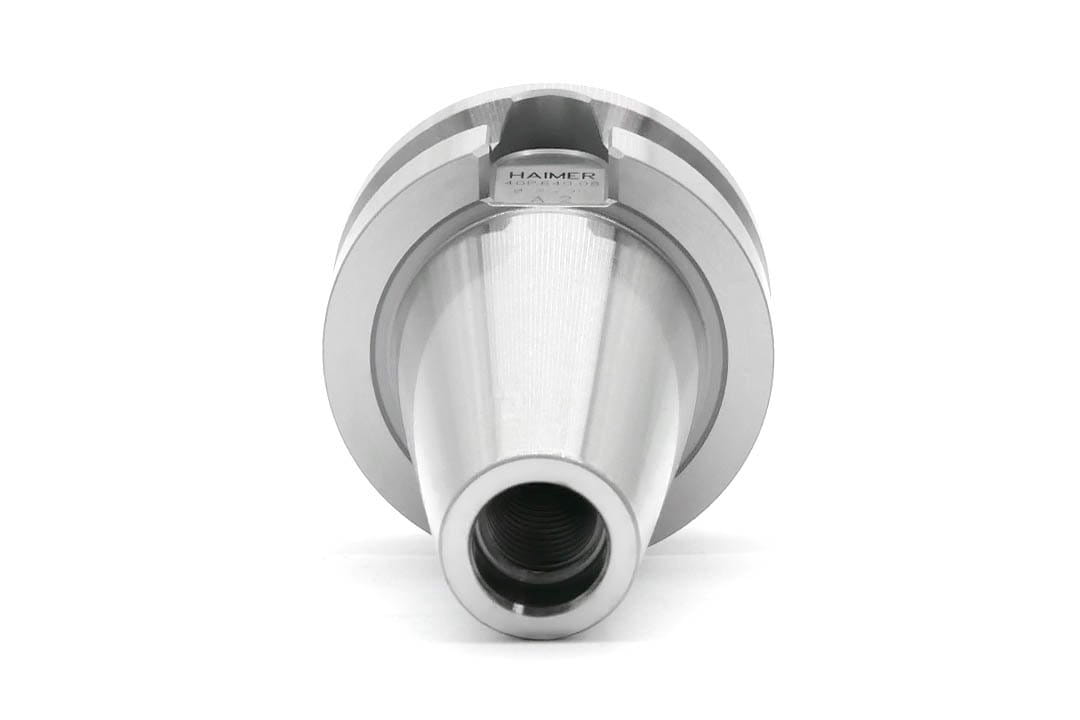

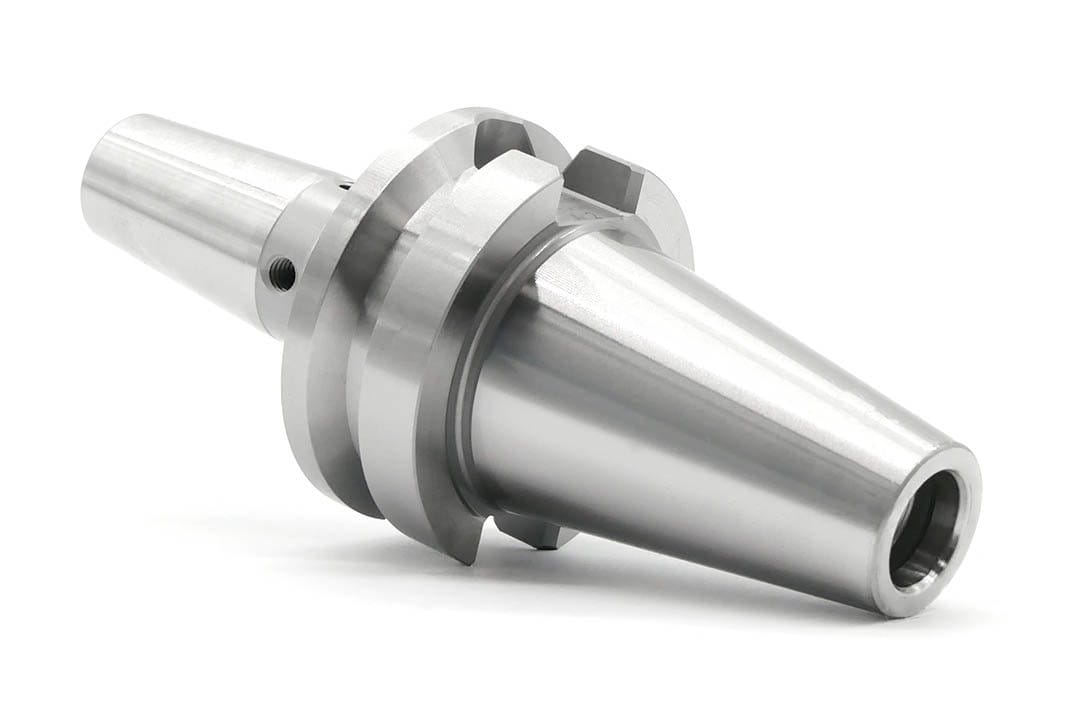

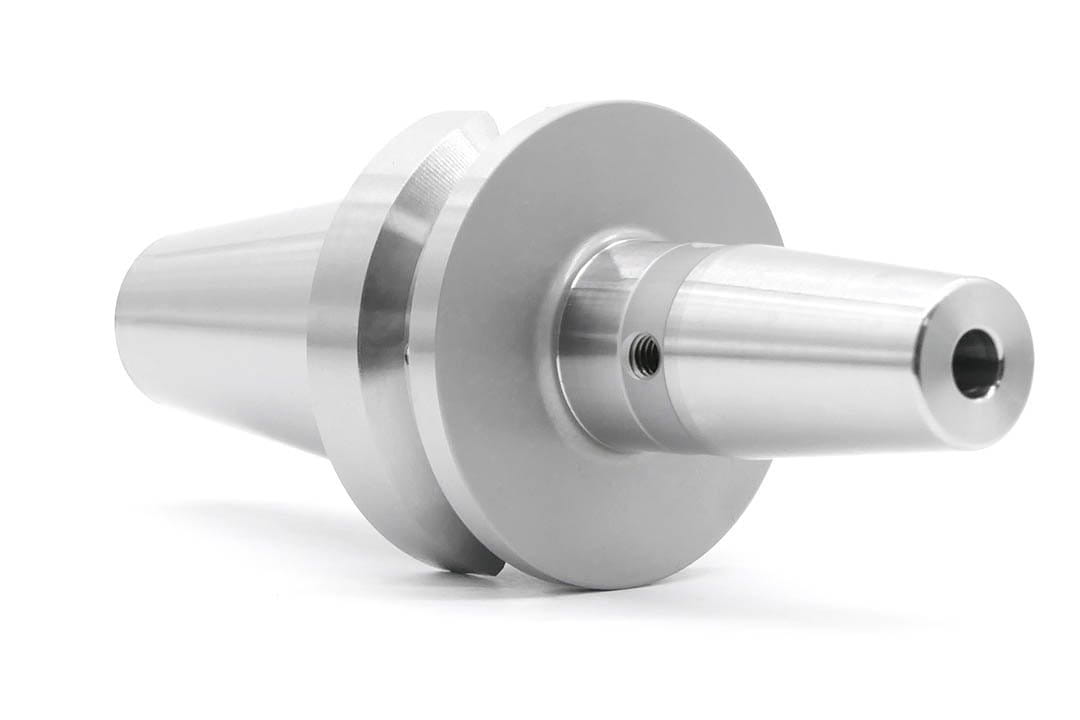

Heat-Shrink Holder DUAL CONTACT | Short | 8 mm Diameter | Standard | MAS 403-BT 40 - HAIMER 40P.640.08
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$213.51
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$173.58
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Description
Właściwości i zastosowanie:

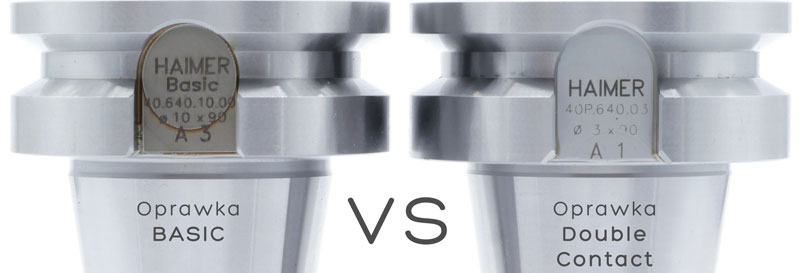

- The STANDARD DUAL CONTACT heat-shrink holder provides dual contact clamping — both on the BT 40 taper and the holder flange surface.
- This dual contact ensures more precise and stable tool retention.
- Designed for clamping cylindrical shank tools with an 8 mm diameter, including HSS and solid carbide (VHM) tools with H6 tolerance.
- Compatible with all induction shrink-fit machines.
- Runout tolerance up to 0.003 mm (measured at 3xD from the holder face).
- Equipped with AD cooling system for internal coolant supply.
- Precision balanced to G2.5 for speeds up to 25,000 RPM; max speed up to 50,000 RPM.
- Slim heated tip allows access to tight spaces.
- Threaded holes for balancing screws.
- Durability: 3000 thermal cycles; each heating cycle allows tool mounting and removal, extending holder lifespan.

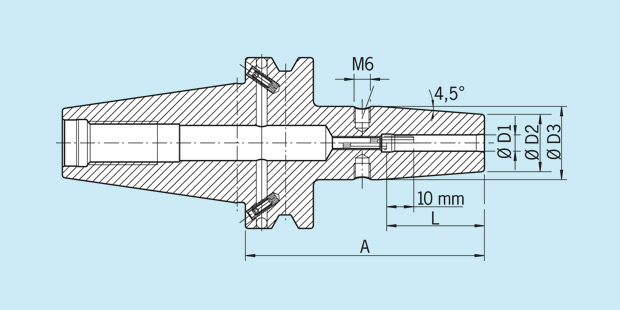

Technical data:
| Parameter | Value |
|---|---|
| Chwyt | JIS B 6339-2 MAS 403-BT - 40 |
| D1 | 8 mm |
| D2 | 21 mm |
| D3 | 27 mm |
| A | 90 mm |
| L | 36 mm |
| Product code | 40P.640.08 |
BT Shank - MAS 403 BT - Technical Information
