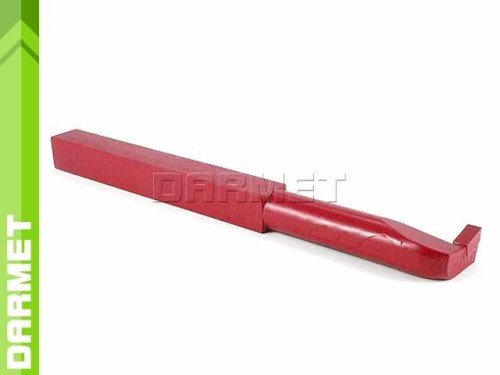

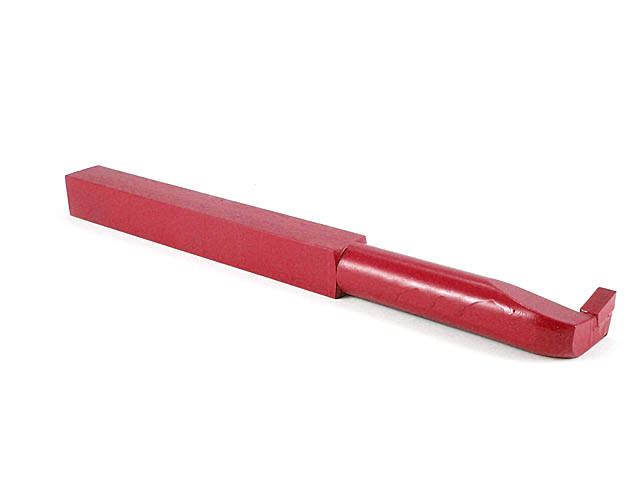

Hook boring turning tool NNWc ISO11, size 2525 H20 (K20), for cast iron
Availability:
brak towaru
Gross price:
$28.55
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$23.21
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
NNWc-ISO11-2525-K20
Description
Values and application:
- Designed for individual work and small series.
- Equipped with a ground H20 (K20) carbide cutting insert.
- Material machined with H20 (K20) carbide inserts: cast iron with a hardness of approx. 220 HB, copper and its alloys, light alloys, plastics, wood.
- Type of machining with H20 (K20) carbide inserts: turning, milling, planing, countersinking and reaming.

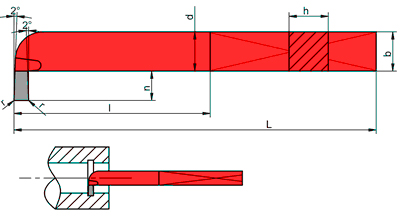

Technical data:
| Parameter | Value |
|---|---|
| h | 25 mm |
| b | 25 mm |
| L | 300 mm |
| b1 | 8 mm |
| n | 20 mm |
| l | 125 mm |
| r | 0.4 mm |
| Dmin | 63 mm |
| Weight | 1.3 kg |
| Turning tool |
ISO 243 ISO 514 |
PN-91 M-58352 |
DIN |
|---|---|---|---|
| Hook boring bar | ISO11 | NNWc | (263) |
Cutting parameters, cemented carbide grades, applications and technical information can be found at here.
