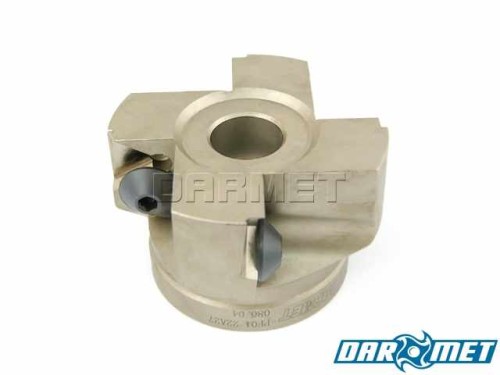

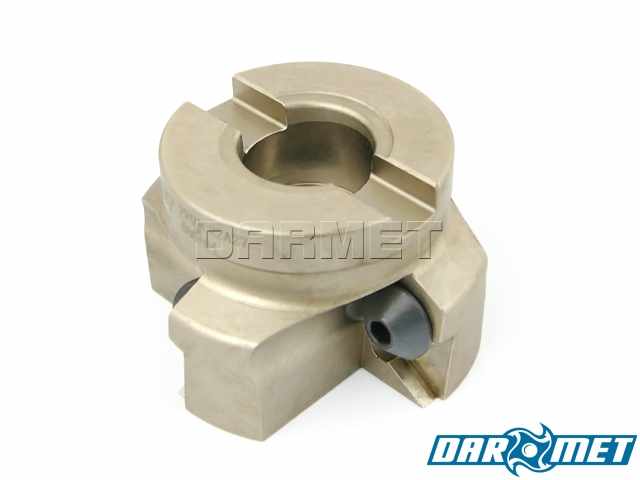

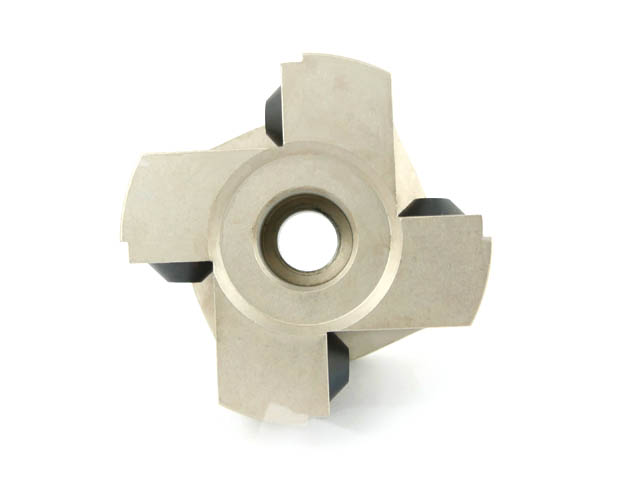

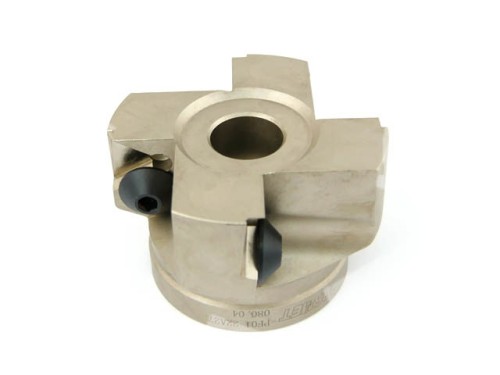

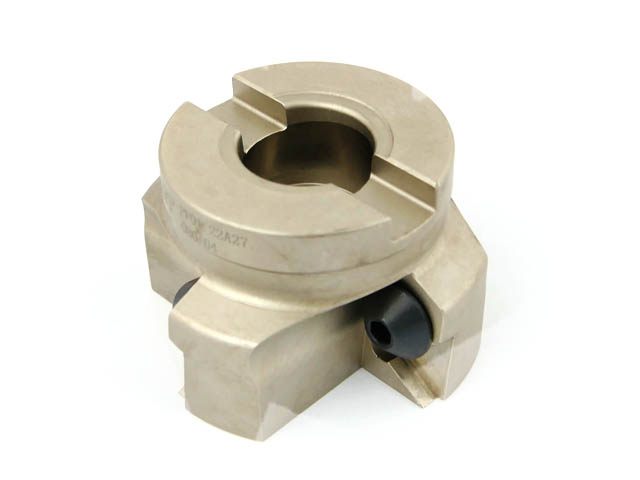

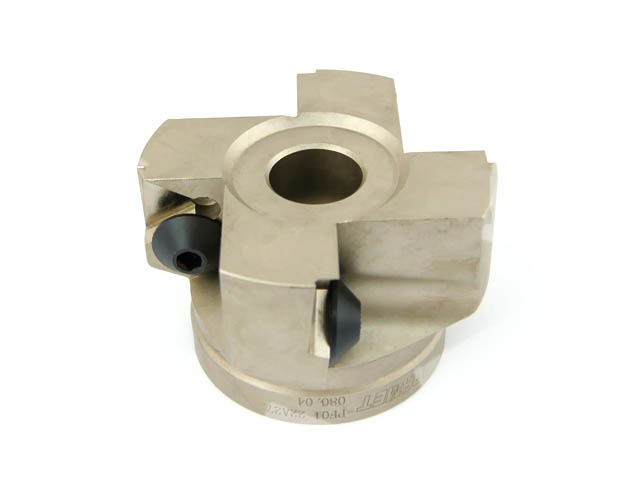

Insert face mill 80 mm, cylindrical face | 4 blades, TPKN, TPKR (FA90TP22)
Availability:
brak towaru
Gross price:
$88.07
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$71.60
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
FA90TP22-080-27A04
Description
Features and application:
- Indexable end mill.
- Milling head with interchangeable indexable inserts, which enable machining in different materials, depending on the blades installed.
- Cutting inserts with 3 cutting edges: TPKN 2204, TPKR 2204.
- The head is tightened with an Allen screw in the milling arbor with a diameter of 27 mm.
- For use in conventional and CNC machine tools.
- Blades are sold separately in single pieces.
- Set includes: milling head and key.
Technical data:
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| Symbol | FA90TP22-080-27A04 | |
| D | 80 | mm |
| D2 | 60 | mm |
| d | 27 | mm |
| apmax | 15 | mm |
| H | 50 | mm |
| Number of tiles | 4 |
Spare parts:
| Replaceable plates | Clamping screw | Allen key | Stem screw | Allen key |
|---|---|---|---|---|
| TPKN 2204, TPKR 2204 | SGM8x18 | WR04S |
