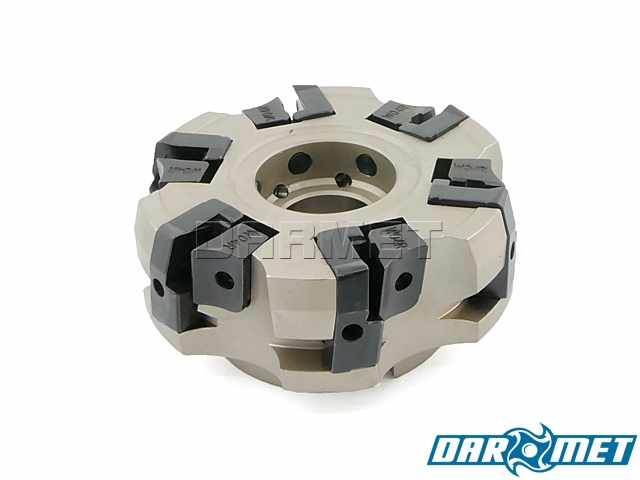

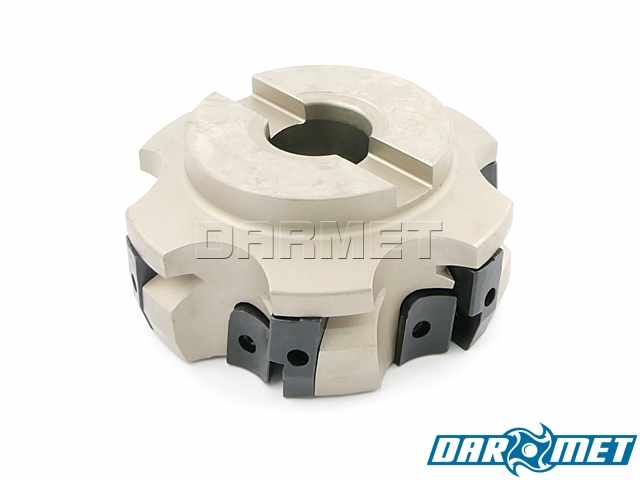

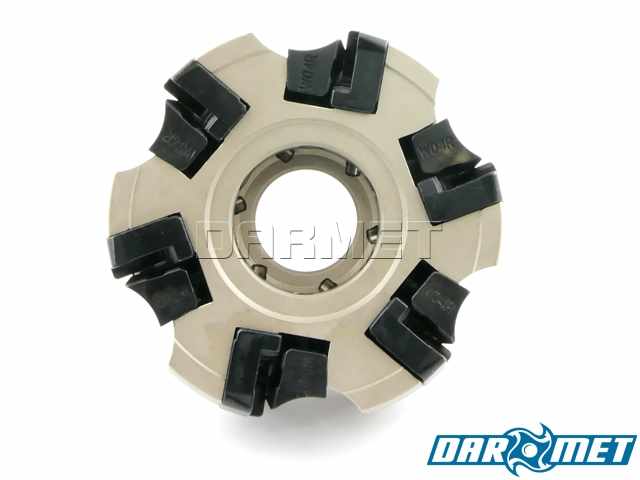

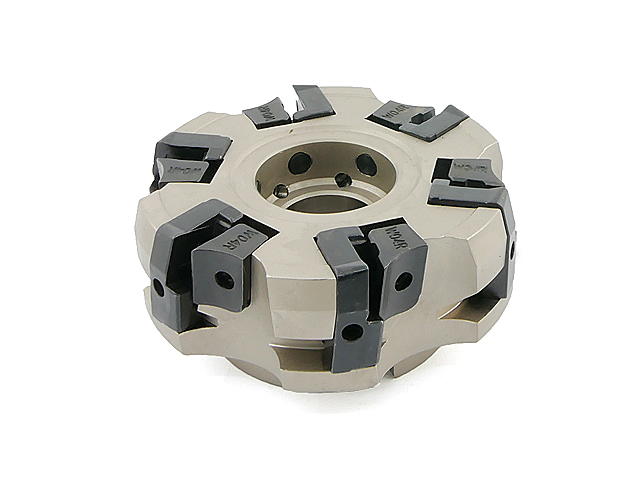

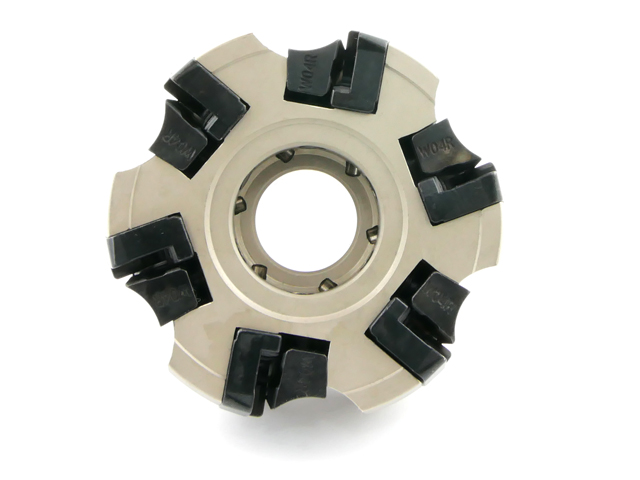

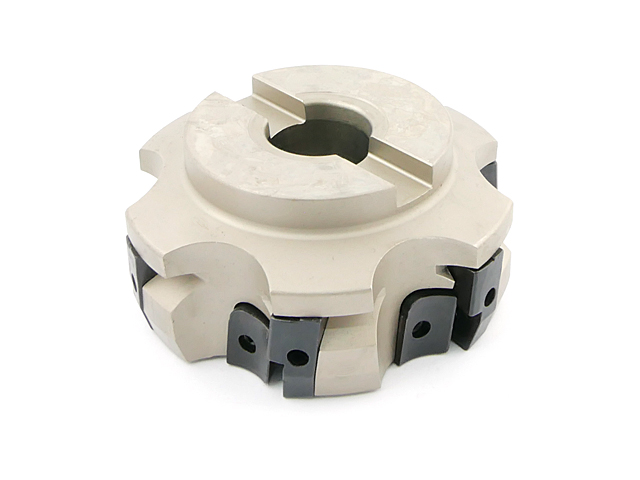

Inserted indexable milling cutter 100 mm, cylindrical-face | 6-flute - SPKN, SPKR (FB75SP15)
Availability:
wycofany z oferty
Gross price:
$101.99
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$82.92
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
FB75SP15-100-27B06
Description
Features and application:
- Folding shell end mill FB75SP15.
- Milling head with interchangeable indexable inserts, which enable machining in various materials, depending on the mounted blades.
- Cutting inserts with 4 cutting edges: SPKN, SPKR.
- The head is tightened with an Allen screw in a 27 mm diameter milling arbor.
- For use in conventional and CNC machine tools.
- The blades are sold separately in single pieces.
- The set includes: milling head and key.
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| Symbol | FB75SP15-100-27B06 | |
| D | 100 | mm |
| D1 | 104 | mm |
| D2 | 70 | mm |
| d | 27 | mm |
| apmax | 8 | mm |
| H | 50 | mm |
| Number of inserts | 6 |
Spare parts:
| Indexable inserts | Clamping clamp | Allen key | Clamping screw | Clamping screw |
|---|---|---|---|---|
| SPKN, SPKR 1504 | W04 | WR03S | SGW8x17 | M5x15 |
