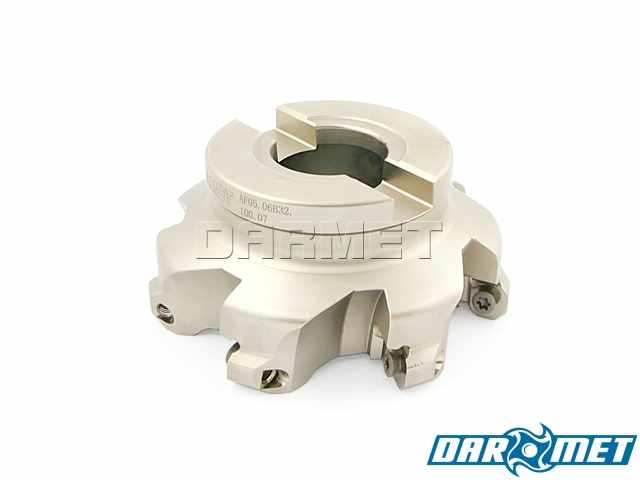

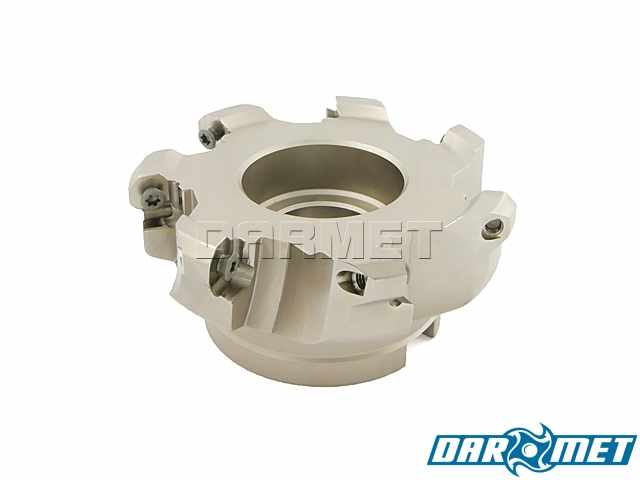

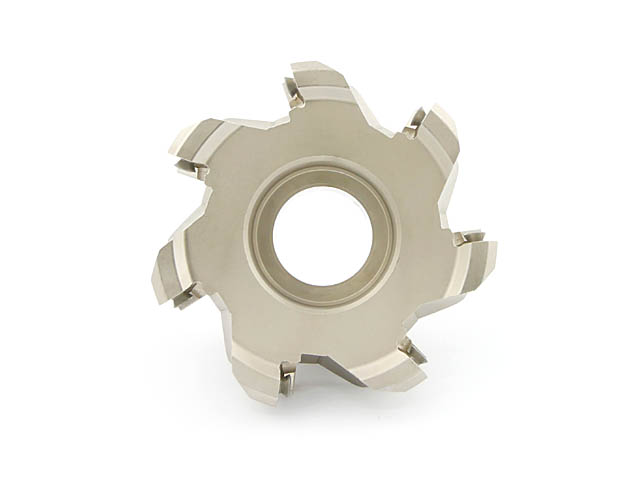

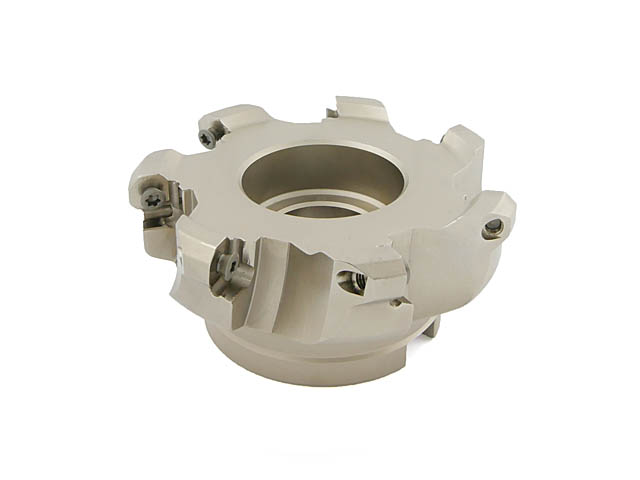

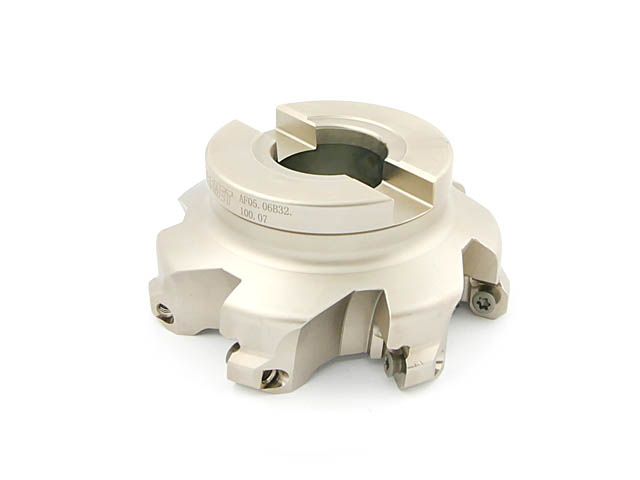

Inserted indexable milling cutter 100 mm, cylindrical-face | 7-flute - ODMT (FD45OD06-AF05)
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$173.36
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$140.94
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
FD45OD06-100-32B07
Description
Features and application:
- Indexable shell end mill FD45OD06.
- Milling head for interchangeable indexable inserts, which enable machining in different materials, depending on the blades installed.
- Cutting inserts with 4 cutting edges: ODMT, ODMW.
- The head is tightened with a cross-head screw in the milling arbor with a diameter of 32 mm.
- For use in conventional and CNC machine tools.
- Blades are sold separately in single pieces.
- The set includes: milling head and key.
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| Symbol | FD45OD06-100-32B07 | |
| D | 100 | mm |
| D1 | 110 | mm |
| D2 | 70 | mm |
| d | 32 | mm |
| apmax | 10 | mm |
| H | 50 | mm |
| Number of plates | 7 |
Spare parts:
| Replaceable plates | Clamping screw | Torx key |
|---|---|---|
| ODMT, ODMW | SGT5x12 | WR20T |
