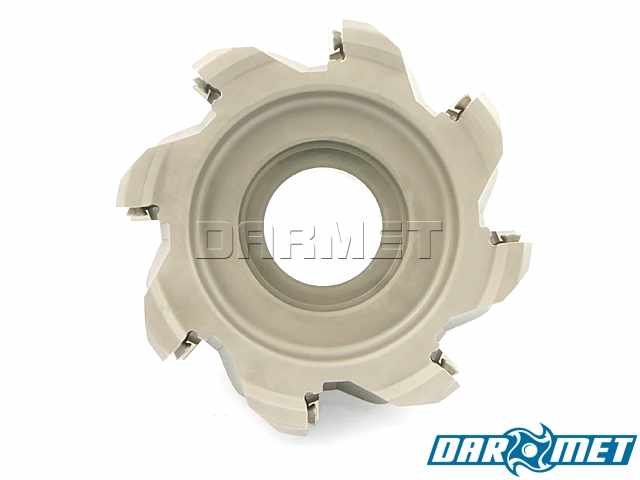

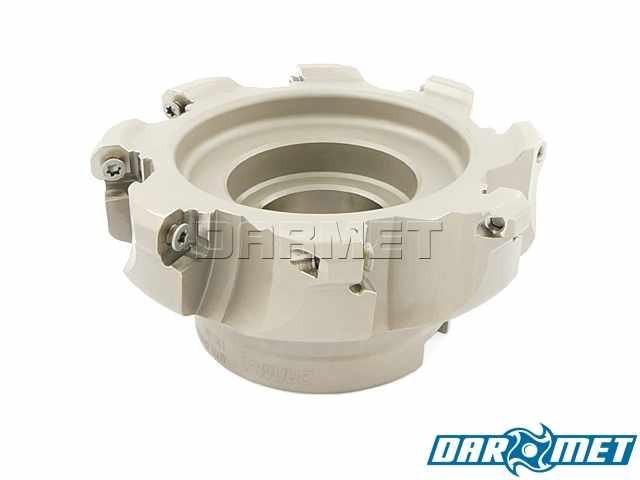

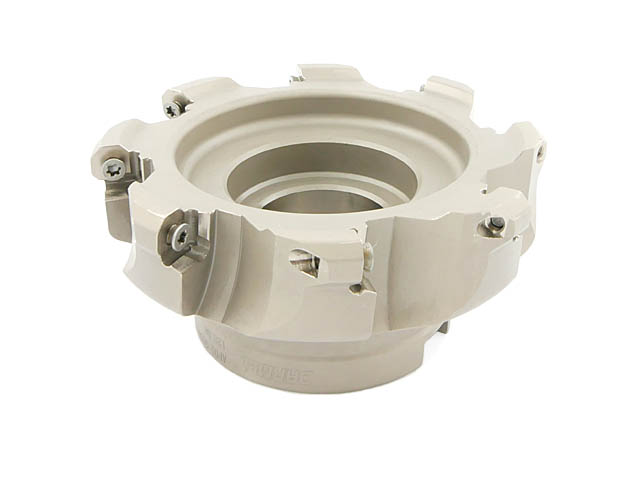

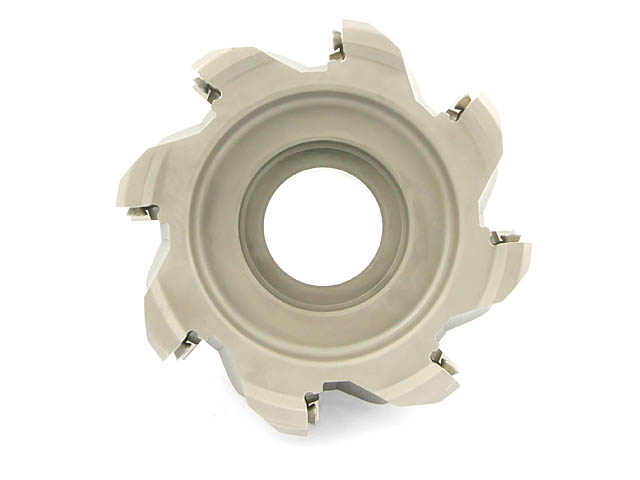

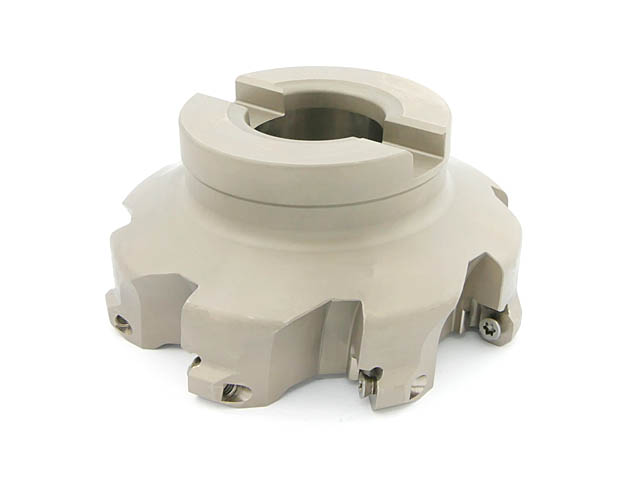

Inserted indexable milling cutter 125 mm, cylindrical-face | 8-flute - ODMT (FD45OD06-AF05)
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$217.81
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$177.08
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
FD45OD06-125-40B08
Description
Features and application:
- Folding shell end mill FD45OD06.
- Milling head for interchangeable indexable inserts, thanks to which it is possible to process in various materials, depending on the mounted blades.
- Cutting inserts with 4 cutting edges: ODMT, ODMW.
- The head is tightened with a cross-head screw in a 40 mm diameter milling arbor.
- For use in conventional and CNC machine tools.
- The blades are sold separately in single pieces.
- The set includes: milling head and key.
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| Symbol | FD45OD06-125-40B08 | |
| D | 125 | mm |
| D1 | 135 | mm |
| D2 | 80 | mm |
| d | 40 | mm |
| apmax | 10 | mm |
| H | 63 | mm |
| Number of inserts | 8 |
Spare parts:
| Replacement inserts | Screw clamping | Torx key |
|---|---|---|
| ODMT, ODMW | SGT5x12 | WR20T |
