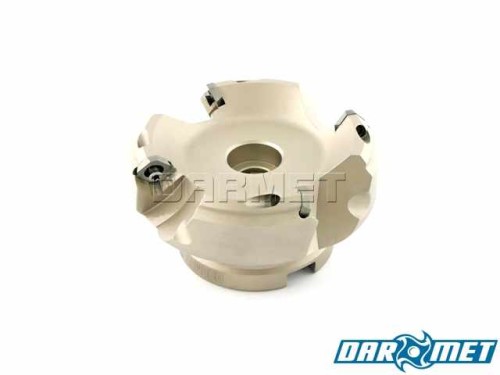

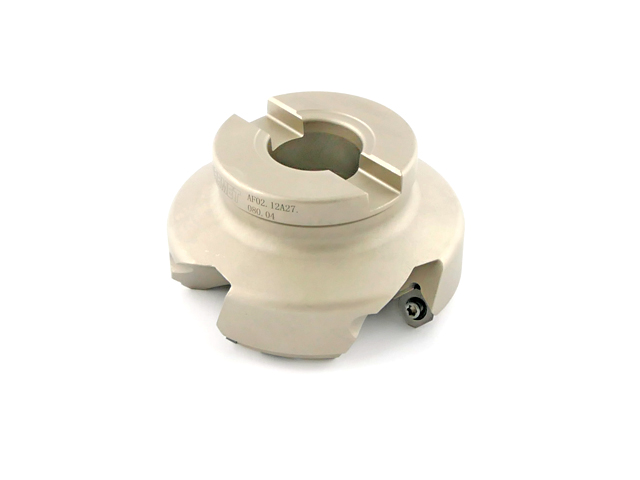

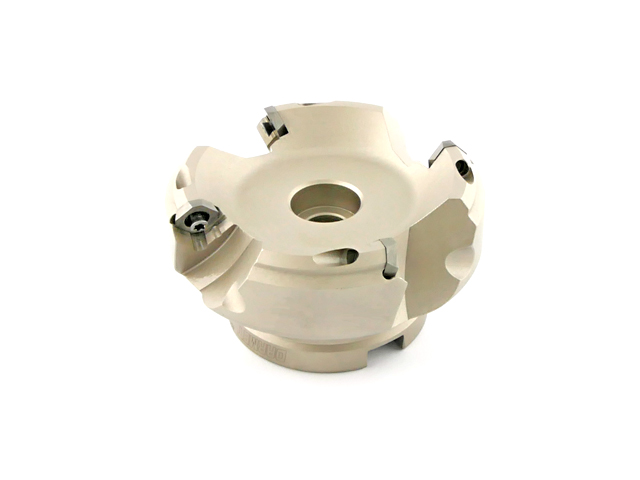

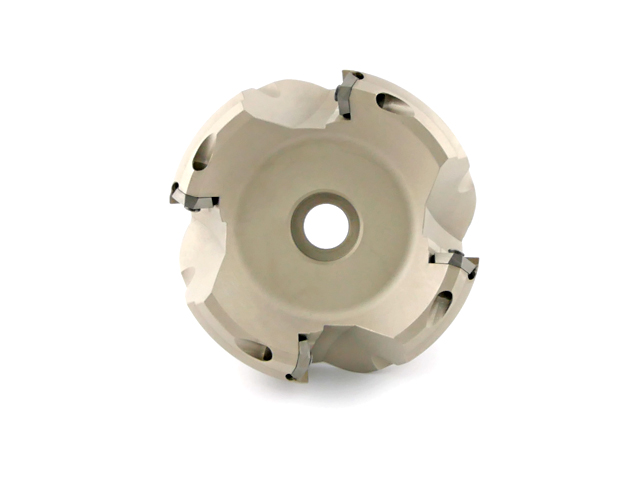

Inserted indexable milling cutter 80 mm, cylindrical-face | 4-flute - SEKT (FD45SE12-AF02)
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$60.74
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$49.38
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
FD45SE12-080-27A04
Description
Features and application:
- Indexable end milling cutter FD45SE12-AF01.
- Milling head with interchangeable indexable inserts, which enable machining in various materials, depending on the blades installed.
- Cutting inserts with 4 cutting edges: SEKT.
- The head is tightened with an Allen screw in a milling arbor with a mounting diameter of 27 mm.
- For use in conventional and CNC machine tools.
- The blades are sold separately in single pieces.
- The set includes: milling head and key.
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| Symbol | FD45SE12-080-27A04 | |
| D | 80 | mm |
| D1 | 92.4 | mm |
| D2 | 60 | mm |
| d | 27 | mm |
| apmax | 6 | mm |
| H | 50 | mm |
| Number of inserts | 4 |
Spare parts:
| Replacement inserts | Support plate | Torx key | Allen key | Clamping screw | Allen screw |
|---|---|---|---|---|---|
| SEKT 12T3 | SHS13 | WR15T | WR03,5S | SSSM3,5X10 | SM0508 |
