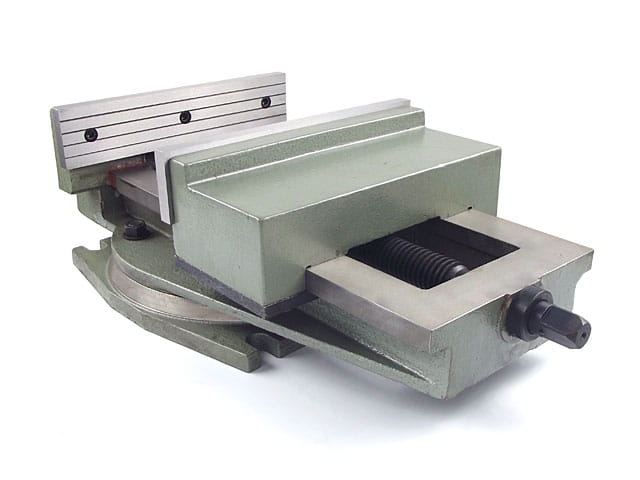

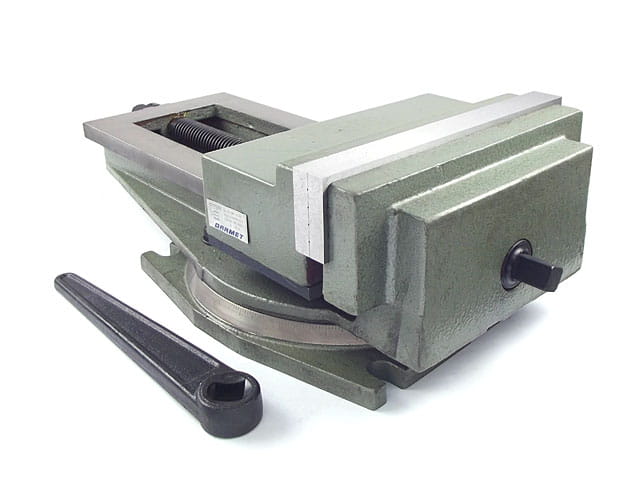

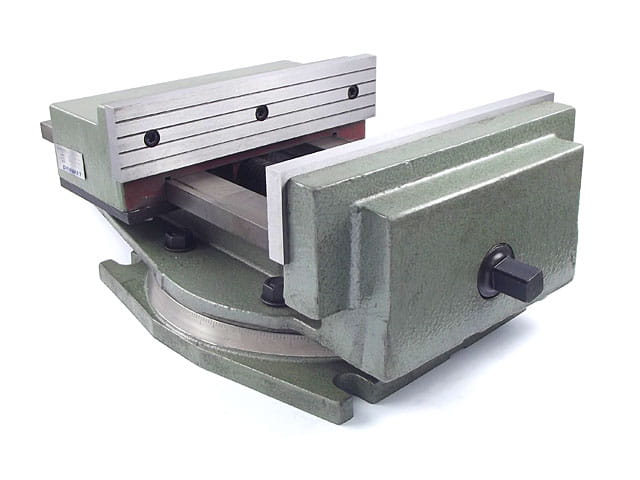

Large rotary machine vise 320x360 mm FQA DARMET
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Information:
✔️ Clamping device for heavy work on standard machining machines such as milling machines and drilling machines.
✔️ High-quality cast iron castings paired with appropriate vise construction provide the user with a tool of satisfactory strength parameters, resistant to great forces arising from cutting, feeds, impacts, and other mechanical actions.
✔️ Like every properly made vise, it can also be mounted on a working table, e.g., with T-slots, using a mounting elements set.
✔️ Jaw inserts are replaceable; however, mechanical processing of their working surface is necessary to achieve the accuracy parameters specified in the technical documentation.
✔️ When dealing with such large and heavy machines, the supplied keys should not be forgotten, which initially lock the vise position in the T-slots before final proper mounting.
✔️ The rotary base allows full 360° rotation of the tool around the axis. The rotary table does not destabilize the mounting quality but is removable for operator convenience.

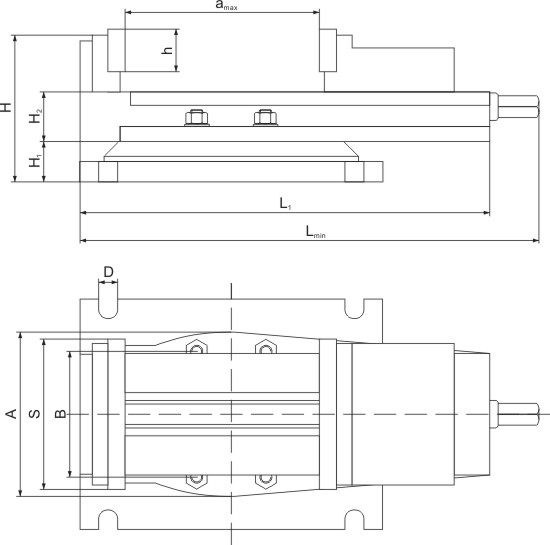

Specification:
| Parameter | Value |
|---|---|
| S | 320 mm |
| amax | 350 mm |
| h | 81 mm |
| H1 | 42 mm |
| H2 | 84 mm |
| H | 205 mm |
| A | 355 mm |
| Lmin | 680 mm |
| L1 | 580 mm |
| D | 22 mm |
| B | 238 mm |
| Positioning key | 22 mm |
| Weight | 84 kg |
