Locking Nut for ER25 Collets | Mini Type
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$8.13
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$6.61
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_AKC_NAK_ER25_M
Description
Features and application:

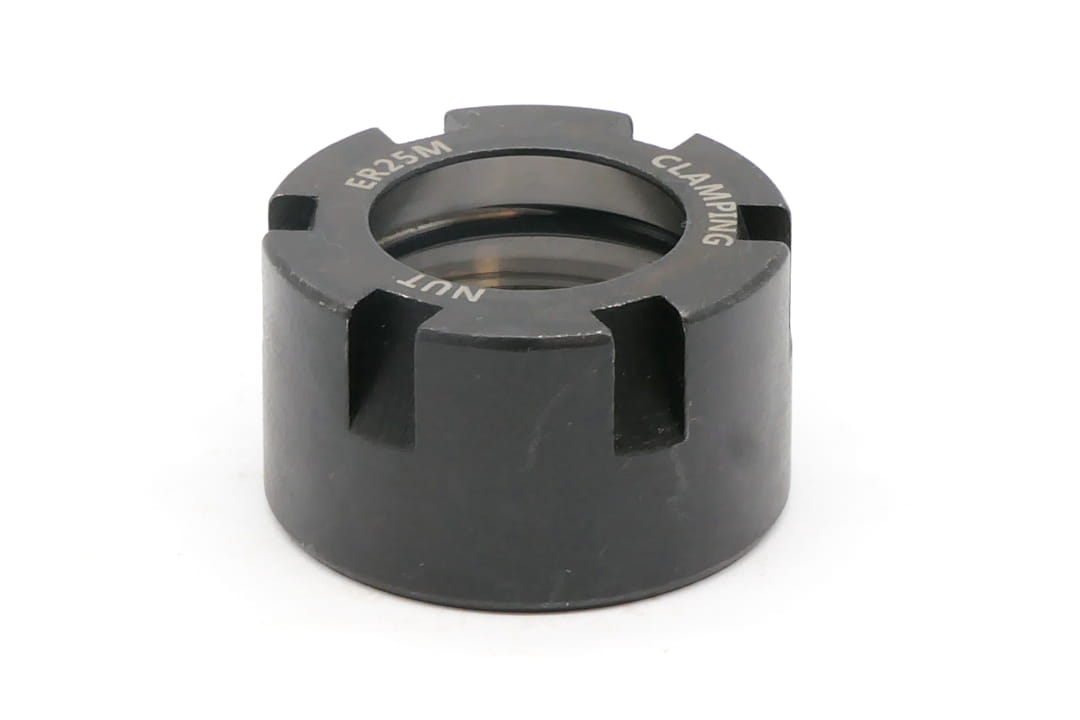

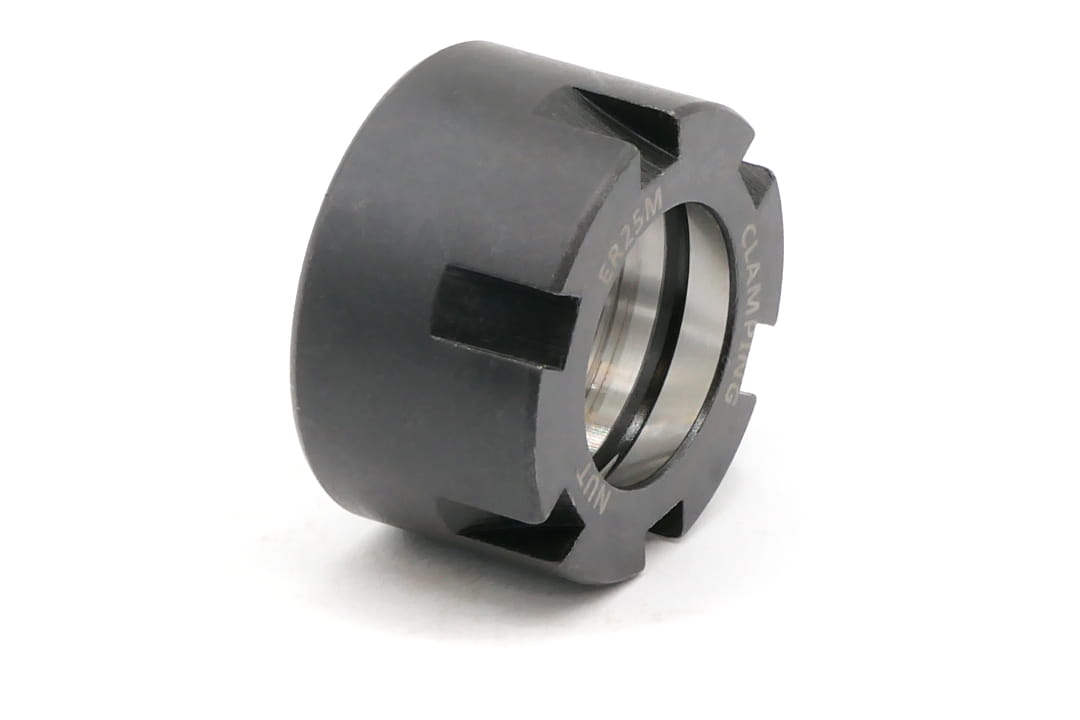

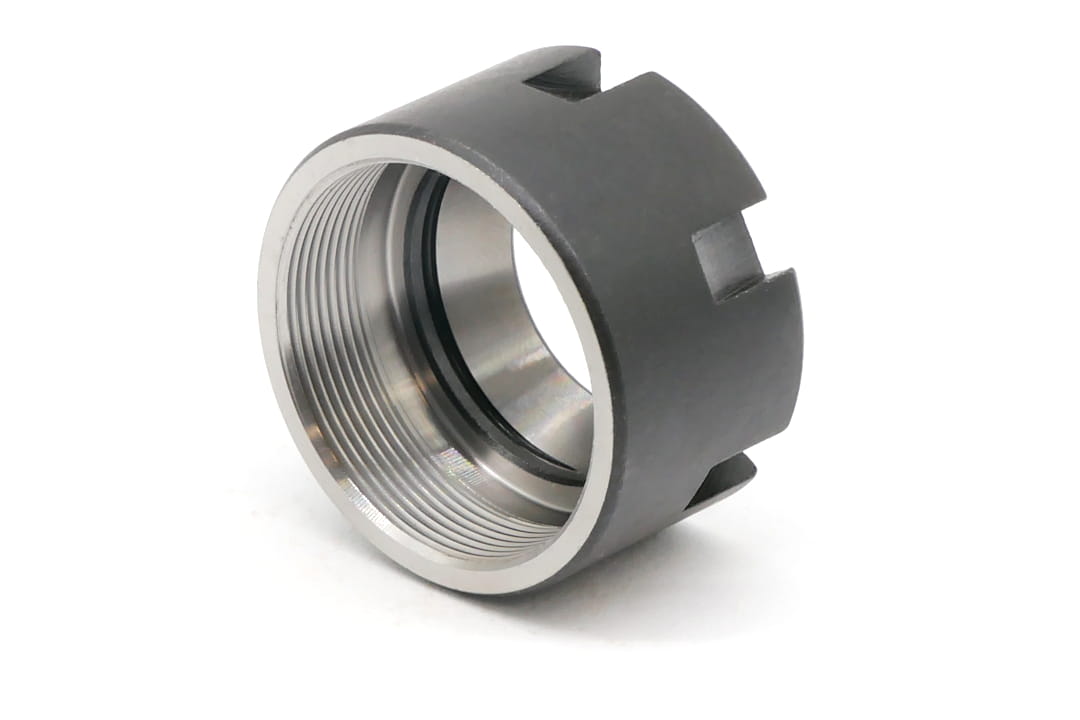

- ER Mini nut for ER25 collets.
- Tightening is only possible with ER25 Mini key.
- Made of high-quality steel.
- Designed for collets used with ER DIN 6499 collets.
- Before mounting in the collet, the collet must be inserted into the nut.
- Replacement nut ER25 Mini from APX.

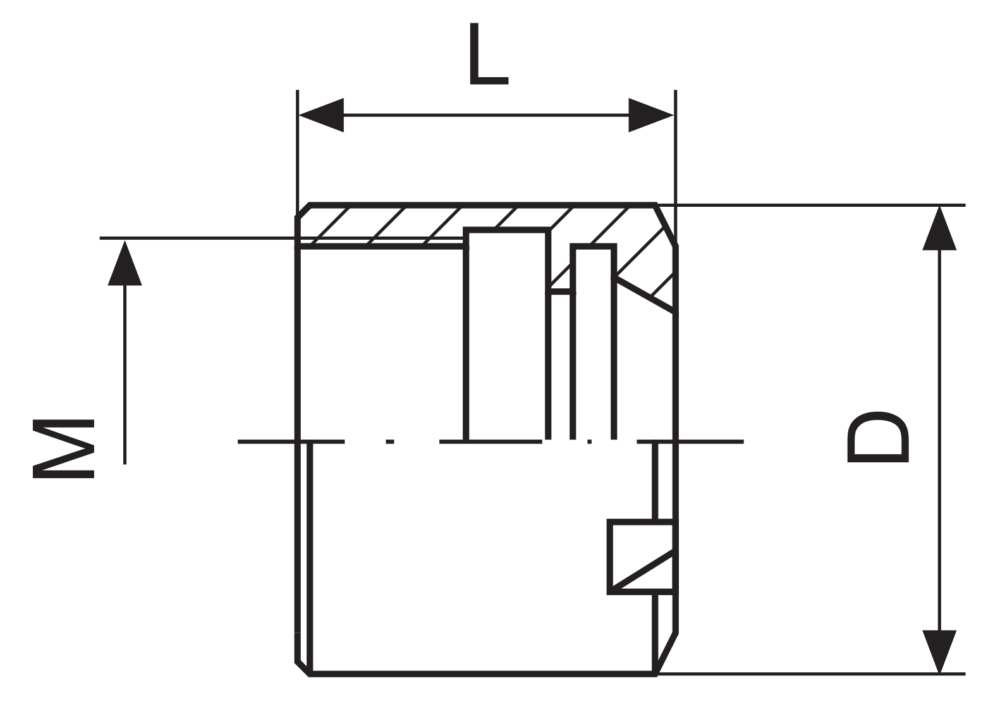

Technical data:
| Parameter | Value |
|---|---|
| Collet type | ER25 |
| D | 35 mm |
| L | 20 mm |
| M | M30 x 1.0 |
Installation of sleeves in nuts:
|
|
||
|
Installing the collet in the holder nut |
Collet correctly mounted | Dismounting the collet |
To correctly mount the ER collet in the holder:
- Insert the collet at an angle into the nut.
- Hook the collet's groove onto the eccentric or cylindrical protrusion of the nut (fig. A).
- Press the collet into the nut (fig. B).
- Screw the nut with the pressed-in sleeve onto the holder so that the tool being processed can be clamped.
