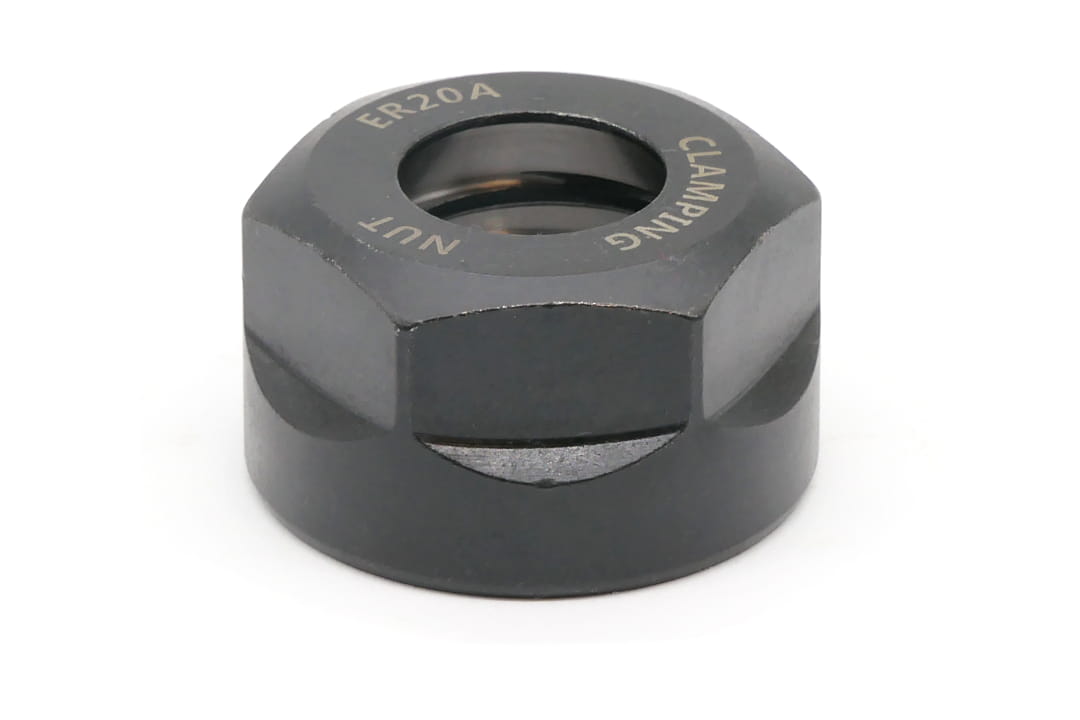

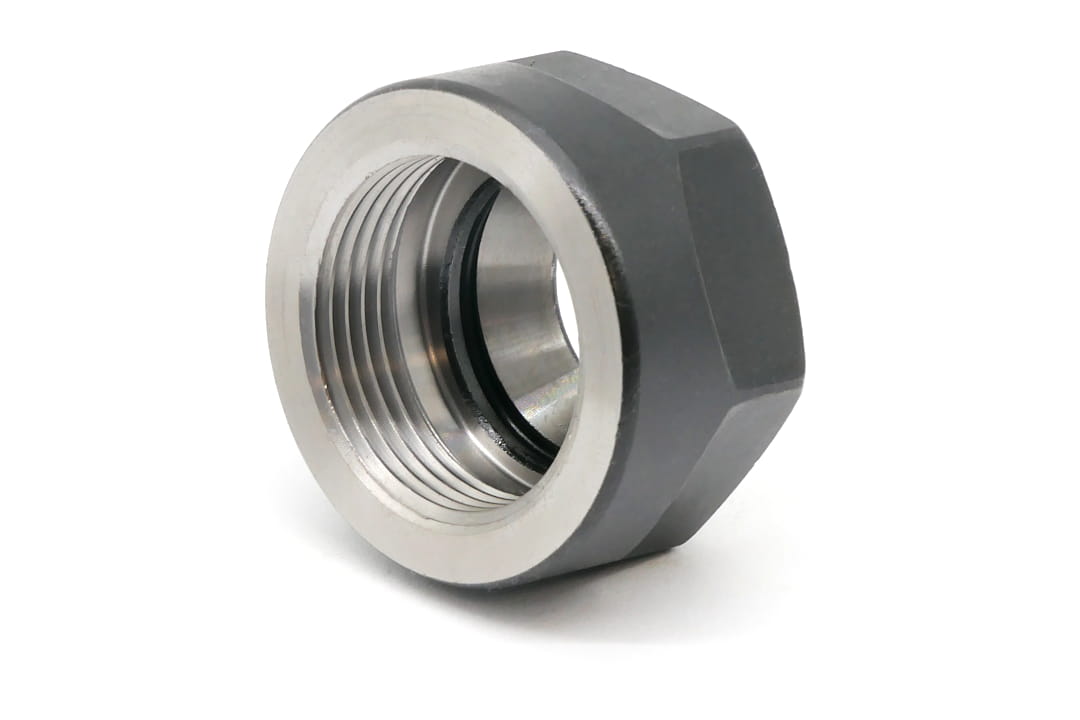

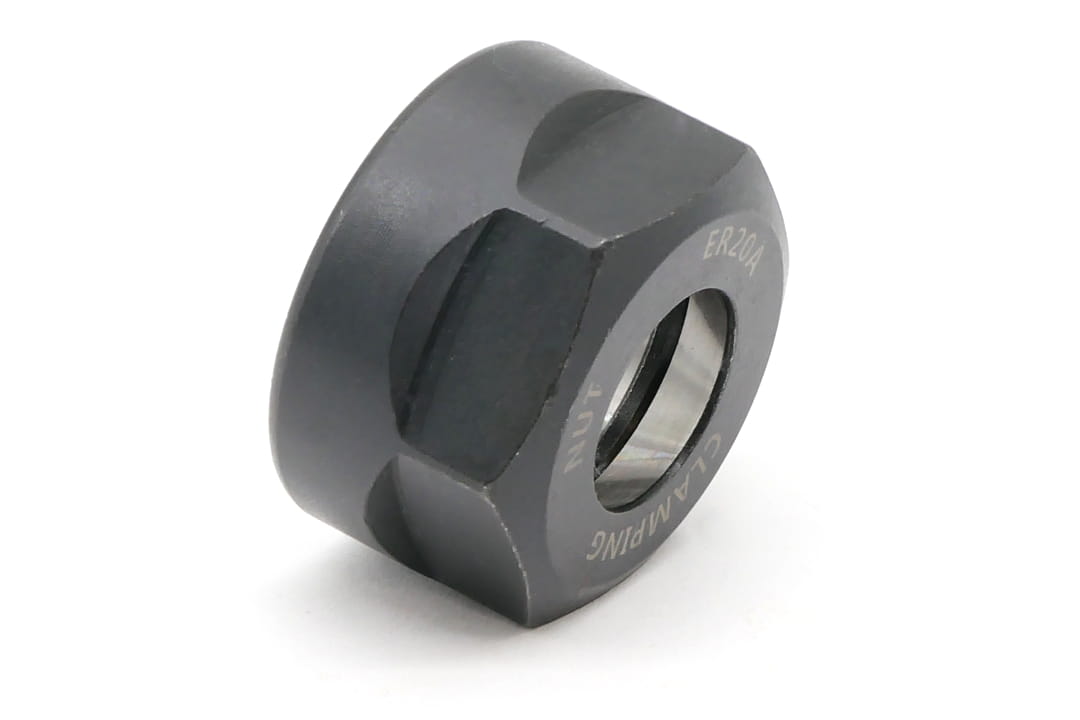

Locking nut for ER20 collets | Type T1 hexagonal (DM 072)
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$7.79
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$6.34
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_AKC_NAK_ER20_T1
Description
Features and application:
- Made of high-quality steel.
- Designed for holders used with ER DIN 6499 collets.
- Before mounting in the holder, the collet must be inserted into the nut.
- Hexagonal nut for a 30 mm open-end wrench.
Technical data:
| Parameter | Value |
|---|---|
| D | 34 mm |
| L | 19 mm |
| M | M25 x 1.5 mm |
| Weight | 0.05 kg |
Installation of sleeves in nuts:
|
| ||
| Installing the collet in the collet nut | Collet correctly mounted | Dismounting the collet |
To correctly mount the ER collet in the collet:
- Insert the collet at an angle into the nut.
- Hook the collet's groove onto the eccentric or cylindrical projection of the nut (Fig. A).
- Press the collet into the nuts (Fig. B).
- Screw the nut with the pressed-in sleeve onto the holder so that the tool being processed can be secured.
