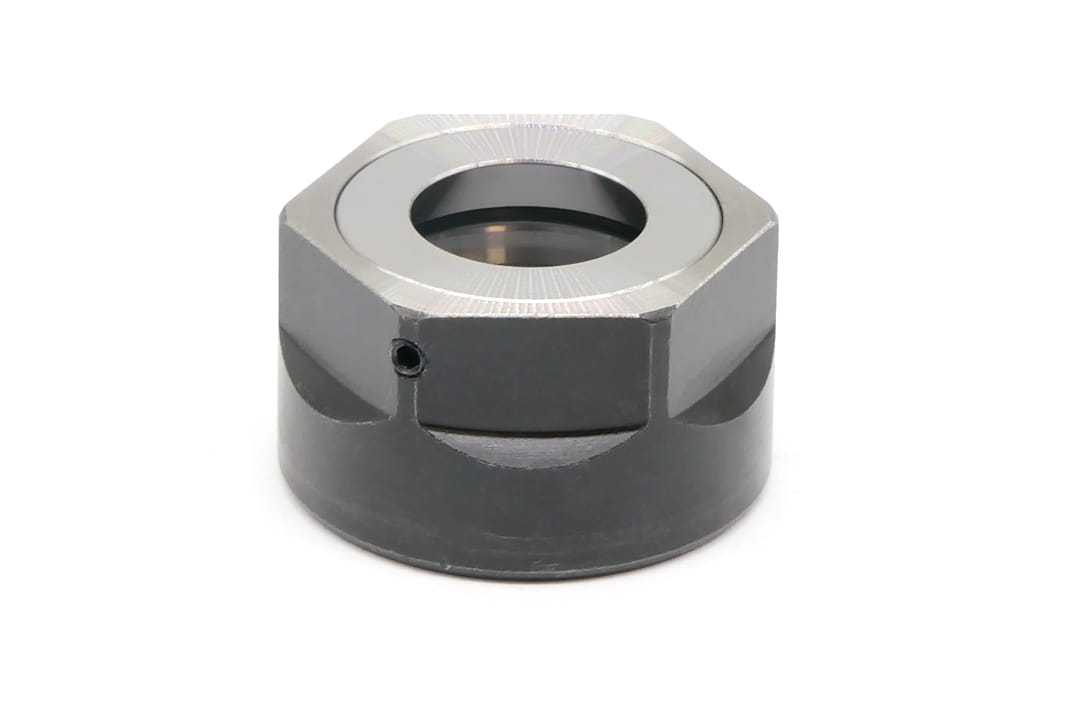

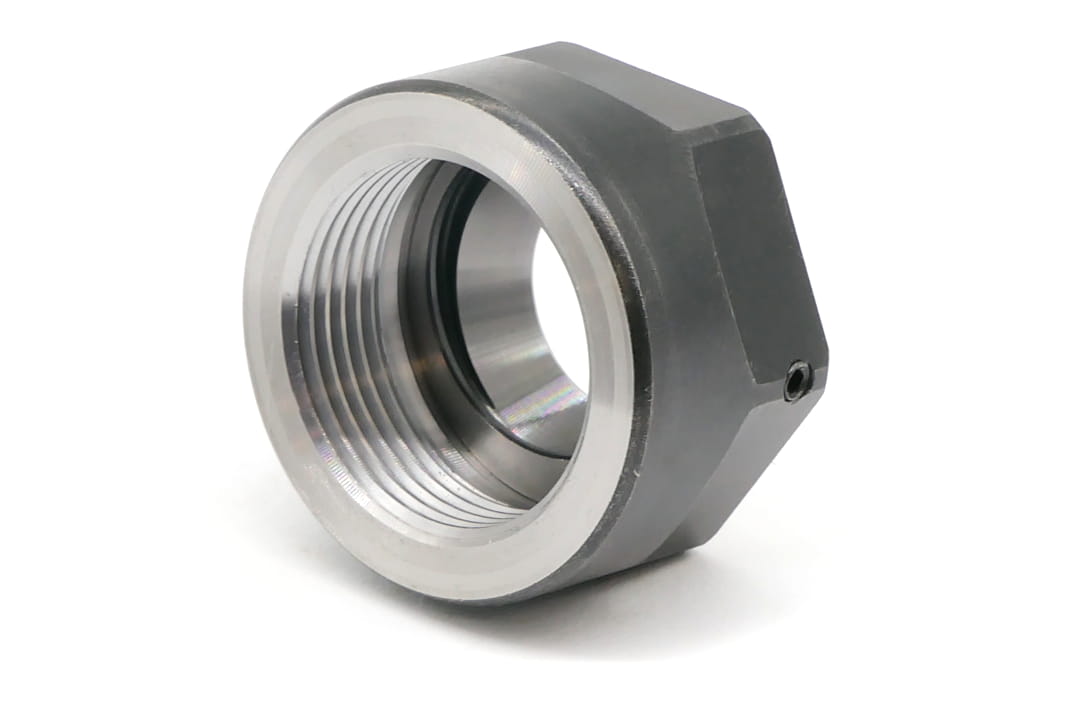

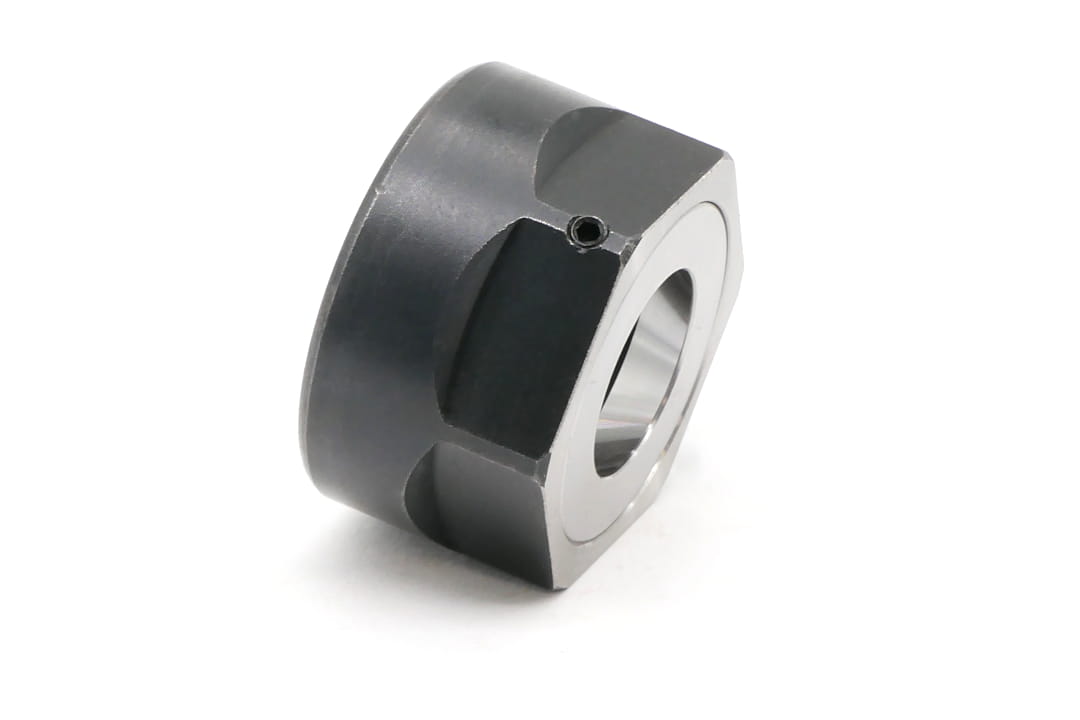

Locking nut with bearing for ER20 collets | Type A hexagonal - DARMET (DM 072)
Availability:
brak towaru
Gross price:
$16.20
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$13.17
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_AKC_NAK_ER20_A
Description
Features and application:
- Clamping nut with a plain ball bearing.
- The bearing is secured by a 1.5mm Allen screw.
- Made of high-quality steel.
- Designed for holders used with ER20 DIN 6499 collets.
- Before mounting in the holder, the collet must be inserted into the nut.
- Tightening and loosening using an open-end wrench. 30 mm.
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| D | 34 | mm |
| L | 19 | mm |
| M | M25 x 1.5 | |
| Weight | 0.05 | kg |
Installation of sleeves in nuts:
|
|
||
|
Mounting the collet in the collet nut |
The collet is correctly mounted | Dismounting the collet |
To properly mount the ER collet in the collet:
- Insert the collet at an angle into the nut.
- Hook the collet channel onto the eccentric or cylindrical projection of the nut (Fig. A).
- Press the collet into the nuts (Fig. B).
- Screw the nut with the pressed-in sleeve onto the holder so that the tool being processed can be mounted.
