Milling insert SPKN 1203 EDTR DS5441 - DARMET
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Information:

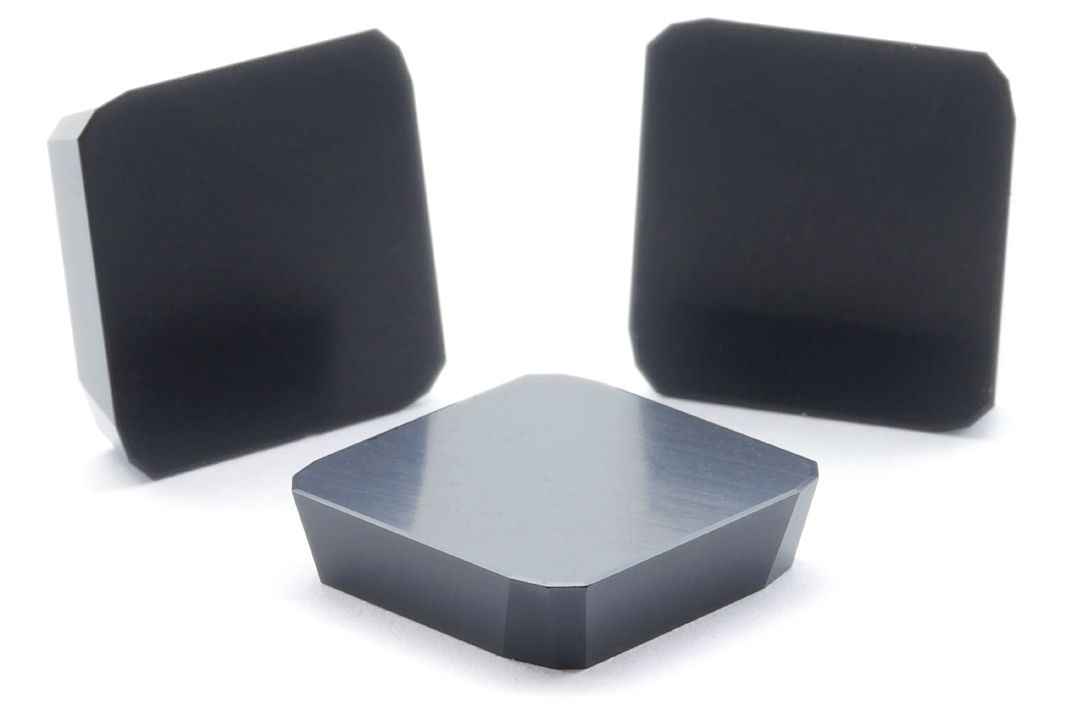

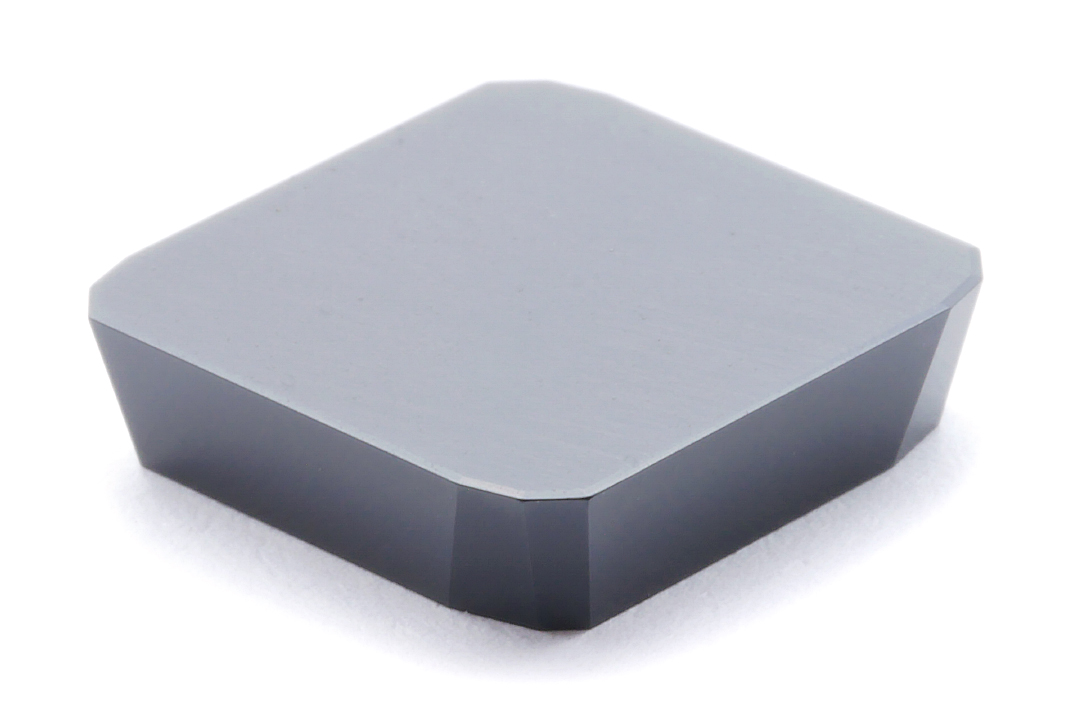

- SPKN 1203 cutting insert for milling heads made of cemented carbide DS5441.
- 75° milling
- For medium machining of steel and stainless steel
- Insert designed for face milling
- Cutting direction: right
- The SPKN 1203 insert fits indexable cutters and milling heads:
- R626.61-080 - PAFANA
- R626.62-100 - PAFANA
- R626.62-125 - PAFANA
- R626.62-160 - PAFANA
- 220.27 - 050 - DOLFAMEX
- 220.27 - 063 - DOLFAMEX
- 220.27 - 080 - DOLFAMEX
- R257.1 - 080 - 10 - DOLFAMEX
- R257.1 - 100 - 10 - DOLFAMEX
- R257.1 - 125 - 10 - DOLFAMEX
- R257.1 - 160 - 10 - DOLFAMEX
- R257.1 - 200 - 10 - DOLFAMEX
- R257.1 - 250 - 10 - DOLFAMEX
- FC75SP12-080-4-27-1 - DARMET
- FC75SP12-100-6-27-2 - DARMET
- 216.17 - 4032.2 - DOLFAMEX
- 216.17 - 3028.2 - DOLFAMEX
- 216.17 - 2528.3 - DOLFAMEX
- The price is forone insert!!!
Technical specifications:
| Parameter | Value |
|---|---|
| Designation | SPKN 1203 EDTR DS5441 |
| L | 12.7 mm |
| I.C | 12.7 mm |
| S | 3.18 mm |
| bs (d) | 1.4 mm |
| be (r) | 1.0 mm |
| Insert inclination angle ( α) | 11° |
Cutting parameters:
| Material | Vc (m/min) | fz (mm) | ap (mm) | |
|---|---|---|---|---|
| P | steel | 180 (160-200) | 3.0 (2.0-5.0) | 0,2 (0,1-0,4) |
| M | stainless steel | |||
