Modular Precision Split Vise 100 mm FPZ Module III DARMET
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Information:

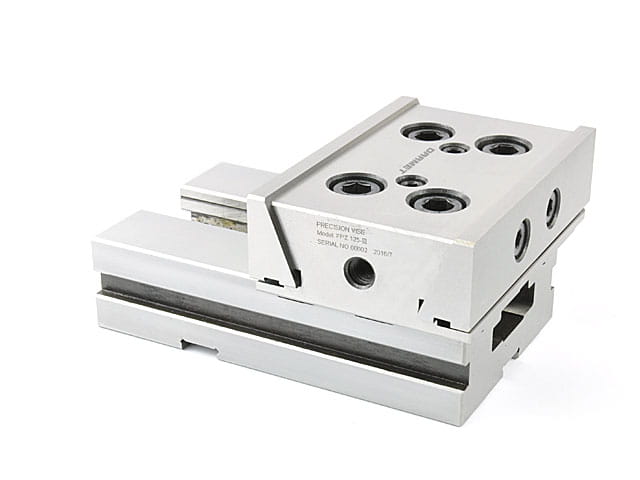

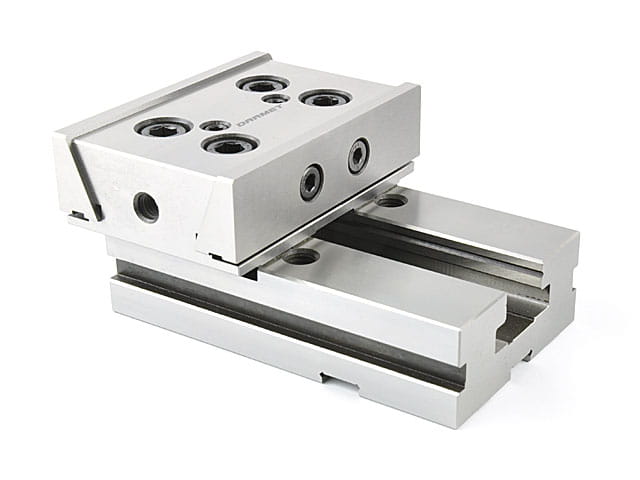

- Modular machine vise 3 equipped with a single fixed jaw with inserts on both sides.
- High accuracy of manufacture allows the vises to be used in a set to position large, irregularly shaped elements. Maximum base deviation ±0.01 mm.
- On both sides of the body along its entire length there are channels for mounting the vice with clamping claws.
- Replaceable jaw inserts ensure universal operation with the clamping tool, depending on the model of the insert fitted, it is possible to mount appropriate elements (even rollers).
- On the bottom of the bed there are grooves for setting stones for setting the tool in tables with T-slots.
- Precision separating device made of alloy steel for use in numerical machines for all operations requiring almost perfect dimensions.
- The special design of the sockets from the inserts presses the details downwards against the body.
- The set includes necessary accessories for mounting and proper operation of the vice.

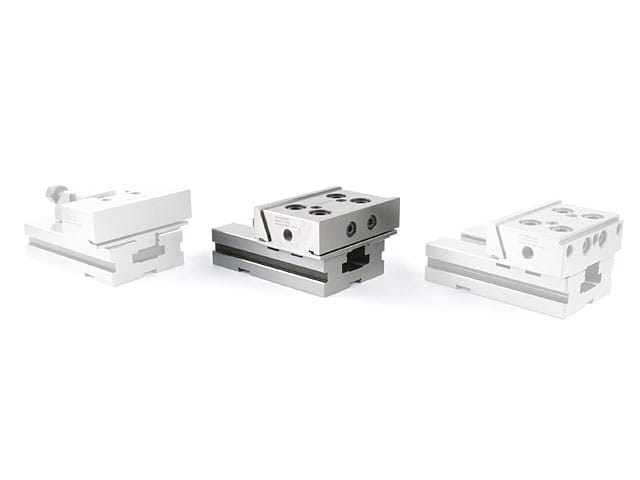

- The entire family of FPZ machine vice models (FPZ, FPZB, FPZV, FPZD) allows you to work together as a team to position large, irregularly shaped elements.
- Further modules also available in our offer:
Specification:
| Parameter | Value |
|---|---|
| S | 100 mm |
| h | 30 mm |
| L | 140 mm |
| H | 63 mm |
| A | 75 mm |
| H1 | 35±0.01 mm |
| d | 16 mm |
| Weight | 5.2 kg |
Examples of vice assembly assembly:
DARMET modular vises allow for perfect clamping of even large workpieces requiring the heaviest equipment using a machining table as a surface. Modular vises are the ideal solution for a variety of applications and an excellent complement or alternative to single or double vises. The structure is made of hardened and ground steel. Allows for maximum machine efficiency thanks to:
- increased clamping power of the workpiece,
- complete elimination of vibrations,
- higher work accuracy.
Modular elements are standard parts of the vice: a moving part and a fixed part, as a result ensuring, completely independently, increased versatility of use. The modular design allows for a wide range of setting combinations and solutions.
Vise accuracy:
