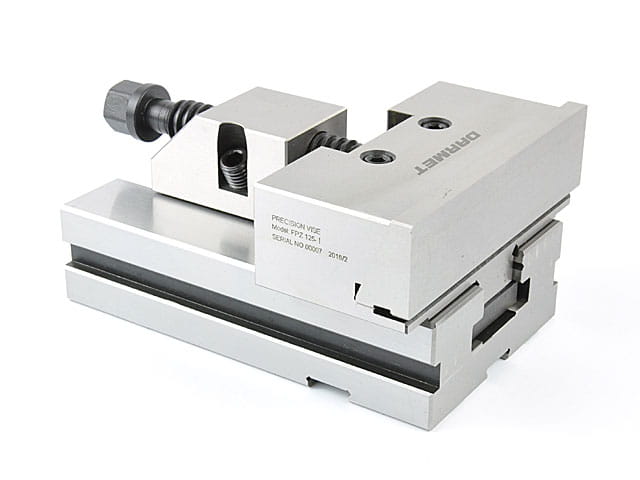

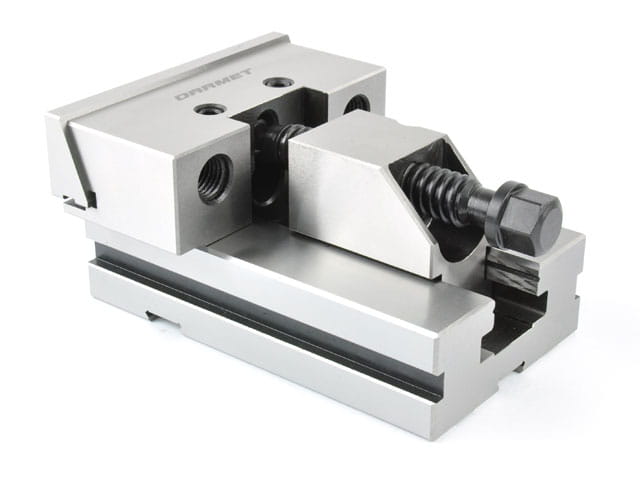

Modular Precision Split Vise 125 mm FPZ Module I DARMET
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Information:
- Modular machine vise 1 equipped with a single movable jaw.
- High accuracy of manufacture allows the vises to be used in a set to position large, irregularly shaped elements. Maximum base deviation ±0.01 mm.
- On both sides of the body along its entire length there are channels for mounting the vice with clamping claws.
- The jaw movement on the bed is perfectly balanced, free feed with imperceptible play.
- Replaceable jaw inserts ensure the versatility of the tool Depending on the type of insert fitted, it is possible to mount appropriate elements (even rollers).
- On the bottom of the bed there are grooves for locating stones to set the tool in tables with T-slots.
- The jaw holder is responsible for its locking position and, as a quick-clamping system, allows for immediate change of jaw position without time-consuming turning crank.
- Precision separable device made of alloy steel for use in numerical machines for all operations requiring almost perfect dimensions.
- The special design of the sockets from the inserts presses the details downwards against the body.
- The set includes necessary accessories for mounting and proper operation of the vice.
- The entire family of FPZ machine vice models (FPZ, FPZB, FPZV, FPZD) allows you to work together as a team to position large, irregularly shaped elements.
- Further modules also available in our offer:
Specification:
| Parameter | Value |
|---|---|
| S | 125 mm |
| h | 40 mm |
| L | 160 mm |
| H | 78 mm |
| A | 95 mm |
| H1 | 40±0.01 mm |
| d | 16 mm |
| Weight | 7 kg |

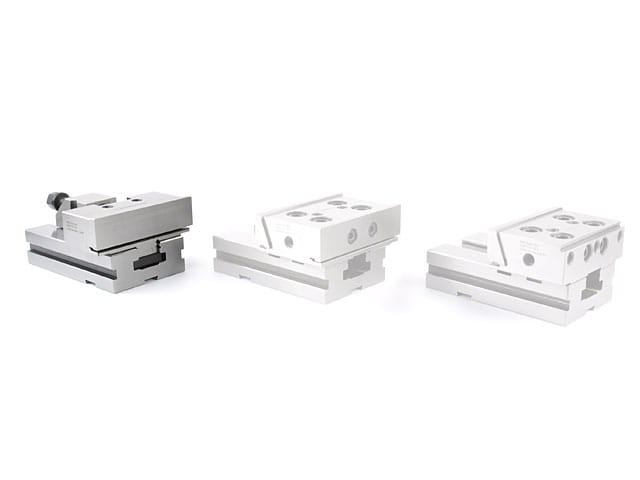

Assembly examples vice:
DARMET modular vises allow for perfect clamping of even large workpieces requiring the heaviest equipment using a machining table as a surface. Modular vises are the ideal solution for a variety of applications and an excellent complement or alternative to single or double vises. The structure is made of hardened and ground steel. Allows for maximum machine efficiency thanks to:
- increased clamping power of the workpiece,
- complete elimination of vibrations,
- higher work accuracy.
Modular elements are standard parts of the vice: a moving part and a fixed part, as a result ensuring, completely independently, increased versatility of use. The modular design allows for a wide range of setting combinations and solutions.
Vise accuracy:
