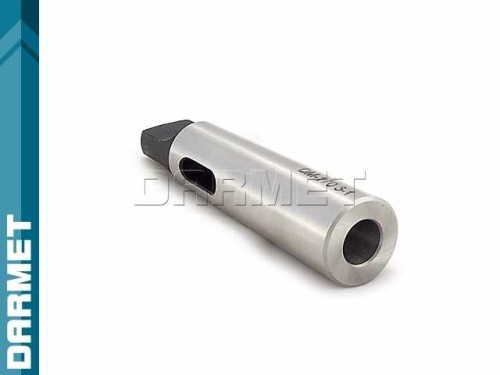

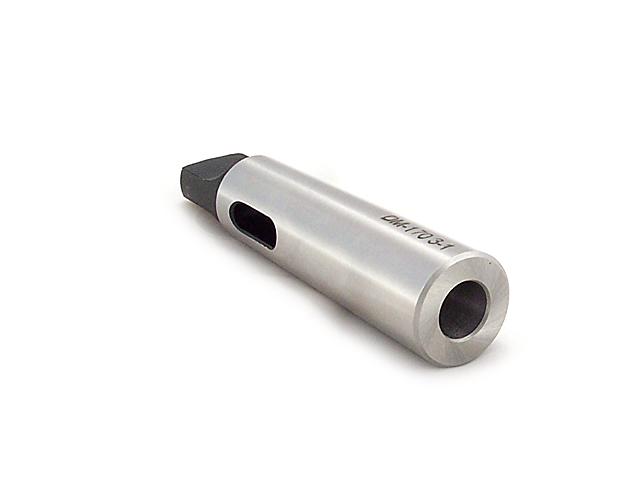

Morse PTP reducing bushing MK 3/1 - DARMET (DM-170)
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Information:
- Reduction sleeve designed for Morse taper tools with a fin.
- Sanded outer and inner taper.
- The fin at the end of the shank allows easy knockout of the tool with special drivers.
- The marking on the outside of the taper helps in quicker tooling selection.
- Sleeves are mainly used in column drills for mounting drills.
Specification:
| Parameter | Value | One. |
|---|---|---|
| K (Morse) | MK3 | |
| K1 (Morse) | MK1 | |
| D | 24,1 | mm |
| d | 12,065 | mm |
| L | 99 | mm |
| Tolerance | 0.015 | mm |
| Weight | 0,24 | kg |
Technical information according to DARMET: Morse shank (DIN228)
.
