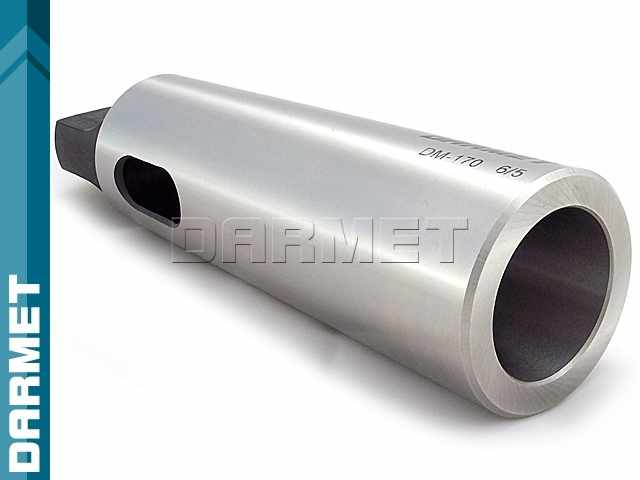

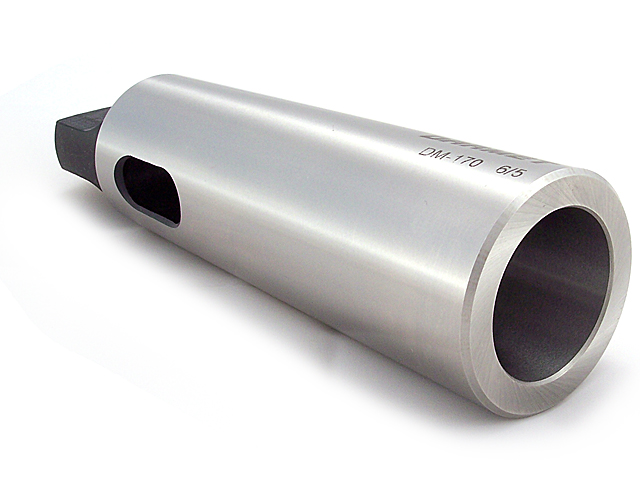

Morse PTP reducing bushing MK 6/5 - DARMET (DM-170)
Regular price:
Regular price:
product unavailable
add to wish list
Description
Information:
- Reduction sleeve designed for Morse taper tools with a fin.
- Sanded outer and inner taper.
- The fin at the end of the shank allows easy knockout of the tool with special drivers.
- The marking on the outside of the taper helps in faster tooling selection.
- Sleeves are mainly used in column drills for mounting drills.
Specification:

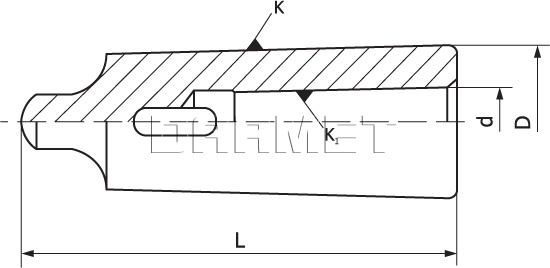

| Parameter | Value | One. |
|---|---|---|
| K (Morse) | MK6 | |
| K1 (Morse) | MK5 | |
| D | 63,8 mm | mm |
| d | 44,399 mm | mm |
| L | 218 mm | mm |
| Tolerance | 0.02 mm | mm |
| Weight | 1,95 kg | kg |
Technical information according to DARMET: Morse shank (DIN228)
.
