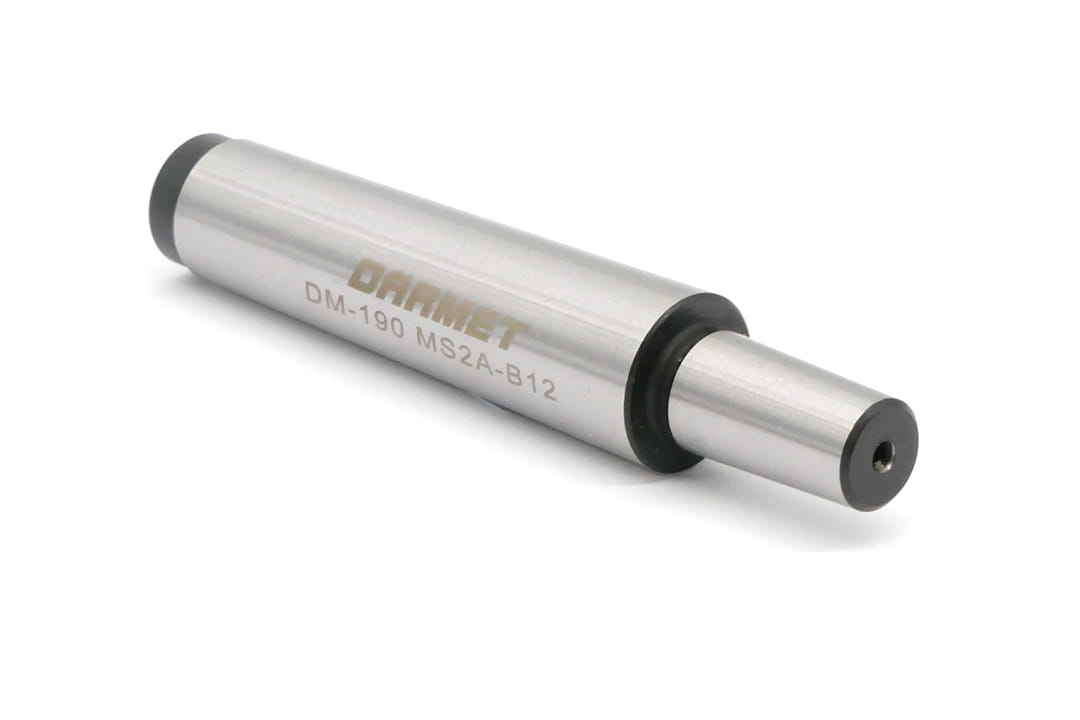

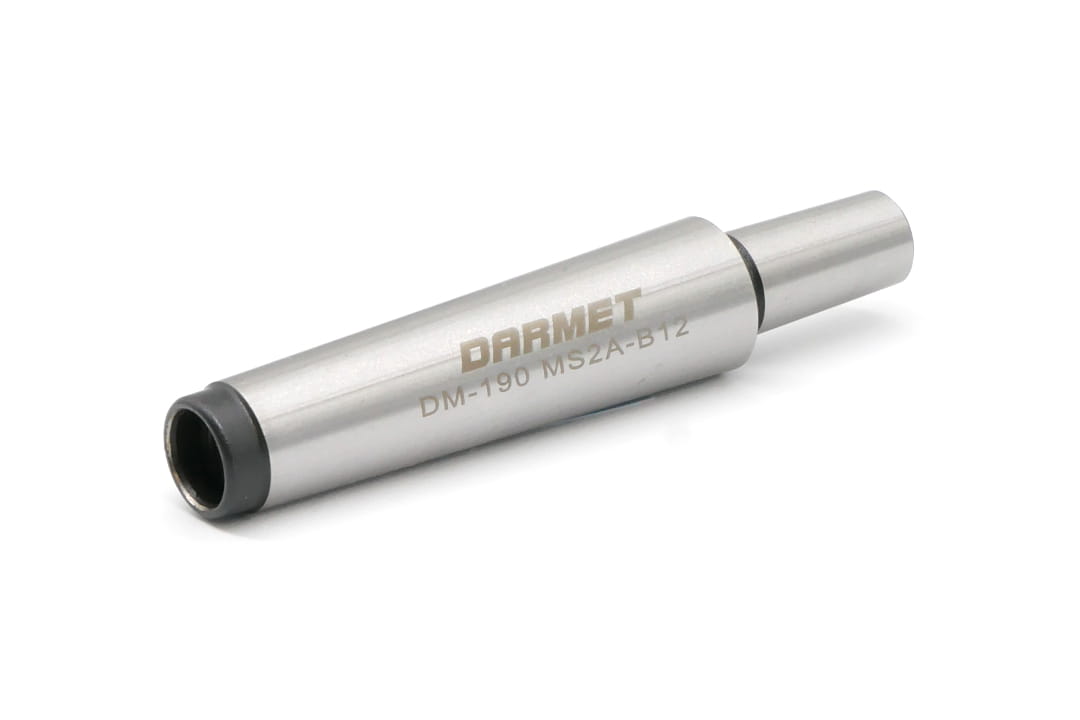

Morse arbor for drill chuck MK2/B12 - DARMET (DM-190)
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Information:
- Drill arbor with thread (DIN228-A) for drill chucks with internal taper according to DIN238.
- Used for clamping drill chucks with B12 taper.
- Used mainly in column drills, lathes and other machine tools.
- Tightening the fin enables clamping in spindles and sleeves with bean-shaped chucks.
Specification:
| Parameter | Value |
|---|---|
| K (Morse) | MS2 |
| K1 (DIN 238) | B12 |
| thread (M) | M10 |
| d | 12.065 mm |
| L | 94 mm |
| weight | 0.12 kg |
Technical information according to DARMET: Morse shank (DIN228)
