Non-spindle precise grinding control vise made of steel 26x22 mm SPZB DARMET

Availability: średnia ilość

Dispatched within: 24 hours

Delivery: The price does not include any possible payment costs check the delivery methods

Gross price: $47.92

incl. 23% TAX, excl. shipping costs

Regular price:

47.92

The lowest price during 30 days prior to the reduction:

Net price: $38.96

excl. 23% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

quantity szt.

You gain 17 points []

product unavailable

add to wish list

Rating:

Vendor:

Product code: DM_IM_SPZB_26_22

Description

Information:

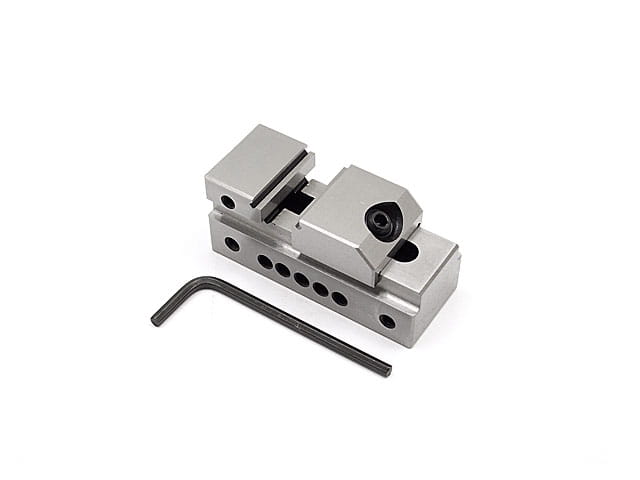

Precisely made control vise for measurements and inspections.
Spindleless vise system allows free movement of the movable jaw along the entire length of the body after unlocking.
Narrower movable jaw compared to the entire body and fixed jaw enables operation in a lateral setting, as well as mounting on another vise.
The body and fixed jaw form a monolithic unit.
Threaded hole in the fixed jaw allows mounting a bump stop.
Made of high-quality alloy steel.
Working surfaces hardened to 58-62 HRC.

Specification:

SPZB grinding vise - dimensions

Parameter	Value
S	26 mm
a_max	22 mm
H	30 mm
h	9.15 mm
L	65.4 mm
Weight	0.5 kg

Operating principle of the SPZB vise:

SPZB grinding vise - operating principle steps 1-3

1. Release the jaw with an Allen key.
2. With the key inserted, change the screw contact angle to a greater one.
3. The locking pin disengages from the rack, causing the lock to be released.

SPZB grinding vise - operating principle step 4

4. With the correct key and screw position, the jaw can be moved.

SPZB grinding vise - operating principle steps 5-6

5. Position the object in the vise.
6. Move the movable jaw to the part (the loose locking pin will automatically engage the rack).

SPZB grinding vise - operating principle steps 7-8

7. Firmly tighten the screw with an Allen key.

Vise accuracy:

SPZB grinding vise - dimensional tolerances
