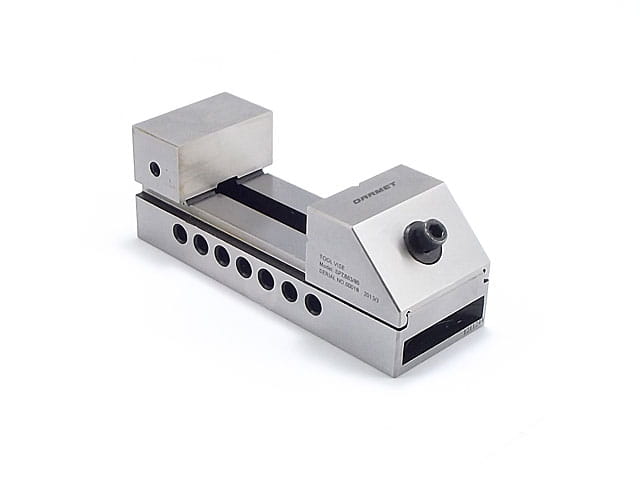

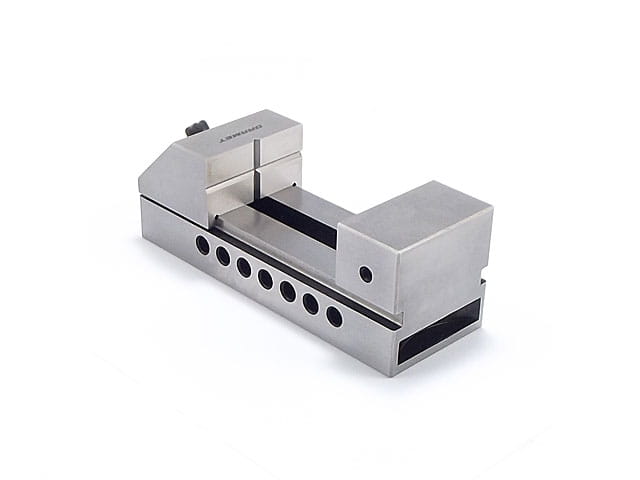

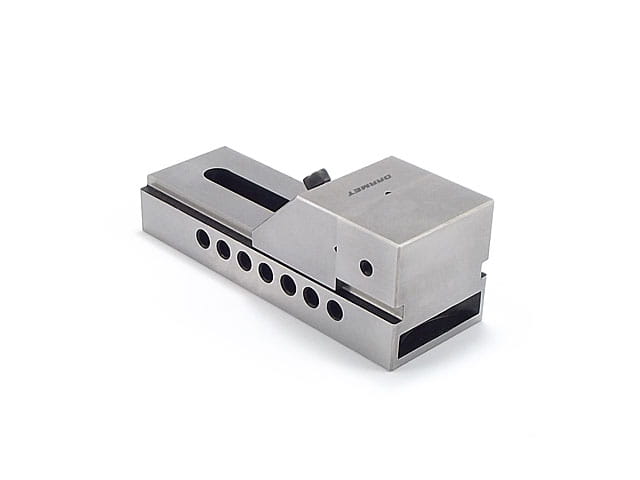

Non-spindle precise grinding control vise made of steel 63x85 mm SPZB DARMET
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Information:
- Precisely made inspection vise for measurements and checks.
- Spindle-less vise system allows free movement of the movable jaw along the entire length of the body after releasing the lock.
- The narrower movable jaw compared to the entire body and fixed jaw enables its operation in a side position as well as mounting on another vise.
- The body and fixed jaw form a monolithic whole.
- The threaded hole in the fixed jaw allows mounting of a bump stop.
- The material used is high-quality alloy steel.
- Working surfaces hardened to 58-62 HRC.
Specification:
| Parameter | Value |
|---|---|
| S | 63 mm |
| amax | 85 mm |
| H | 63 mm |
| h | 32 mm |
| L | 175 mm |
| Weight | 3 kg |
Operating principle of the SPZB vise:
1. Release the jaw using the Allen key.
2. With the key inserted, change the screw application to a larger angle.
3. The locking pin disengages from the rack, causing the lock to be released.
4. At the appropriate position of the key and screw, the jaw can be moved.
5. Place the object in the vise.
6. Move the movable jaw towards the detail (the loose locking pin will automatically engage with the rack).
7. Securely tighten the screw with the Allen key.
Vise Accuracy:
