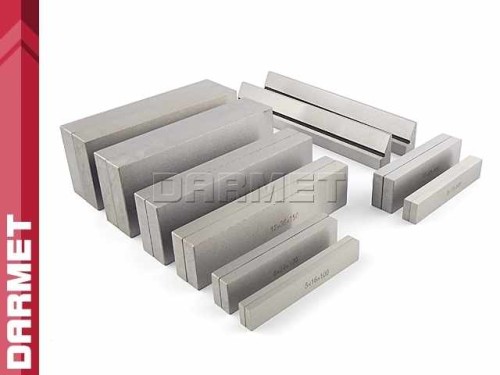

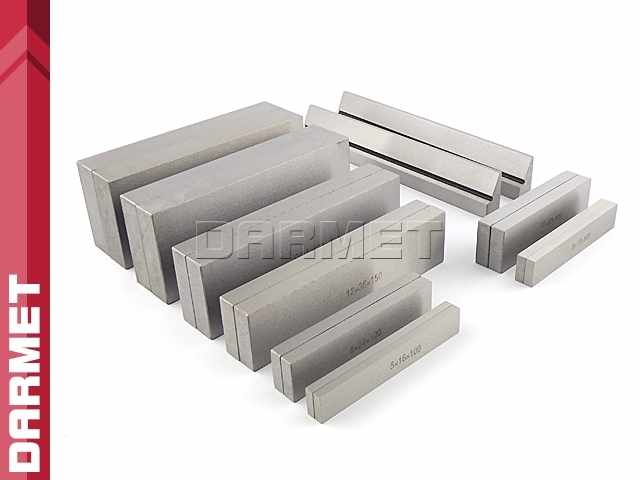

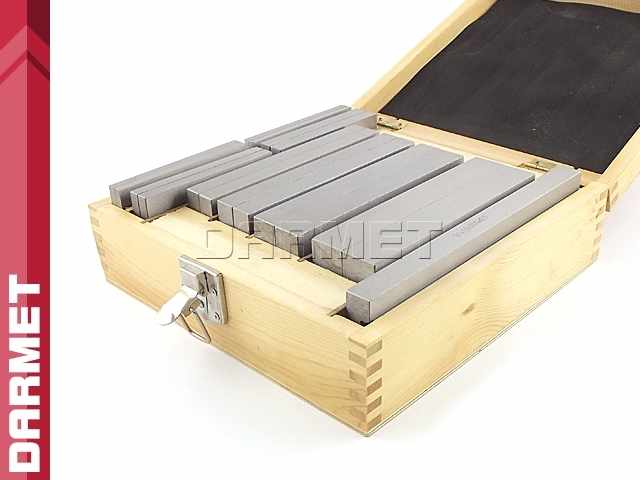

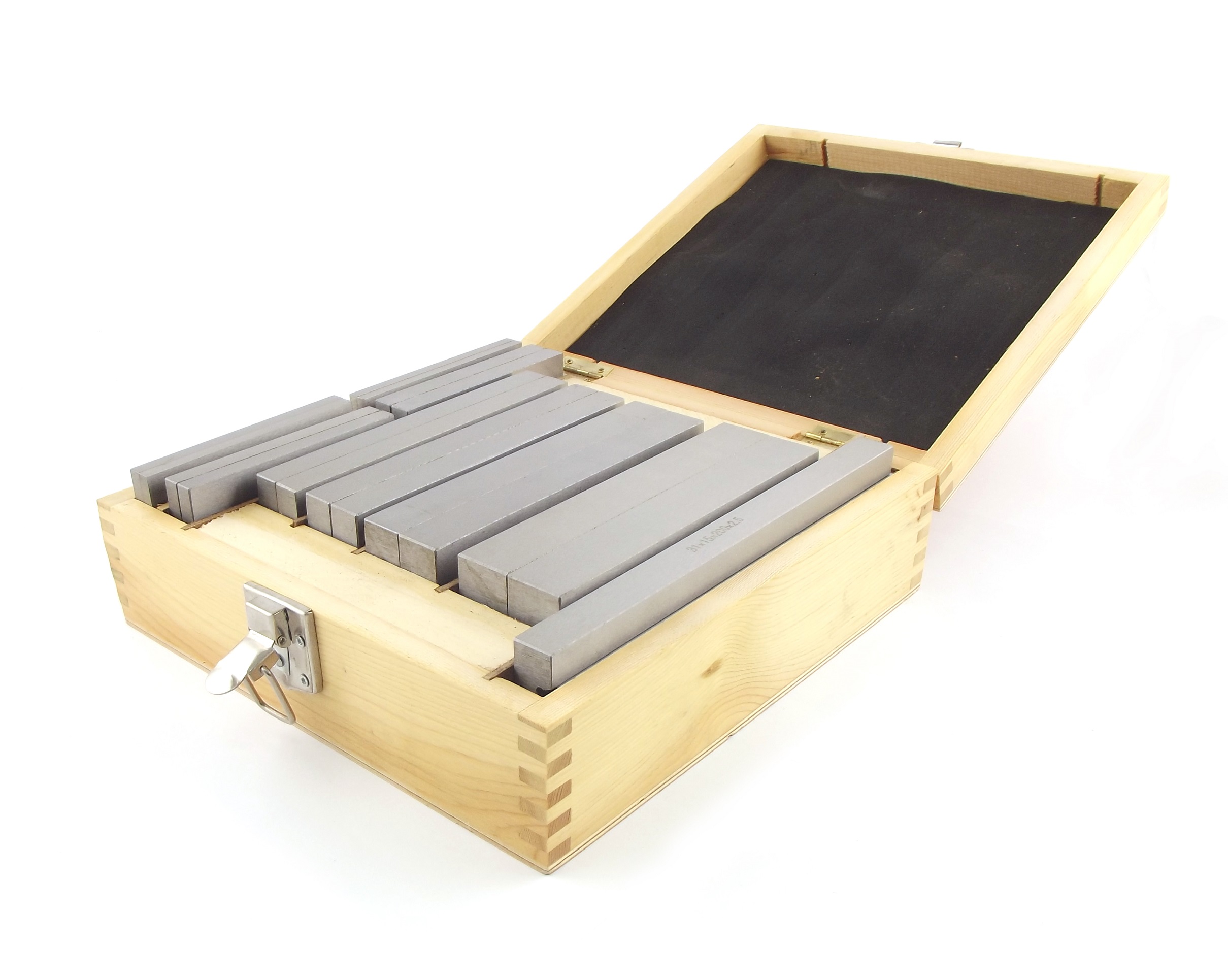

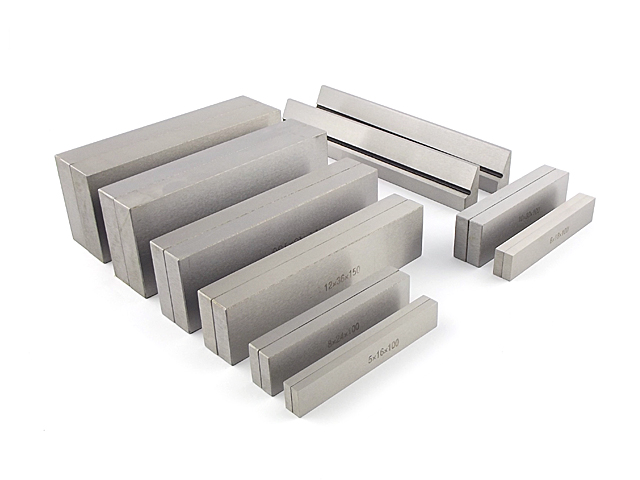

Parallelepiped blocks | milling shims | set of 9 pairs | PF 100 - 200/5-31 PB161
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$176.14
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$143.21
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_PF_PB161
Description
Features and application:
- Parallel plates made of high-quality alloy steel.
- Ground in two planes.
- Hardness: 55 - 62 HRC.
- Pair height tolerance: 0.01 mm per 100 mm length.
- Used in pairs for parallel clamping of workpieces in vices, on machine tools or marking plates.
- Dimensions enable numerous combinations.
Data technical:
| Length [mm] | Thickness [mm] | Height [mm] | Weight [kg] |
|---|---|---|---|
| 100 | 5 ± 0.2 | 16 | 11.2 |
| 6 ± 0.2 | 18 | ||
| 8 ± 0.2 | 24 | ||
| 10 ± 0.2 | 30 | ||
| 150 | 12 ± 0.2 | 36 | |
| 14 ± 0.2 | 48 | ||
| 18 ± 0.2 | 60 | ||
| 20 ± 0.2 | 62 | ||
| 200 | 31 ± 0.2 | 15x2.5 (30°) |
Milling pads - use in vices:
