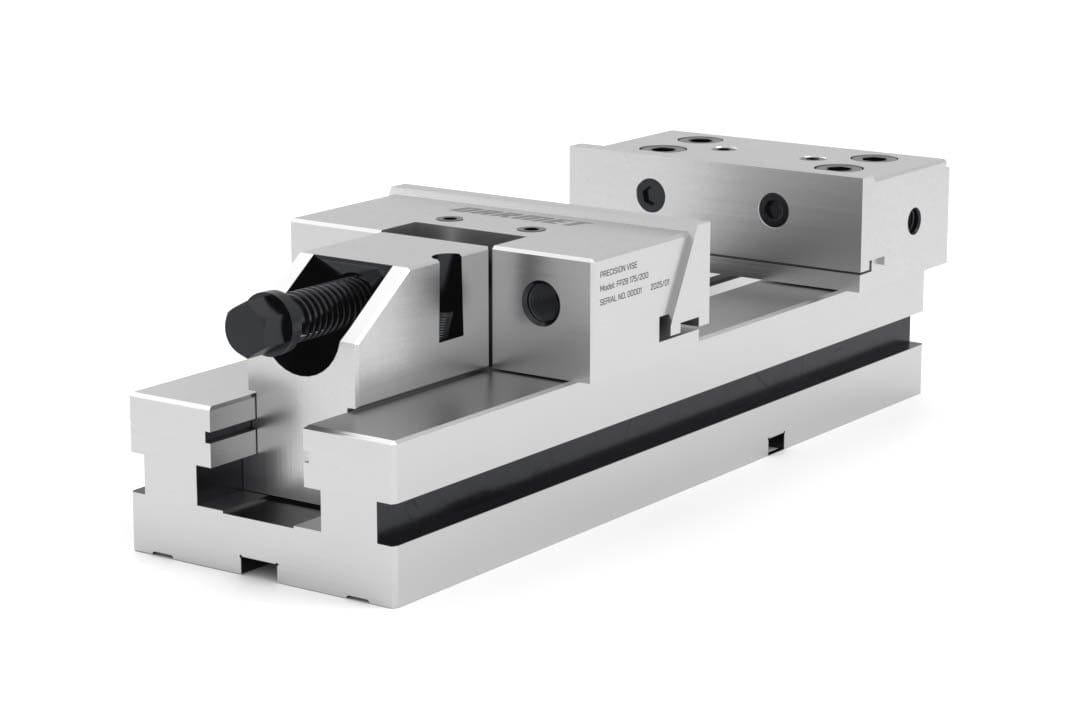

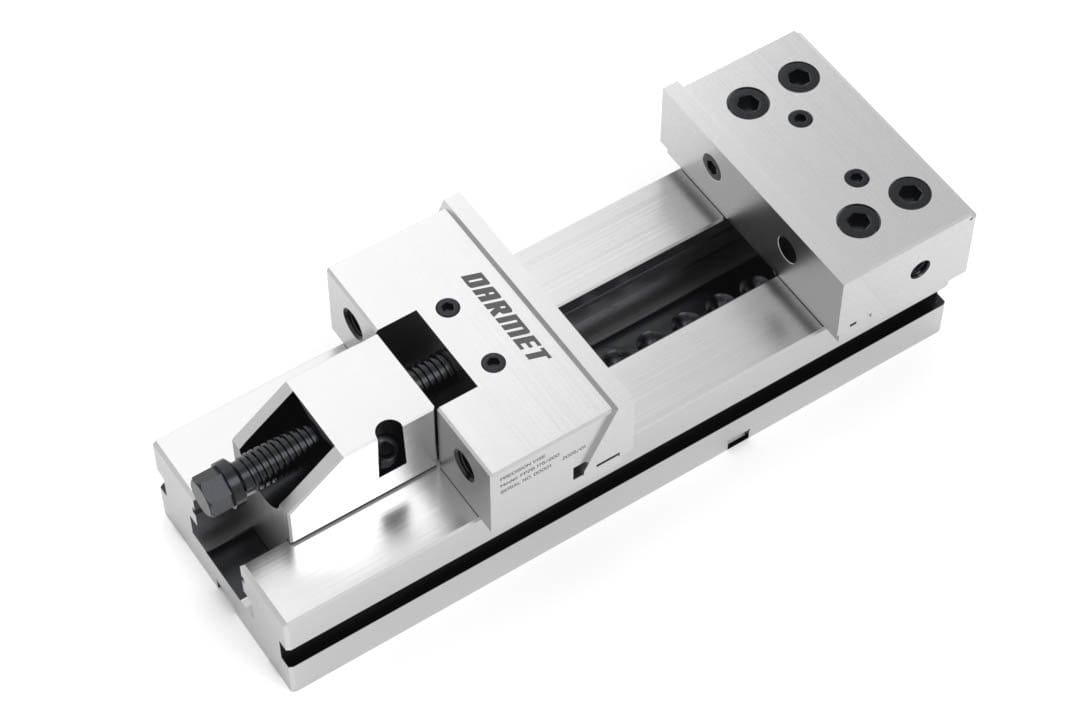

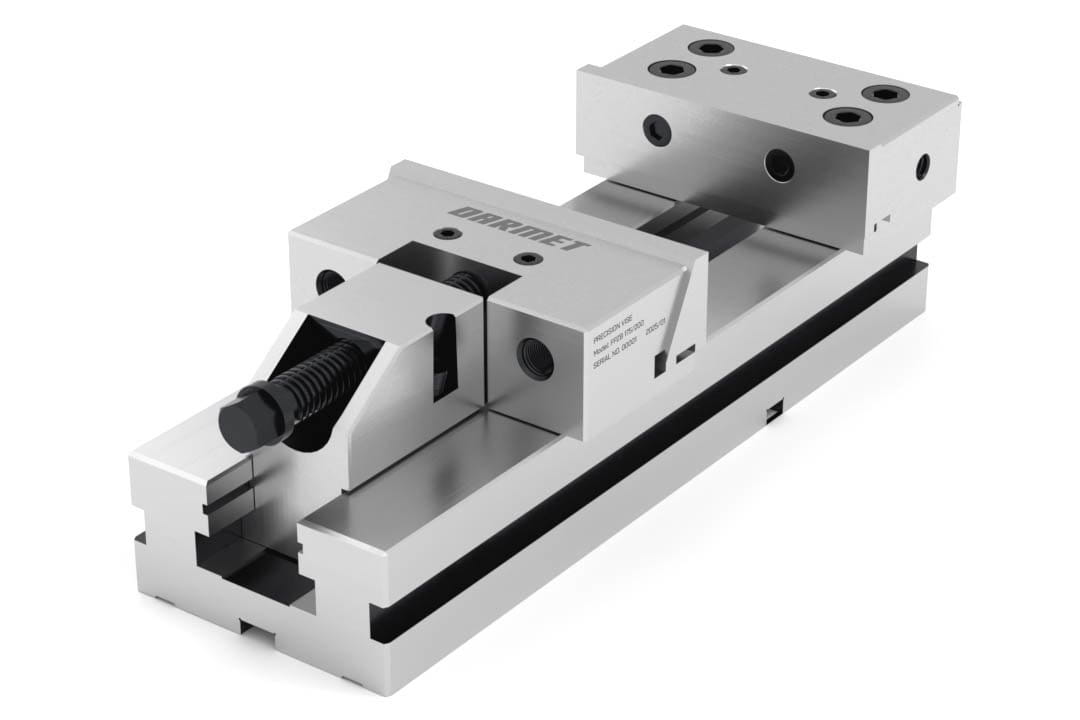

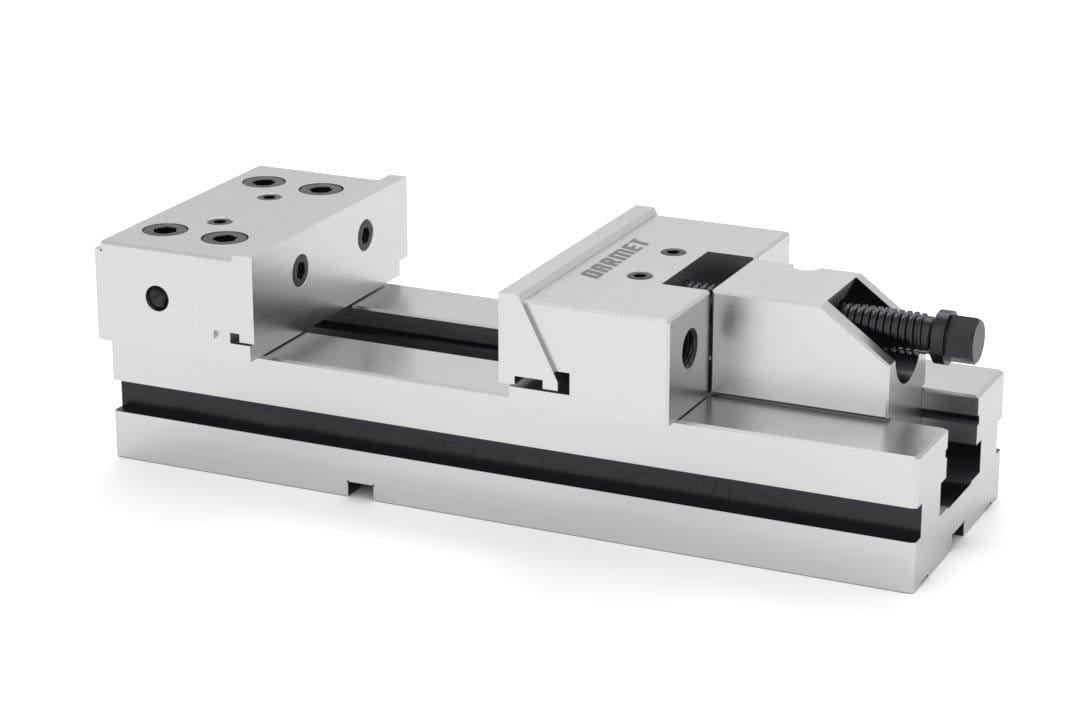

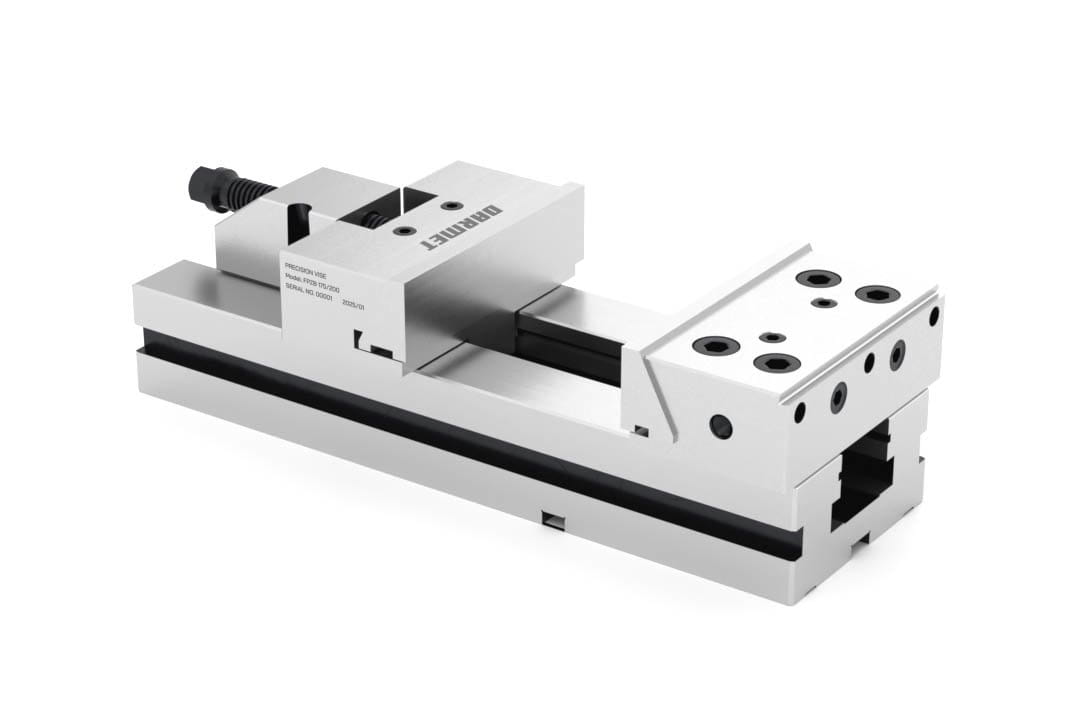

Precision Steel Vise 175 mm – FPZB 175/200
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Features and Applications:
- The FPZB precision steel vise is used for precise work on grinders, milling machines, CNC machines, machining centers, etc.
- Made of high-quality alloy steel.
- Working surface hardness 58–62 HRC.
- Permissible deviation at the base height ± 0.01 mm, allowing multiple vises to be used together.
- The machine vise can be mounted on a rotary base allowing 360° rotation.
Technical Data:
| Parameter | Value |
|---|---|
| S | 175 mm |
| amax | 200 mm |
| h | 60 mm |
| H1 | 58±0.01 mm |
| H | 117 mm |
| A | 145 mm |
| L1 | 98 mm |
| L2 | 121 mm |
| L | 455 mm |
| d | 16 mm |

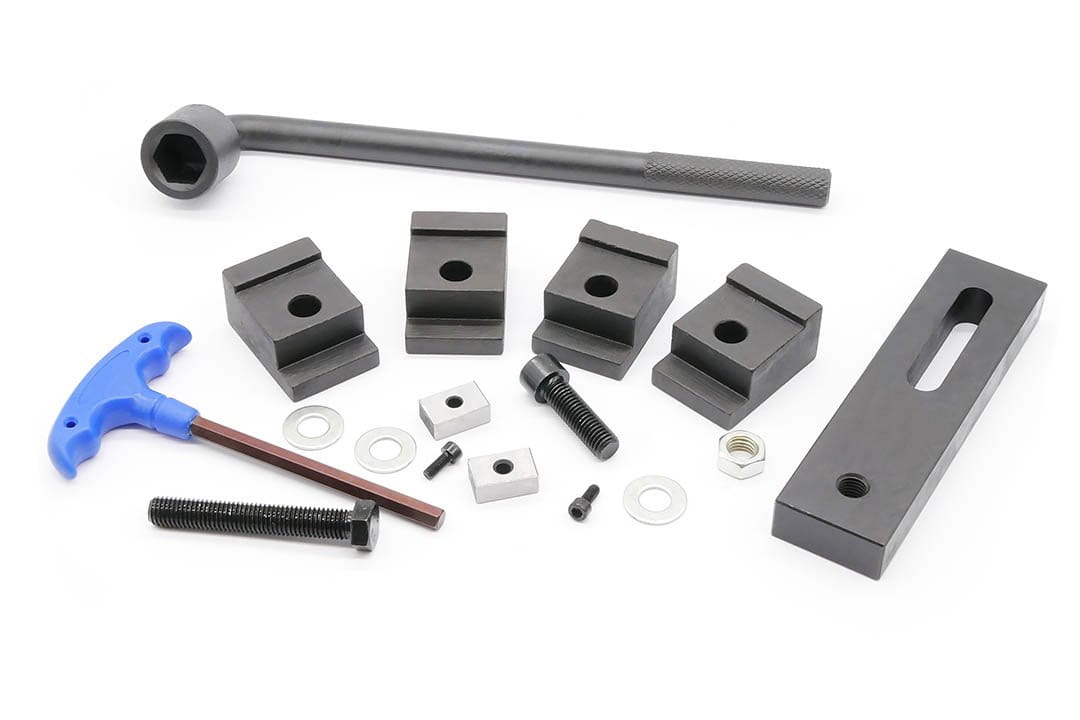

The movable jaw holder with clamping screw ensures quick and easy clamping of workpieces.
Floating inserts mounted in the vise jaws with clearance guarantee proper workpiece clamping.
Positioning holes for the steel ball and holder.
The fixed jaw can be rotated 180° in 5 mm increments and fastened with 4 hex screws.
Accuracy Parameters:
How to choose the correct parallels for machines and worktables:
