Precision angular sine grinding vise 125x160 mm SPZSA DARMET

Availability: mała ilość

Dispatched within: 24 hours

Delivery: The price does not include any possible payment costs check the delivery methods

Gross price: $654.29

incl. 23% TAX, excl. shipping costs

Regular price:

654.29

The lowest price during 30 days prior to the reduction:

Net price: $531.95

excl. 23% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

quantity szt.

You gain 238 points []

product unavailable

add to wish list

Rating:

Vendor:

Product code: DM_IM_SPZSA_125_160

Description

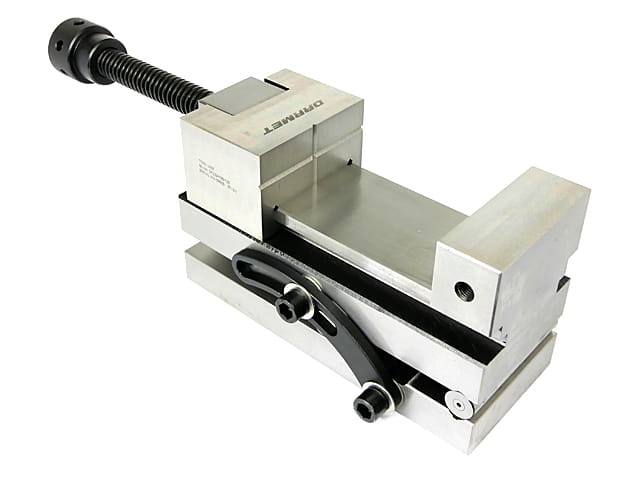

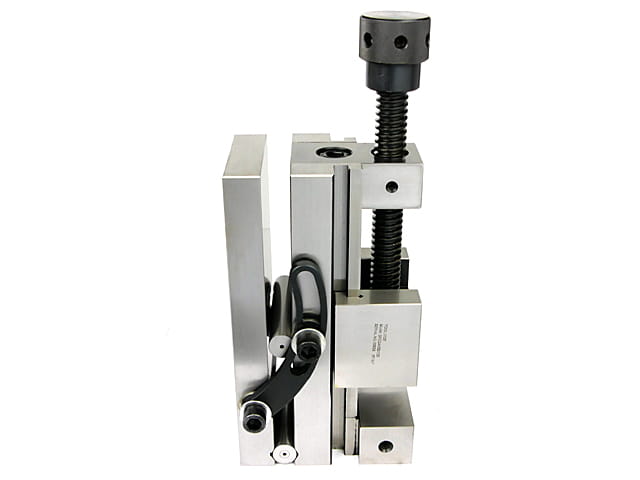

"A clamping device for angular positioning of semi-finished products before their further processing. Precise values are obtained exclusively thanks to the high-quality manufacturing of the vise, as well as the ground reference plates."

Information:

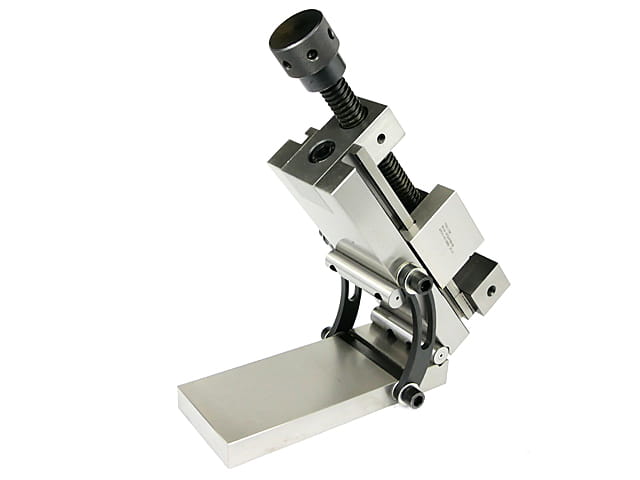

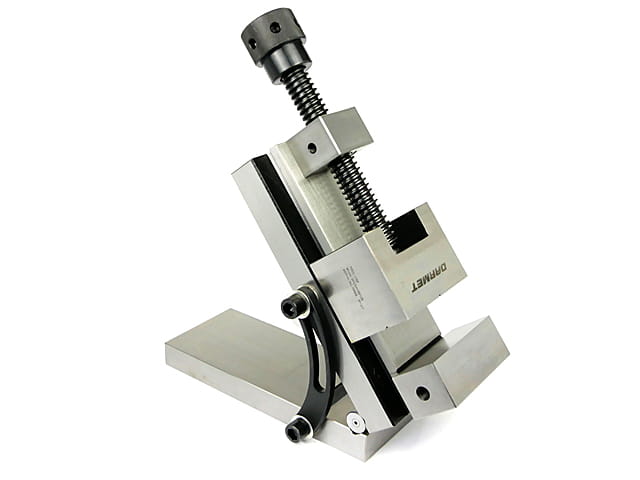

✔️Clamping tool for angular fastening of elements in the range of 0° - 45°.

✔️The main and most important feature of the vise is the sinusoidal determination of values using reference plates.

✔️Proper values are achieved thanks to well-made elements of the vise; only their manufacturing precision and properly ground surfaces will accurately reflect textbook tolerances.

✔️The device is made of high-quality alloy steel with a working surface hardened to 58-62 HRC.

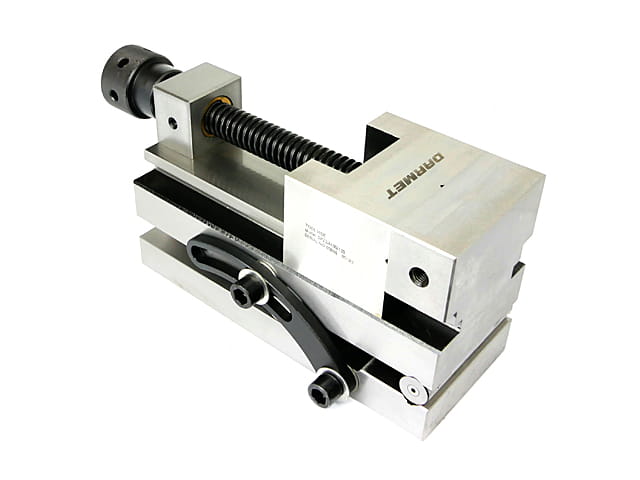

✔️The SPZSA model distinguishes itself from its counterparts by a standard pull screw that extends and retracts parallel to the movable jaw.

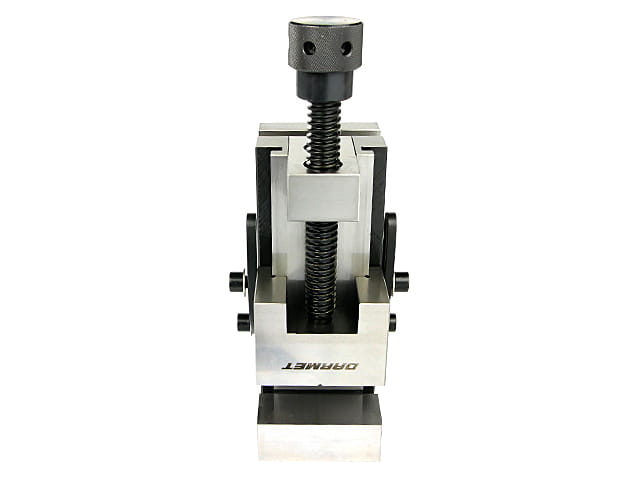

✔️The prism-shaped movable jaw, i.e., having both vertical and horizontal grooves, allows clamping of shafts.

✔️This vise is used for precise and accurate machining and measuring work on grinders, milling machines, CNC-controlled machines, and other machining centers.

✔️All applied screws have universal hexagon socket heads.

✔️A strong base allows mounting the vise in another clamping device; just remember the correct assembly on stepped jaw inserts or using parallel shims.

Specification:

PRECISION SINUS VISE SPZSA

Parameter	Value
S	125 mm
a_max	160 mm
h	50 mm
H	154.2 mm
L	285 mm
l₁	200±0.015 mm
Diameter of shafts	ø20h6 mm
Weight	23 kg

Accuracy parameters:

PRECISION SINUS VISE 50MM, SPZSA50/65

How to calculate and set the tilt angle:

Data:	Sought:
c = 100mm α = 45° sin45° = 0.7071	a = ?
Solution:
sinα = a/c a = csinα a = 1000.7071 a = 70.71[mm]

Data:

Sought:

c = 100mm

α = 45°

sin45° = 0.7071

a = ?

Solution:

sinα = a/c

a = c*sinα

a = 100*0.7071

a = 70.71[mm]

To achieve a tilt angle of 45°, arrange a stack of plates with a height of 70.71 mm.

A table of values for the sine trigonometric function may prove useful.
