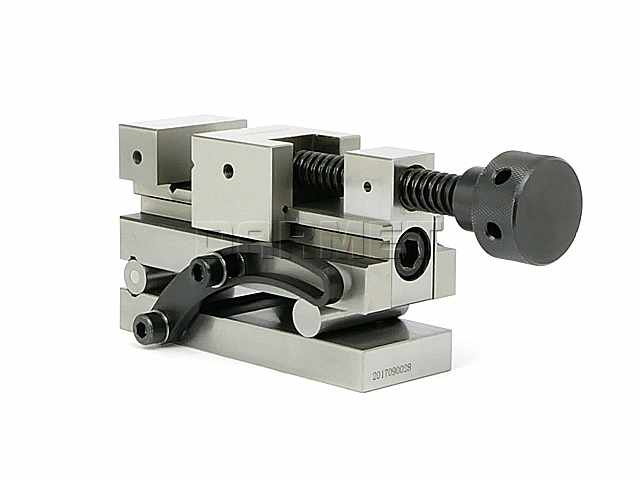

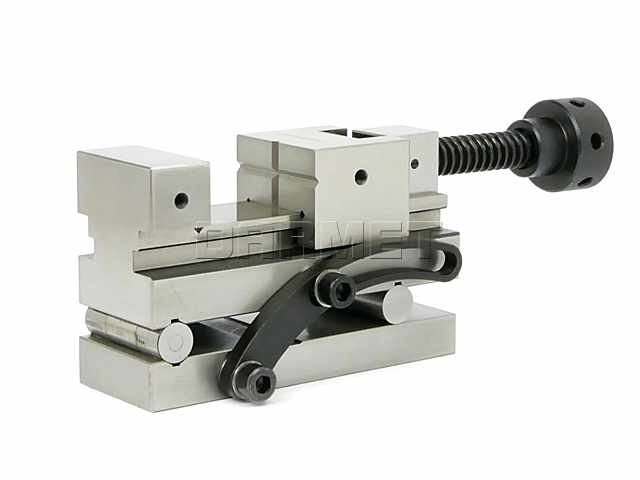

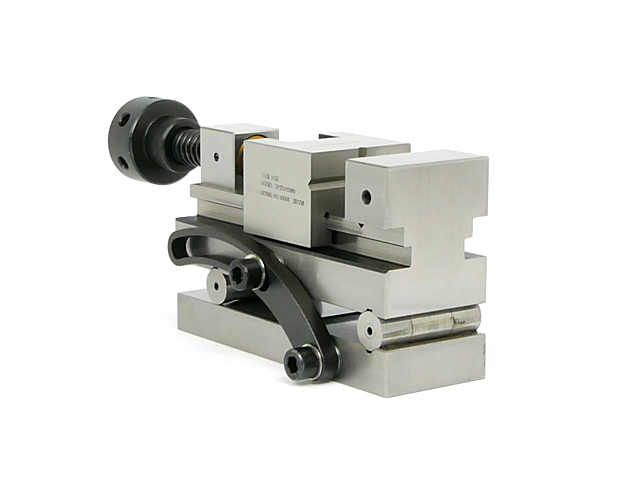

Precision angular sine grinding vise 50x65 mm SPZSA DARMET

Availability: mała ilość

Dispatched within: 24 hours

Delivery: The price does not include any possible payment costs check the delivery methods

Gross price: $231.82

incl. 23% TAX, excl. shipping costs

Regular price:

231.82

The lowest price during 30 days prior to the reduction:

Net price: $188.47

excl. 23% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

quantity szt.

You gain 84 points []

product unavailable

add to wish list

Rating:

Vendor:

Product code: DM_IM_SPZSA_50_65

Description

"Clamping device for angular positioning of semi-finished products before their subsequent processing. Precise values are obtained solely thanks to the high-quality manufacture of the vice, as well as ground reference plates."

Information:

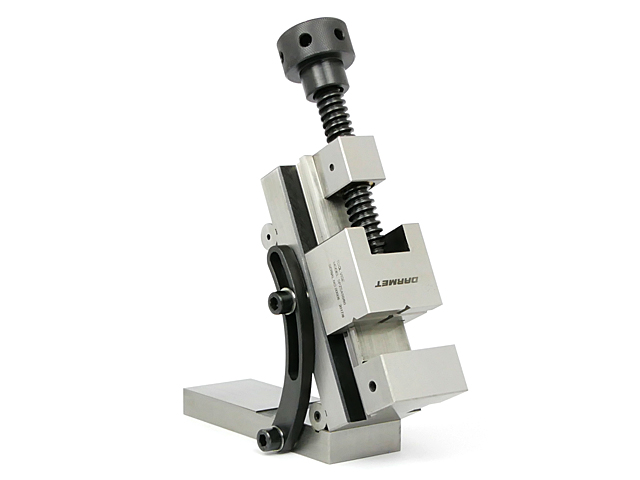

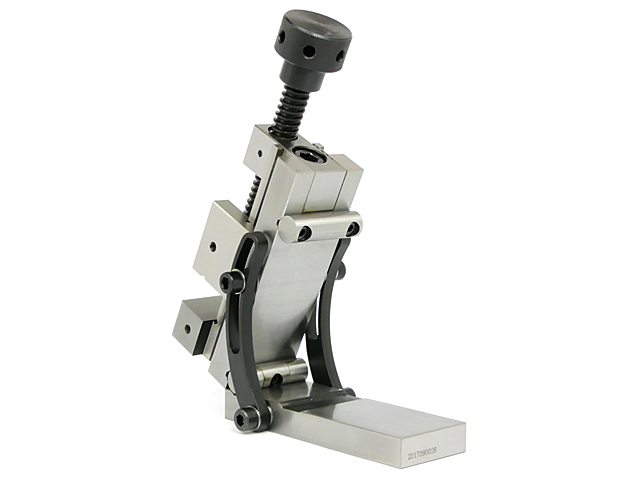

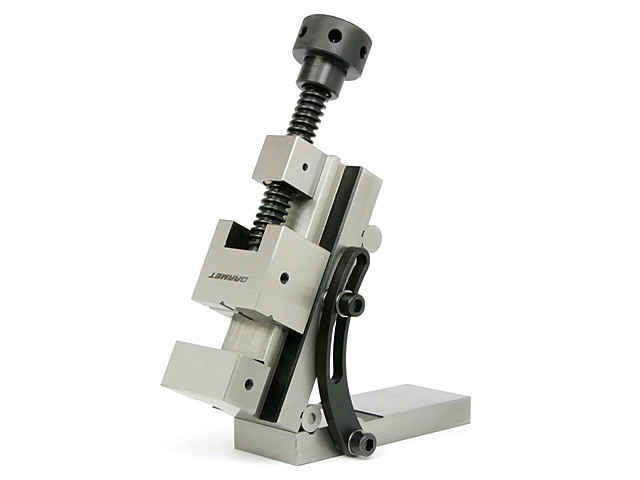

✔️Clamping device for angular fixing of elements in the range of 0° - 45°.

✔️The main and most important feature of the vice is sinusoidal determination of values using reference plates.

✔️Appropriate values are obtained thanks to properly made vice components; only their manufacturing precision and properly ground surfaces will accurately reflect textbook tolerances.

✔️The device is made of high-quality alloy steel with a work surface hardened to 58-62 HRC.

✔️The SPZSA model distinguishes itself from its counterparts by a standard pull screw that extends and retracts parallel to the movable jaw.

✔️The prism movable jaw, i.e., possessing vertical and horizontal grooves, enables clamping of shafts.

✔️This vice is used during precise and accurate machining and measuring operations on grinders, milling machines, CNC machining centers, and other machining centers.

✔️All applied screws have universal hex socket heads.

✔️The sturdy base allows mounting the vice in another clamping device; just remember to properly mount it on stepped jaw inserts or using parallel shims.

Specifications:

PRECISION SINUS VICE SPZSA

Parameter	Value
S	50 mm
a_max	65 mm
h	25 mm
H	86.6 mm
L	140 mm
l₁	100±0.015 mm
Diameter of shafts	ø15h6 mm
Weight	3.5 kg

Vice Accuracy:

PRECISION SINUS VICE 50MM, SPZSA50/65

How to calculate and set the inclination angle:

Data:	Unknown:
c = 100mm α = 45° sin45° = 0.7071	a = ?
Solution:
sinα = a/c a = csinα a = 1000.7071 a = 70.71[mm]

Data:

Unknown:

c = 100mm

α = 45°

sin45° = 0.7071

a = ?

Solution:

sinα = a/c

a = c*sinα

a = 100*0.7071

a = 70.71[mm]

To achieve an inclination angle of 45°, a stack of plates with a height of 70.71 mm must be arranged.

The table of sine trigonometric function values might be useful.
