Precision machine steel vise 200 mm FPZB, CNC, for milling DARMET - 200/300

Availability: in stock

Dispatched within: 24 hours

Delivery: The price does not include any possible payment costs check the delivery methods

Gross price: $1,616.21

incl. 23% TAX, excl. shipping costs

Regular price:

1616.21

The lowest price during 30 days prior to the reduction:

Net price: $1,313.99

excl. 23% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

quantity szt.

You gain 586 points []

product unavailable

add to wish list

Rating:

Vendor:

Product code: DM_IM_FPZB_200_300

Information:

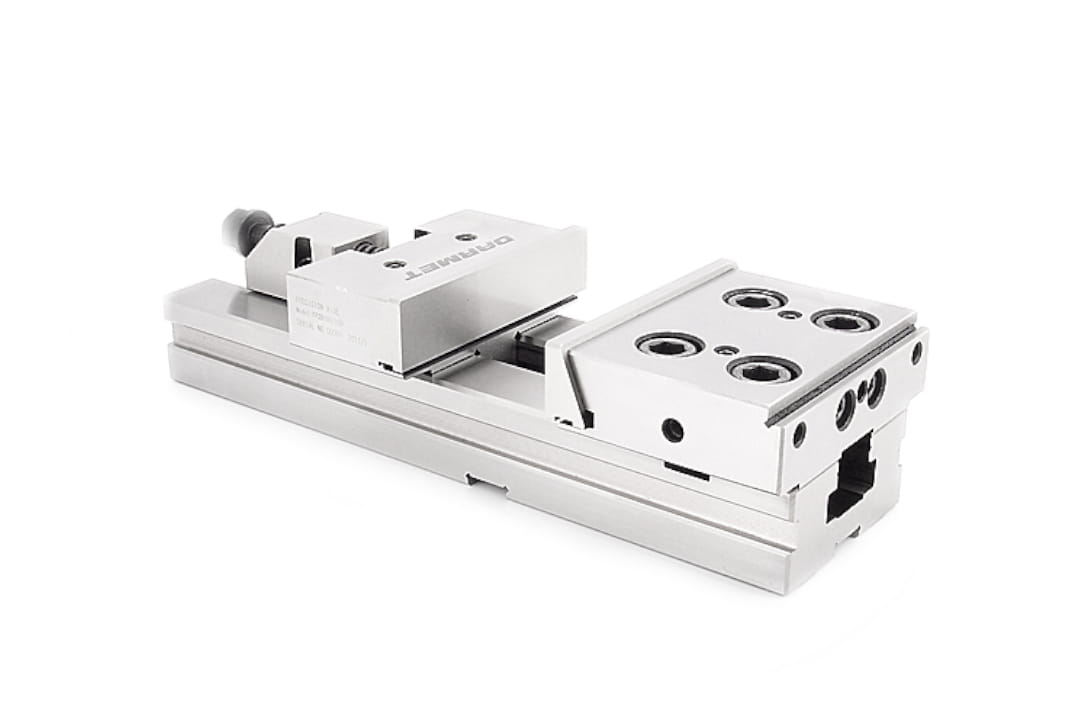

Precision steel vise for use on numerical machines for all kinds of operations requiring near-perfect dimensions.
High manufacturing accuracy allows the use of vices in an assembly. Maximum base deviation of ±0.01 mm.
On both sides of the body along its entire length are channels for fixing the vise with clamping feet.
The movement of the jaw on the bed is perfectly balanced, free feed with undetectable backlash.
Interchangeable jaw inserts provide versatility in the work of the clamping tool; depending on the attached insert model, it is possible to clamp appropriate elements (even shafts).
A quick-clamp system in the movable jaw allows the jaw position to be changed instantly without time-consuming cranking.
The special design of the insert slots presses the workpieces downward against the body.
The jaw support is responsible for its locking position.

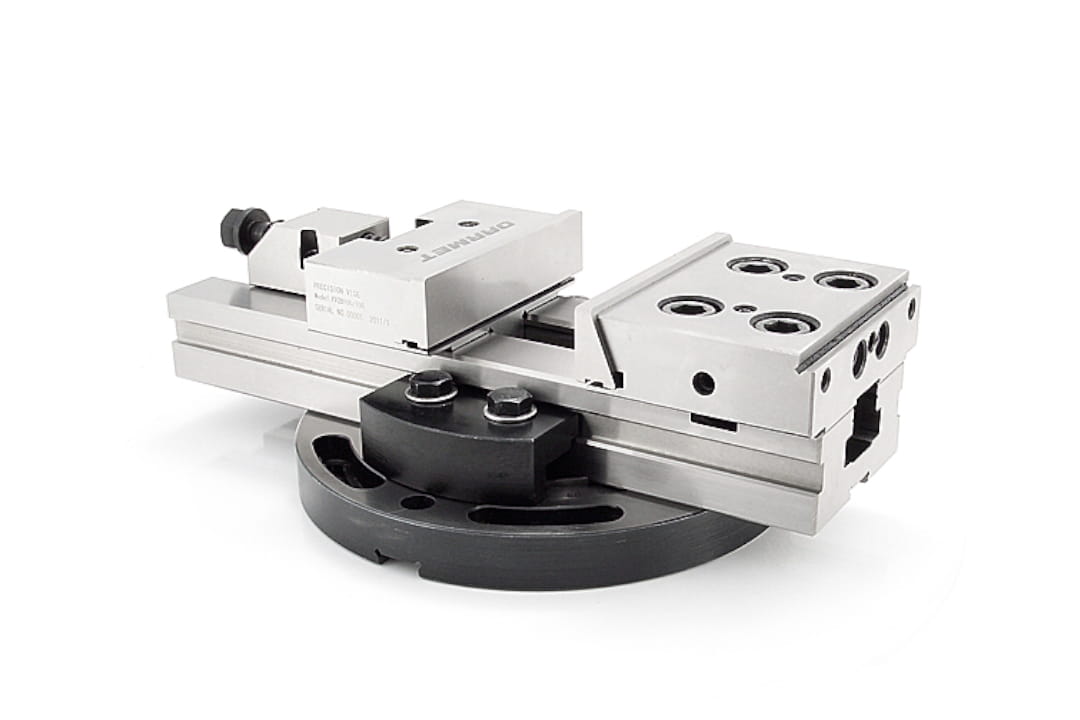

Mounting the device on a dedicated swivel base allows for a full 360° rotation around the axis.
The fixed jaw on both sides has threaded holes to attach special bumpers to stabilize the position of objects.
On the underside of the bed are grooves for setting the tool in T-slot tables.

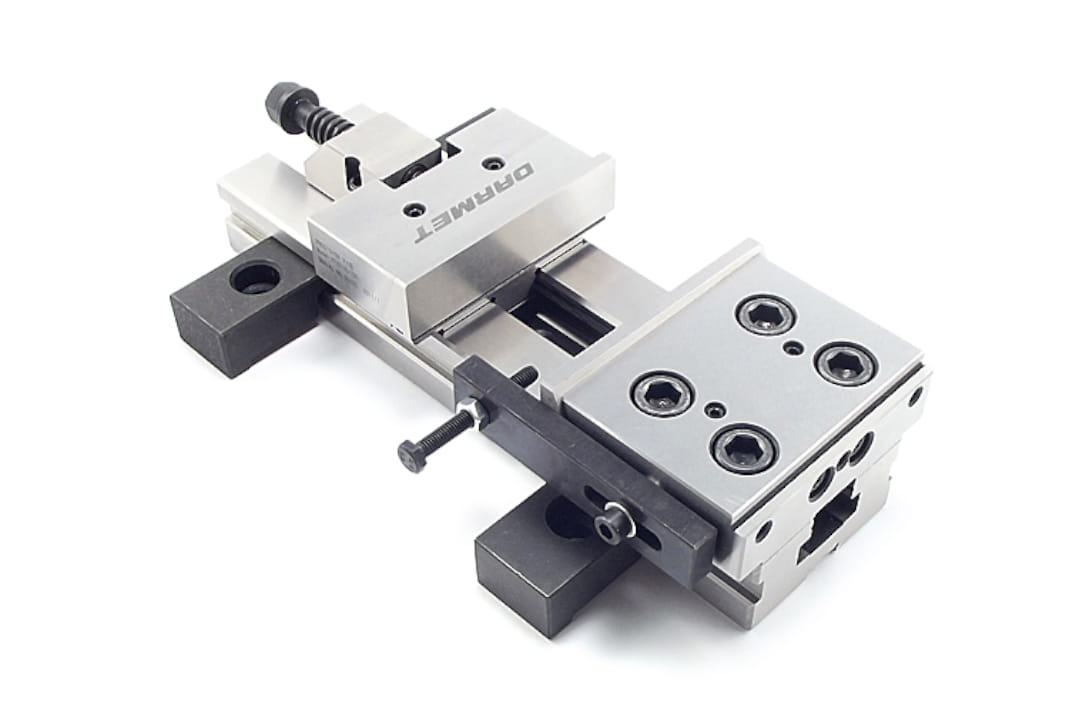

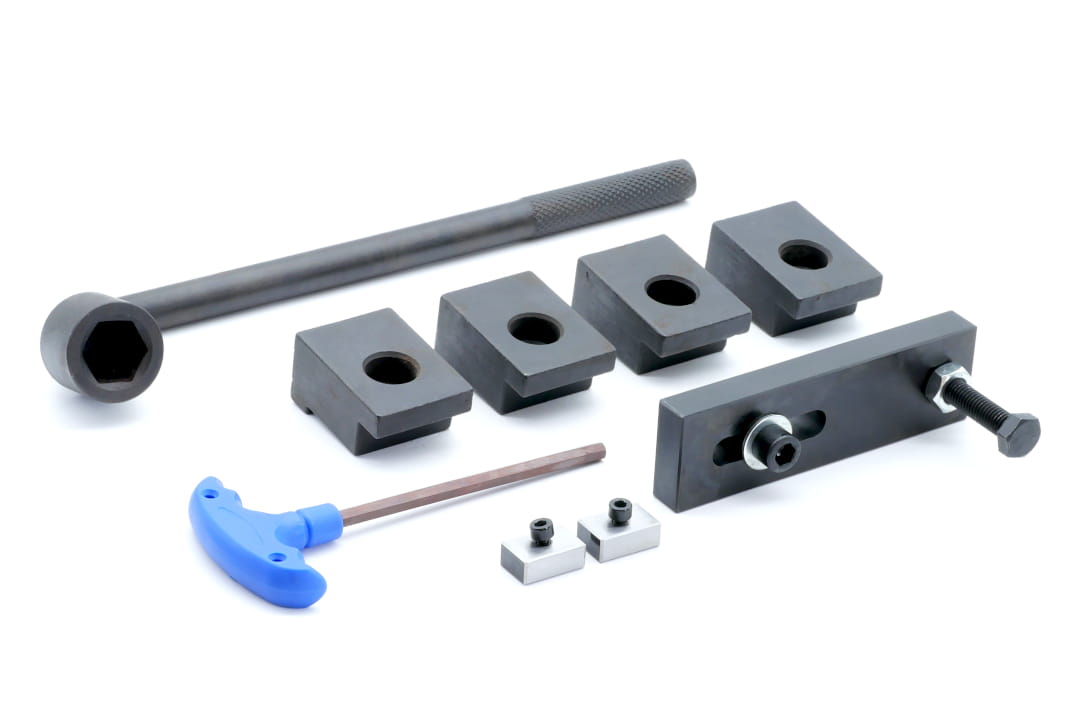

The kit includes the necessary accessories for fixing and proper operation of the vise.

PRECISION MACHINE VISE 200MM, FPZB200/300


Movable jaw holder with clamping screw ensures quick and easy clamping	Floating inserts fitted in the jaws with clearance which guarantees proper mounting of the workpiece	Holes fixing the position of the steel ball and the holder	Possibility to move the fixed jaw with 5 mm step by 180°, which is mounted with 4 Allen screws

steel precision vise FPZB - tolerances
