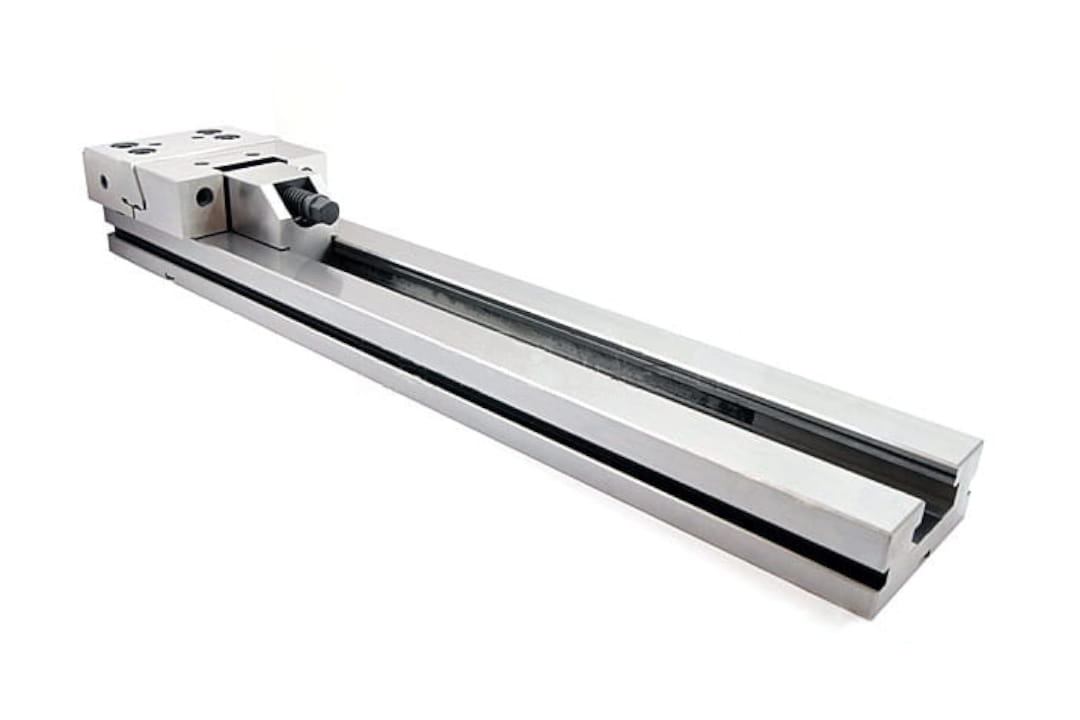

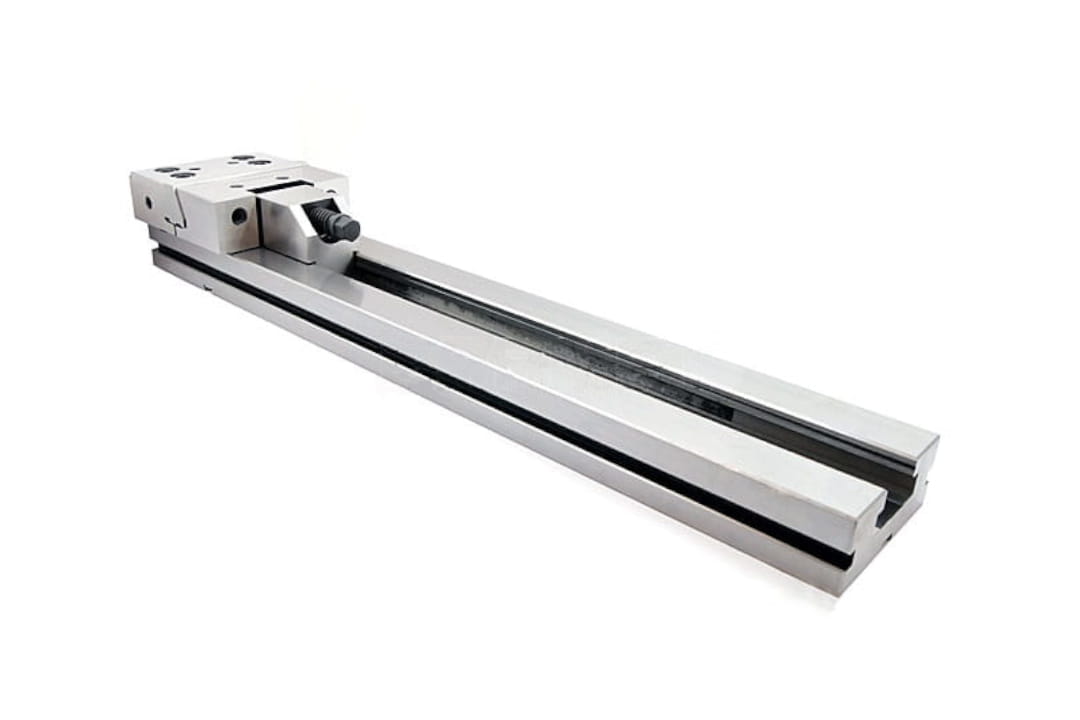

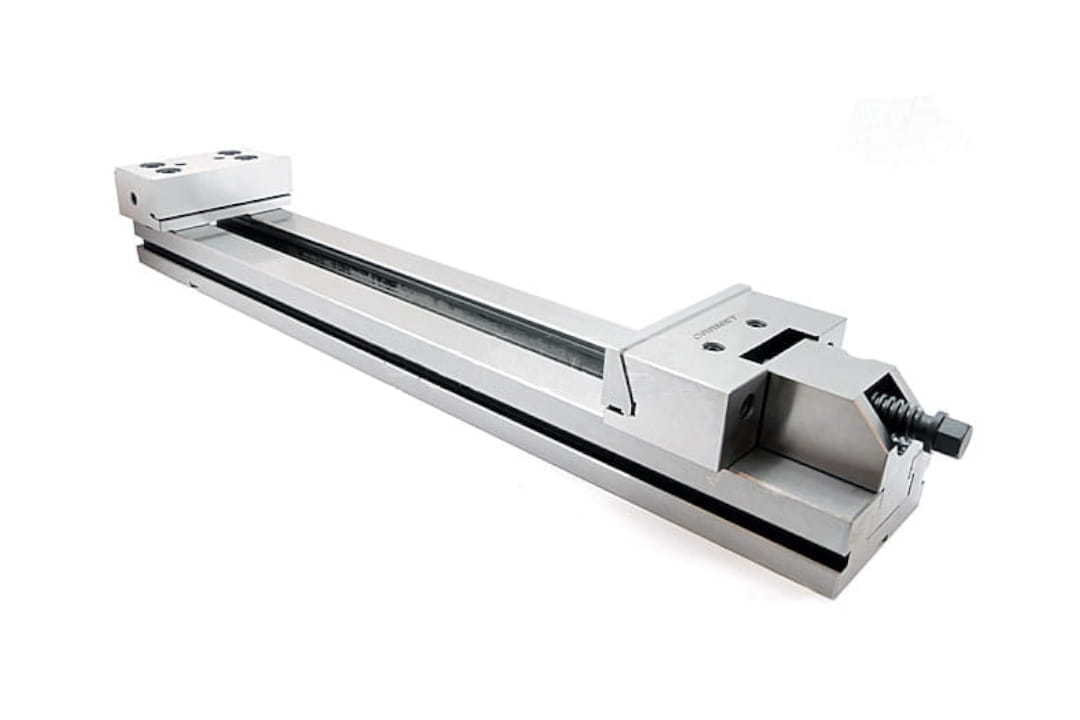

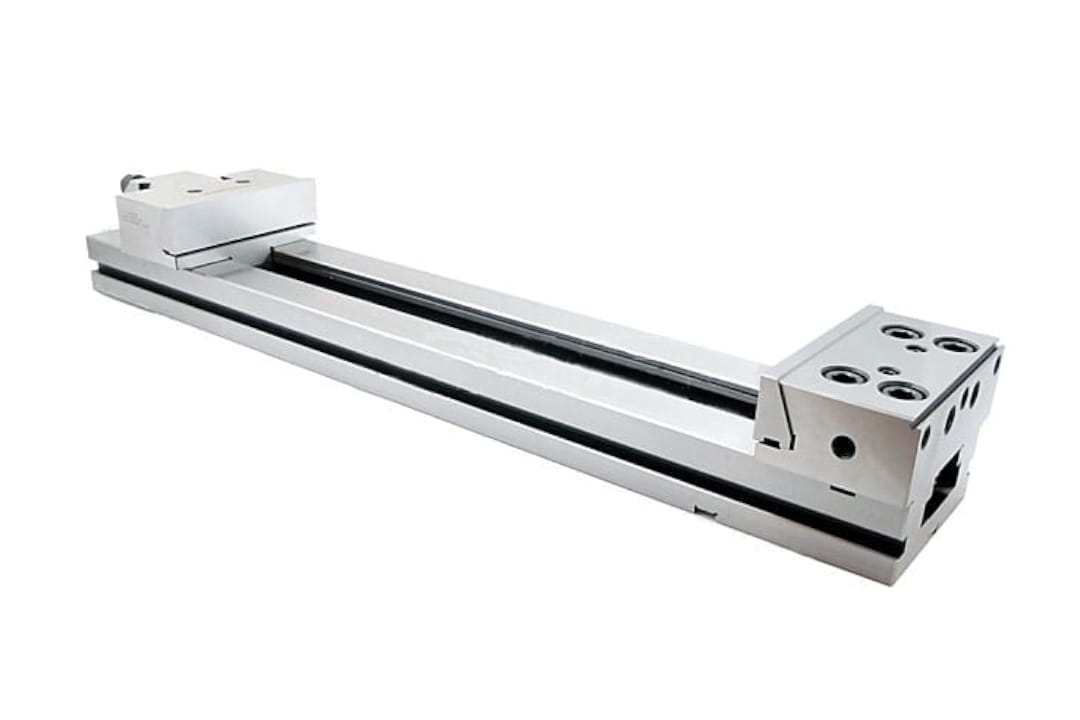

Precision steel machine vise 175x600 mm FPZB DARMET
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Information:
- Precision steel vice for use in numerical machines for all operations requiring almost perfect dimensions.
- High accuracy of manufacture allows the vices to be used in a set. Maximum base deviation ±0.01 mm.
- On both sides of the body along its entire length there are channels for mounting the vice with clamping claws.
- The jaw movement on the bed is perfectly balanced, free feed with imperceptible play.
- Replaceable jaw inserts ensure the versatility of the tool Depending on the type of insert used, it is possible to mount appropriate elements (even rollers).
- The quick-clamping system in the movable jaw allows for immediate change of jaw position without time-consuming turning of the crank.
- The special design of the insert sockets presses the details downwards against the body.
- The jaw holder is responsible for its locking position.
- Mounting the device on a dedicated rotary base allows for a full 360° rotation around the axis.
- The fixed jaw has threaded holes on both sides to mount special bumpers that stabilize the position of objects.
- On the bottom of the bed there are grooves for locating stones to set the tool in tables with T-slots.

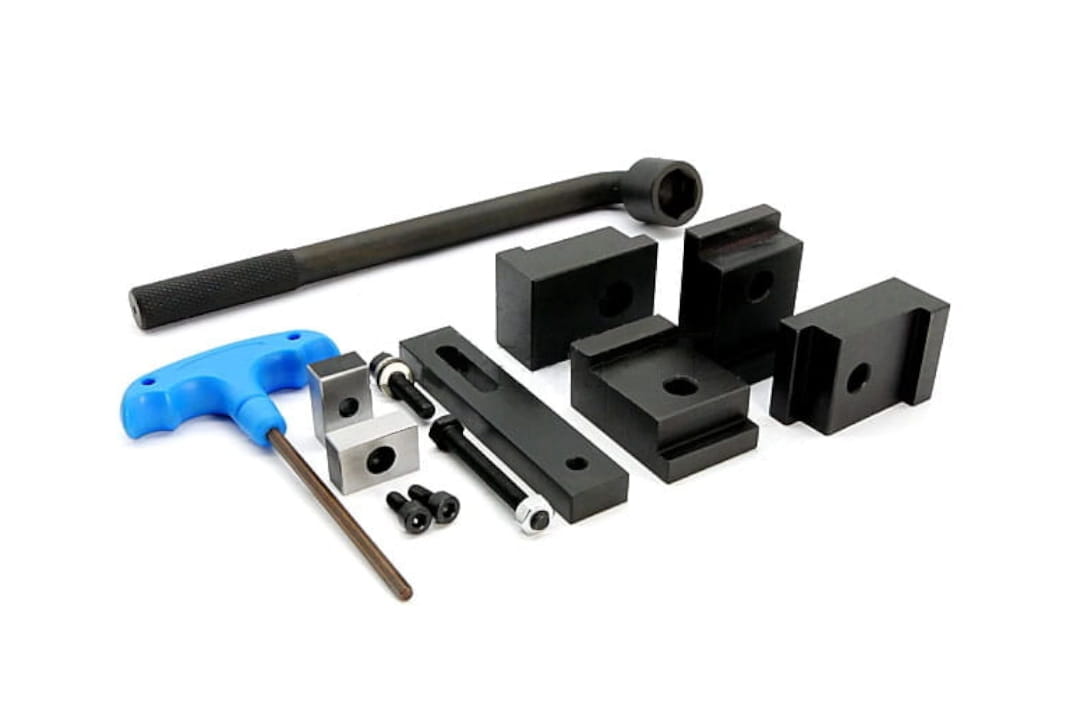

- The set includes necessary accessories for mounting and proper operation of the vice.
Specification:
| Parameter | Value |
|---|---|
| S | 175 mm |
| amax | 600 mm |
| h | 60 mm |
| H1 | 58±0.01 mm |
| H | 117 mm |
| A | 145 mm |
| L1 | 98 mm |
| L2 | 121 mm |
| L | 855 mm |
| d | 16 mm |
| Weight | 67.0 kg |

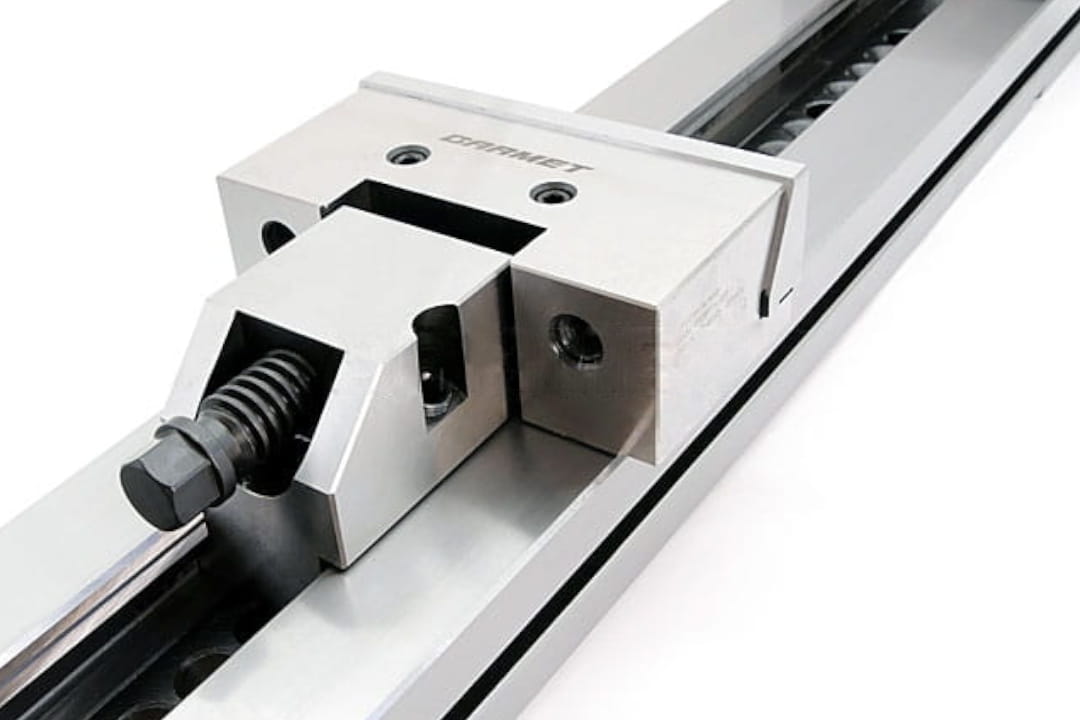

The movable jaw holder with a clamping screw ensures quick and easy clamping of workpieces.
Floating inserts mounted in the vice jaws with clearance ensuring correct clamping of the workpiece.
Holes for positioning the steel ball and holder.

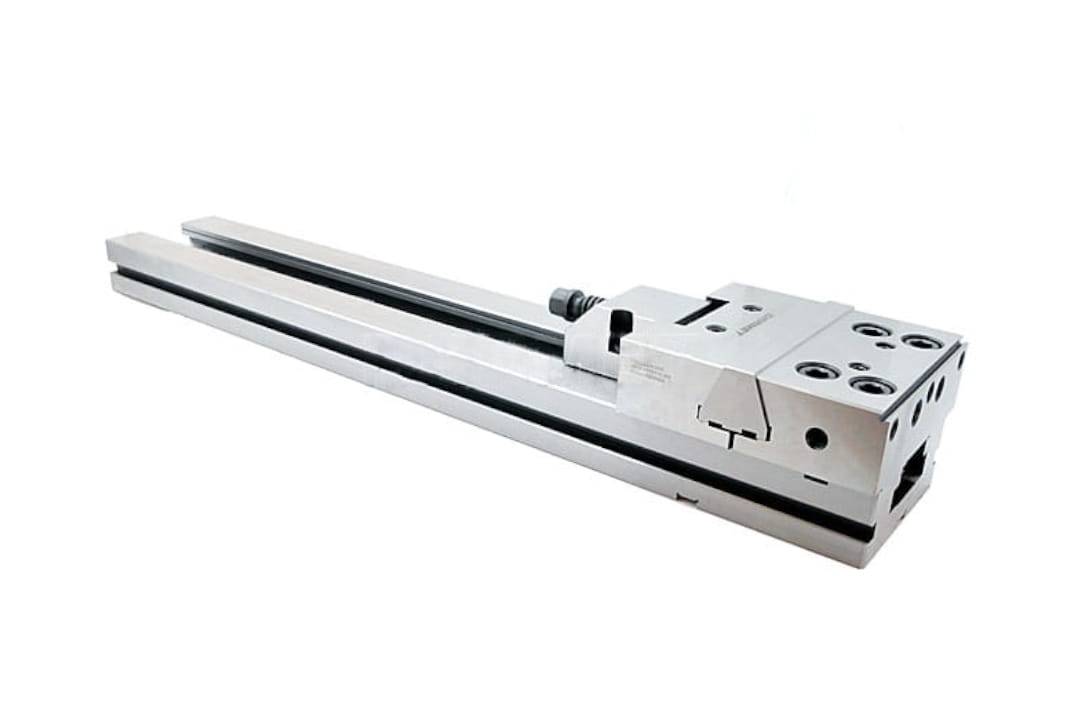

The fixed jaw can be rotated by 180° with a step of 5 mm, tightened with 4 Allen screws.
Accuracy parameters:
