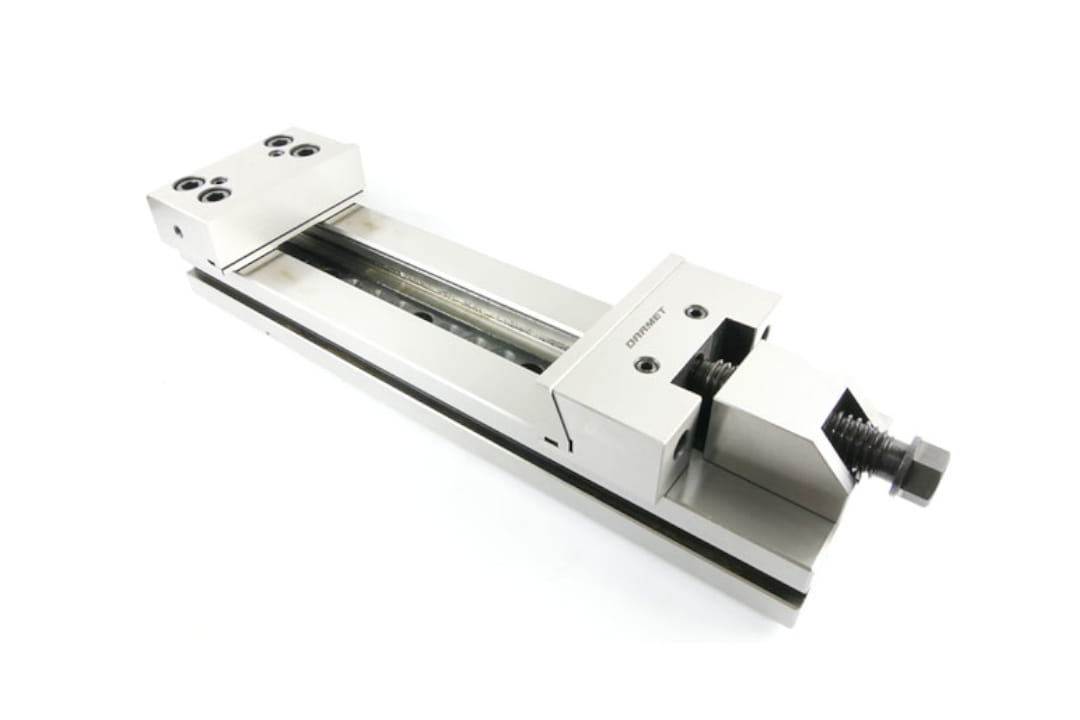

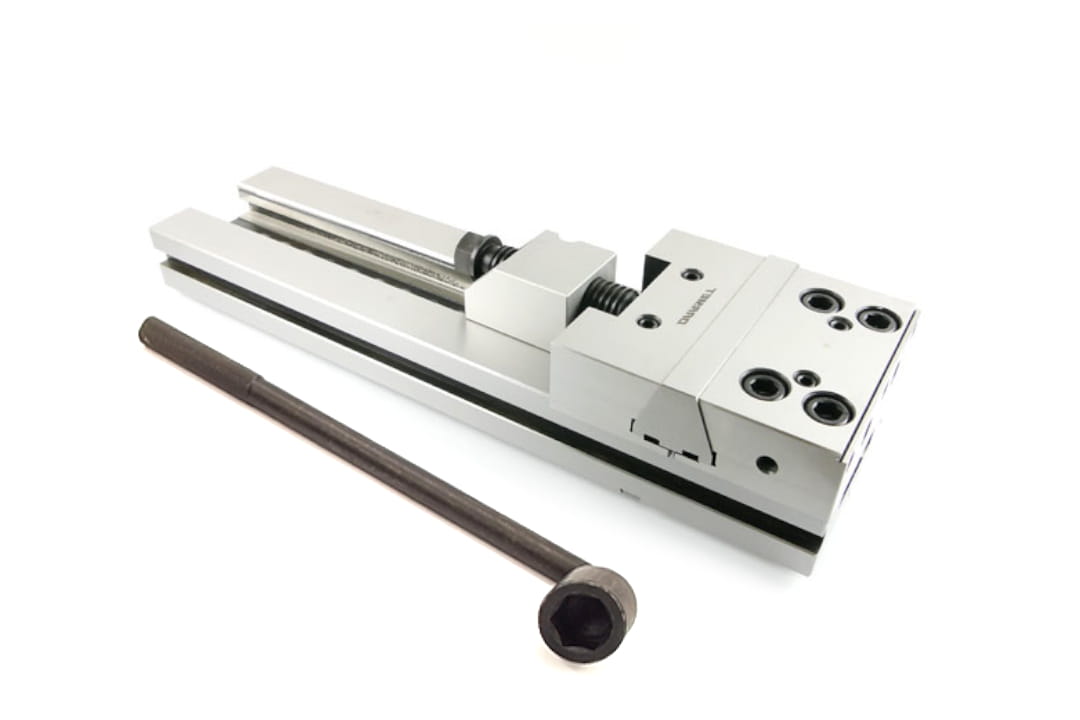

Precision steel machine vise 200x400 mm FPZB DARMET
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Information:
- Precision steel vise for use in numerical machines for all kinds of operations requiring almost perfect dimensions.
- High accuracy of manufacture allows the use of vices in a set. Maximum base deviation ±0.01 mm.
- On both sides of the body along its entire length there are channels for mounting the vise with clamping feet.
- The jaw’s movement on the bed is perfectly balanced, free feed with imperceptible backlash.
- Interchangeable jaw inserts provide versatility in the clamping tool’s work; depending on the attached insert model, it is possible to clamp appropriate elements (even shafts).
- The quick-clamp system in the movable jaw allows immediate change of jaw position without time-consuming cranking of a handle.
- Special design of the slots for inserts presses the parts downward against the body.
- Jaw holder is responsible for its position locking.
- Mounting the device on the dedicated swivel base allows full 360° rotation around the axis.
- The fixed jaw on both sides has threaded holes to attach special bumpers stabilizing the position of objects.
- On the underside of the bed are grooves for locating stones for setting the tool in T-slot tables.

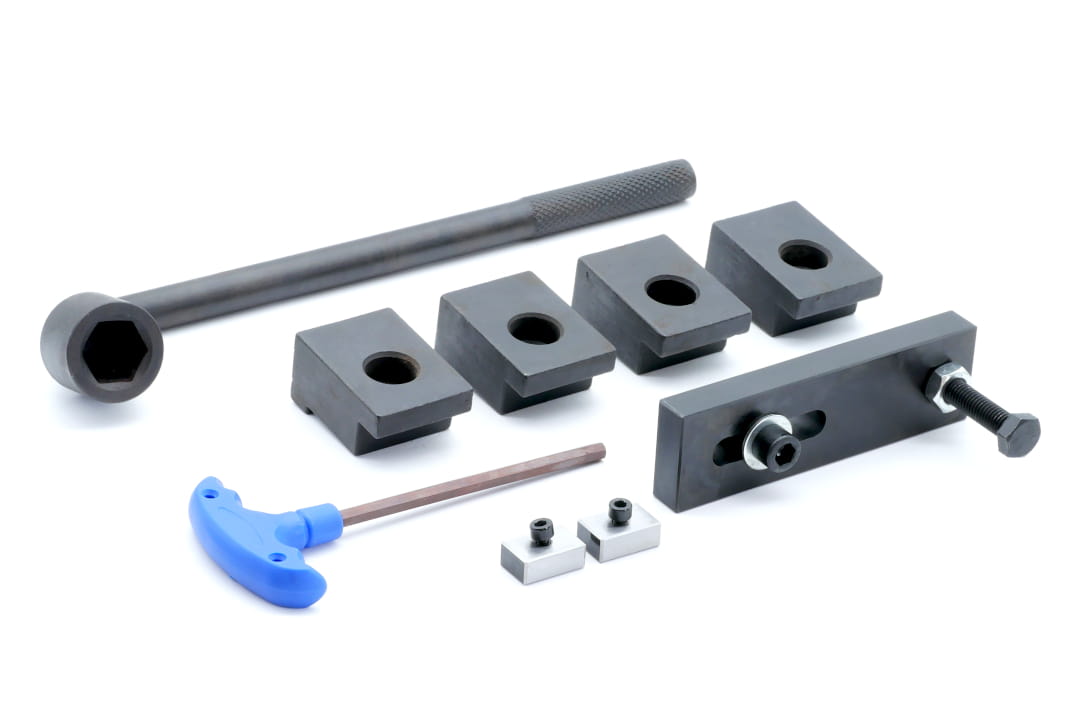

- The set includes the necessary accessories for mounting and proper operation of the vise.
Specification:
| Parameter | Value |
|---|---|
| S | 200 mm |
| amax | 400 mm |
| h | 65 mm |
| H1 | 70±0.01 mm |
| H | 133 mm |
| A | 170 mm |
| L1 | 112 mm |
| L2 | 137.5 mm |
| L | 695 mm |
| d | 16 mm |
| Weight | 71 kg |
Movable jaw holder with clamping screw ensures quick and easy clamping of parts.
Floating inserts fitted in the vise jaws with clearance guaranteeing correct mounting of the machined workpiece.
Holes set the position of the steel ball and holder.
The fixed jaw can be rotated 180° in 5 mm steps, mounted by 4 Allen screws.
Accuracy parameters:
