Professional Precision Grinding Control Vise Steel 80x100 mm SPZA DARMET
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Information:
- Precisely made control vise for measurements and checks.
- The narrower movable jaw in relation to the entire body and fixed jaw allows it to be operated in a lateral position, as well as when mounted on another vise.
- The body and fixed jaw form a monolithic whole.
- The prism-shaped movable jaw also allows for clamping rollers and other shapes.
- The material is high-quality alloy steel.
- Working surfaces hardened to 58-62 HRC.

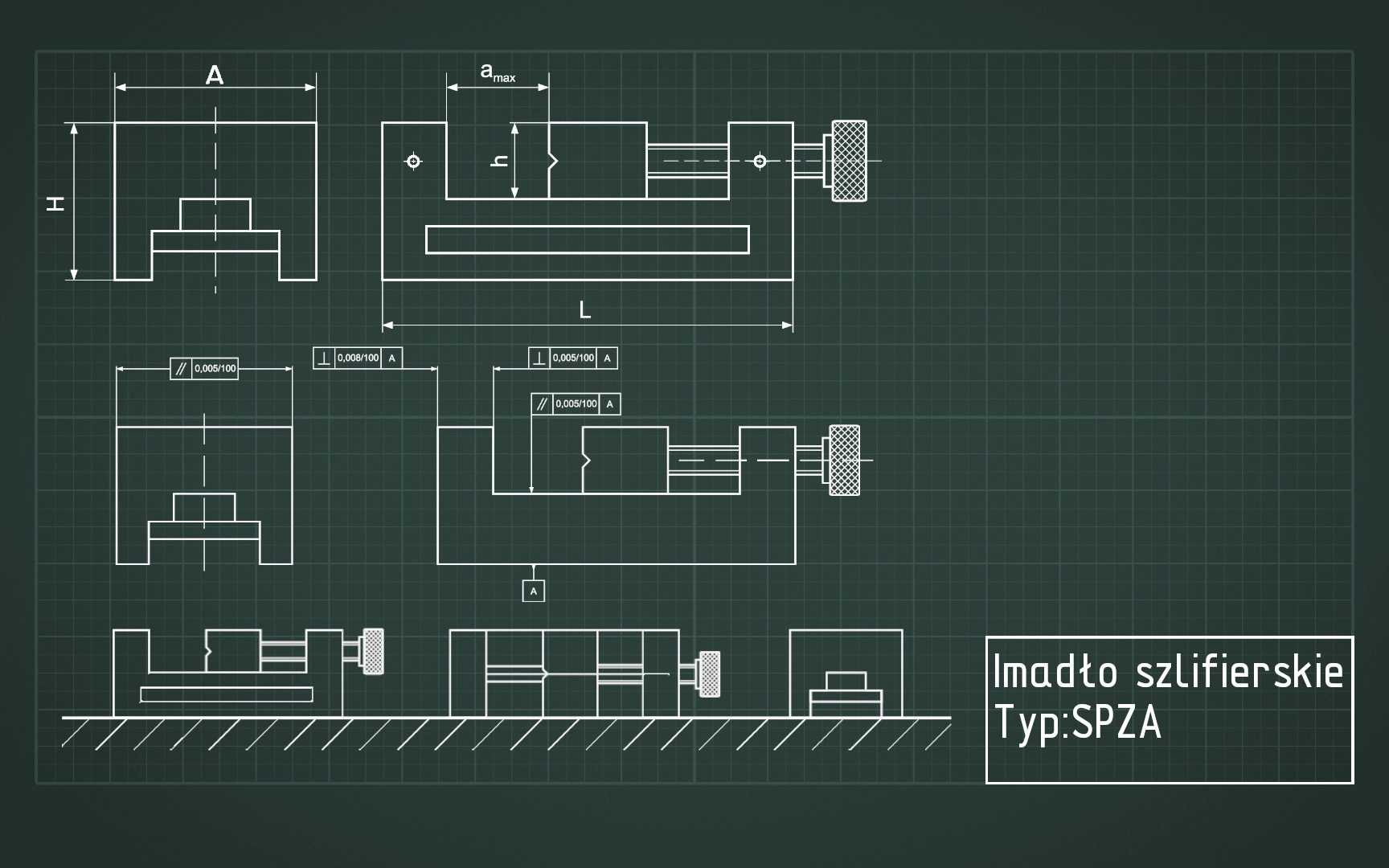

Technical specifications:
| Parameter | Value |
|---|---|
| A | 80 mm |
| amax | 100 mm |
| h | 40 mm |
| L | 220 mm |
| H | 84 mm |
| Weight | 6.5 kg |

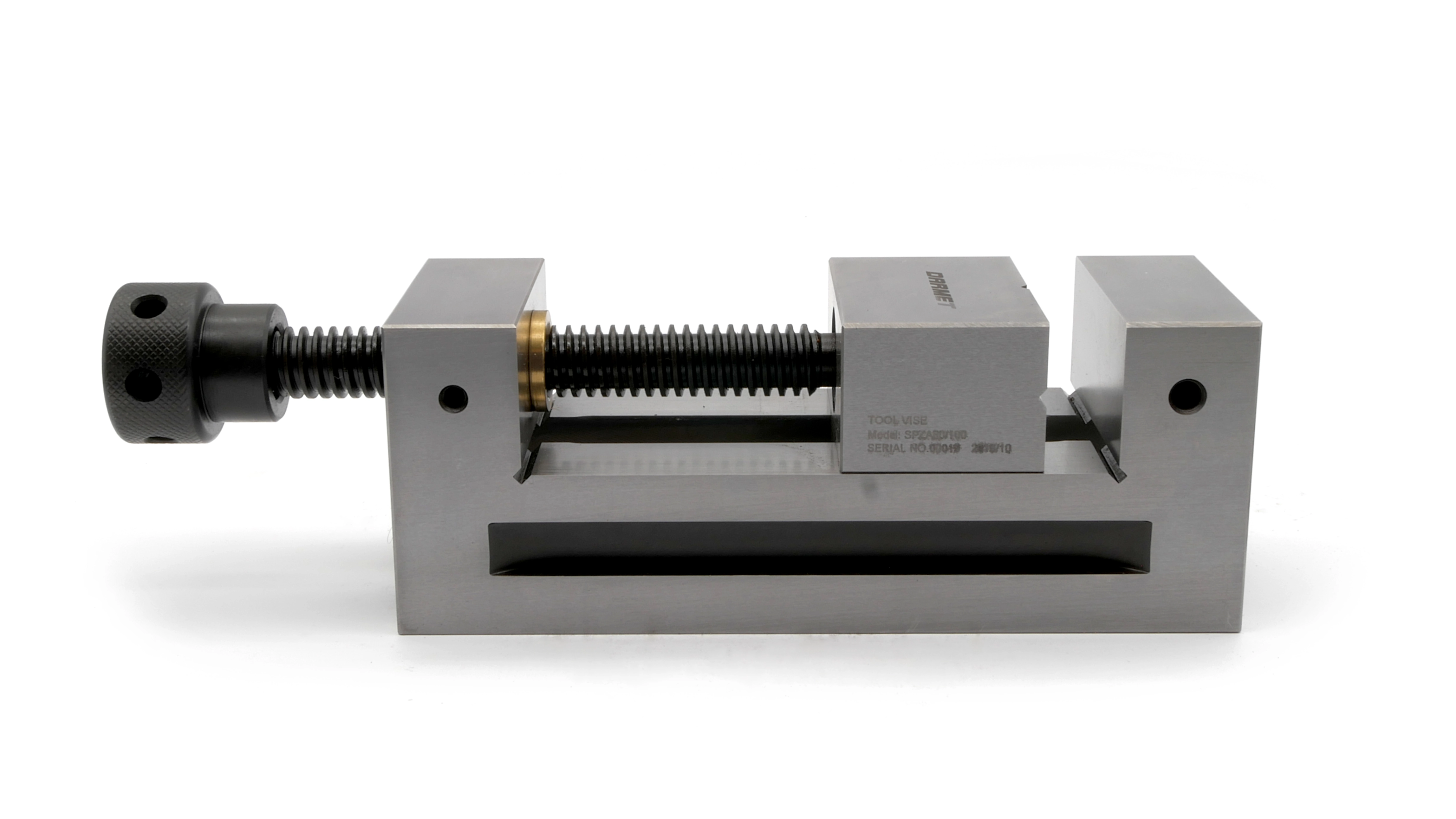

The bronze ring ensures self-lubrication and smooth movement of the feed screw.
Jaws perfectly parallel.
Jaw The movable part is narrower than the body, allowing it to be operated in a clamping position or sideways.
The holes in the screw handle allow for pressure using a hook wrench.
Vise accuracy:
Working in three positions:
