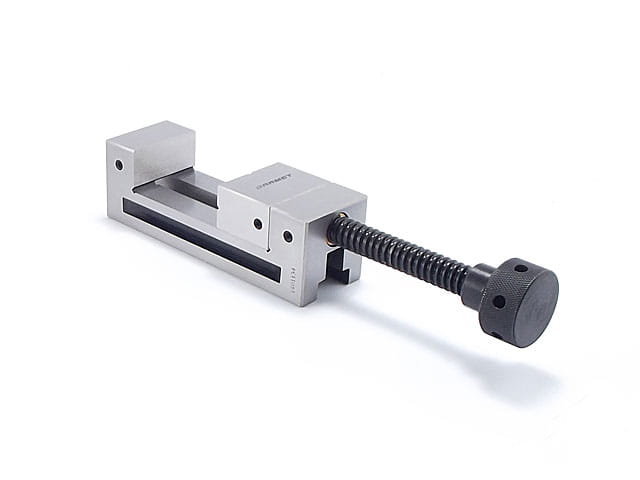

Professional precise grinding control vise made of steel 50x65 mm SPZA DARMET
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Information:
- Precisely made control vise for measurements and inspections.
- Narrower movable jaw relative to the entire body and fixed jaw allows its operation in a side position, as well as mounting on another vise.
- The body and fixed jaw form a monolithic whole.
- Prismatic movable jaw also allows clamping of shafts and other shapes.
- The material used is high-quality alloy steel.
- Working surfaces hardened to 58-62 HRC.
Specification:
| Parameter | Value |
|---|---|
| B | 50 mm |
| amax | 65 mm |
| h | 25 mm |
| L | 155 mm |
| H | 50 mm |
| Weight | 3.2 kg |
The bronze ring provides self-lubrication and smooth movement of the lead screw.
Perfectly parallel jaws.
Movable jaw narrower than the body allows its operation in mounting or sideways.
Holes in the screw handle allow pressure adjustment using a hook wrench.
Vise accuracy:
Operation in three positions:
