Description
Features and application:
- Quick change tool post (QCTP) for interchangeable toolholders, equipped with 2 dovetail mounting sockets.
- Enables tool mounting outside the machine, quick tool change, high precision, high rigidity, etc.
- A lever for quickly releasing or clamping the toolholder in the toolholder.
- Made of high-quality materials, it ensures long tool life.
- Complete set, ready to work.

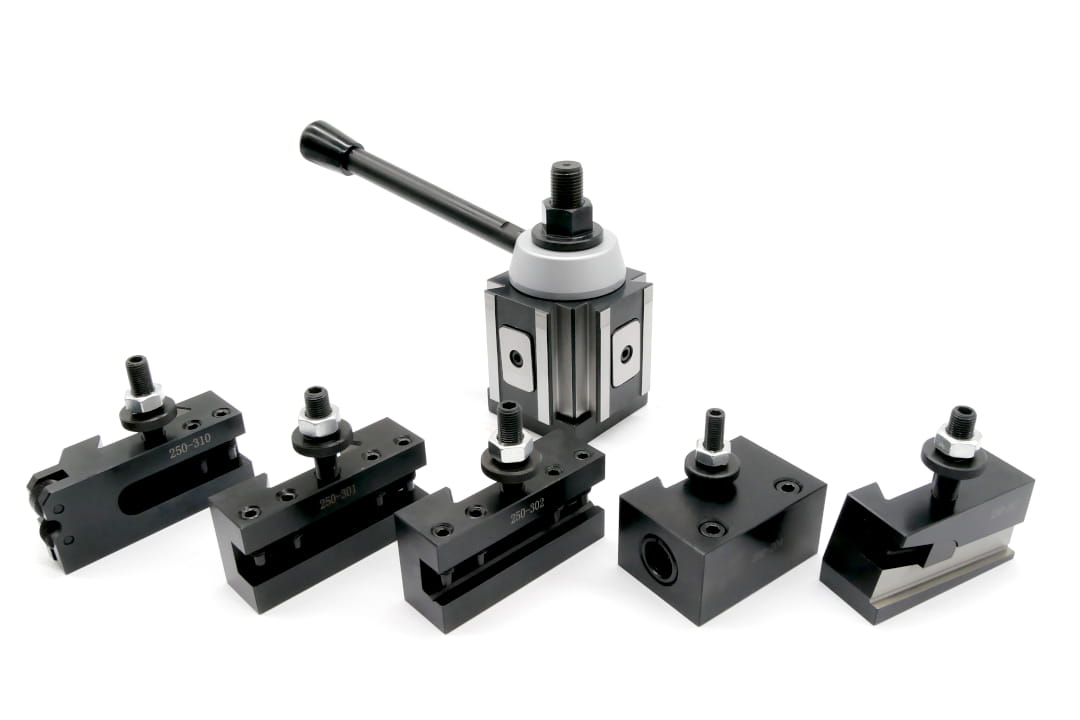

- Includes:
- Lathe post

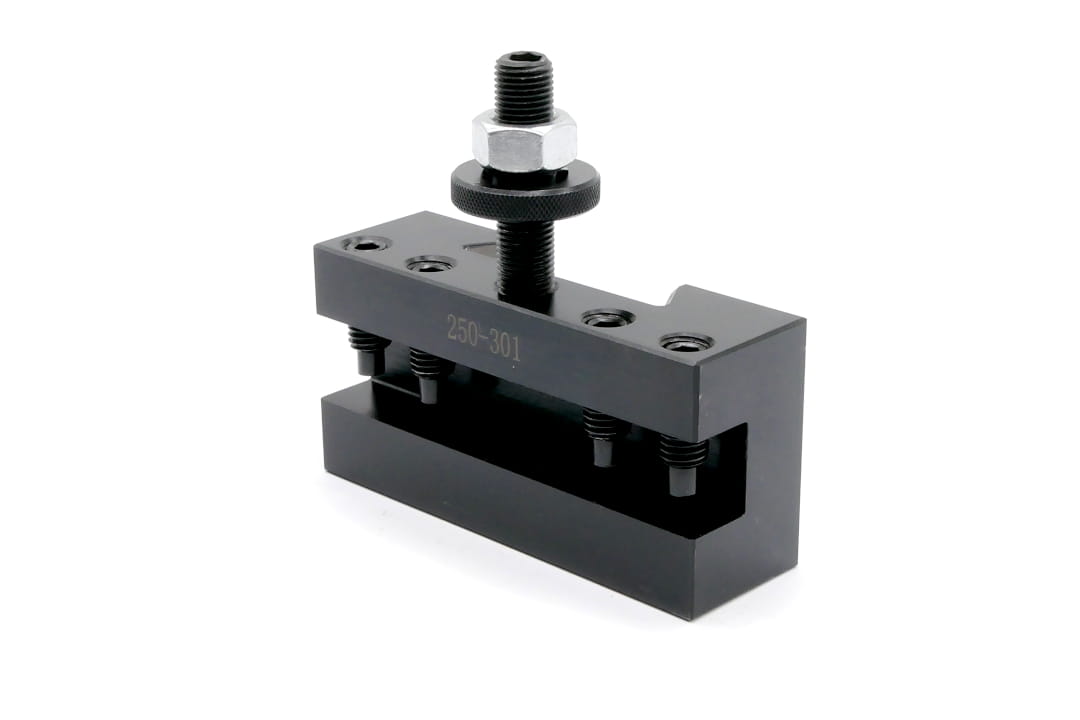

- Turning tool holder
- Drill holder

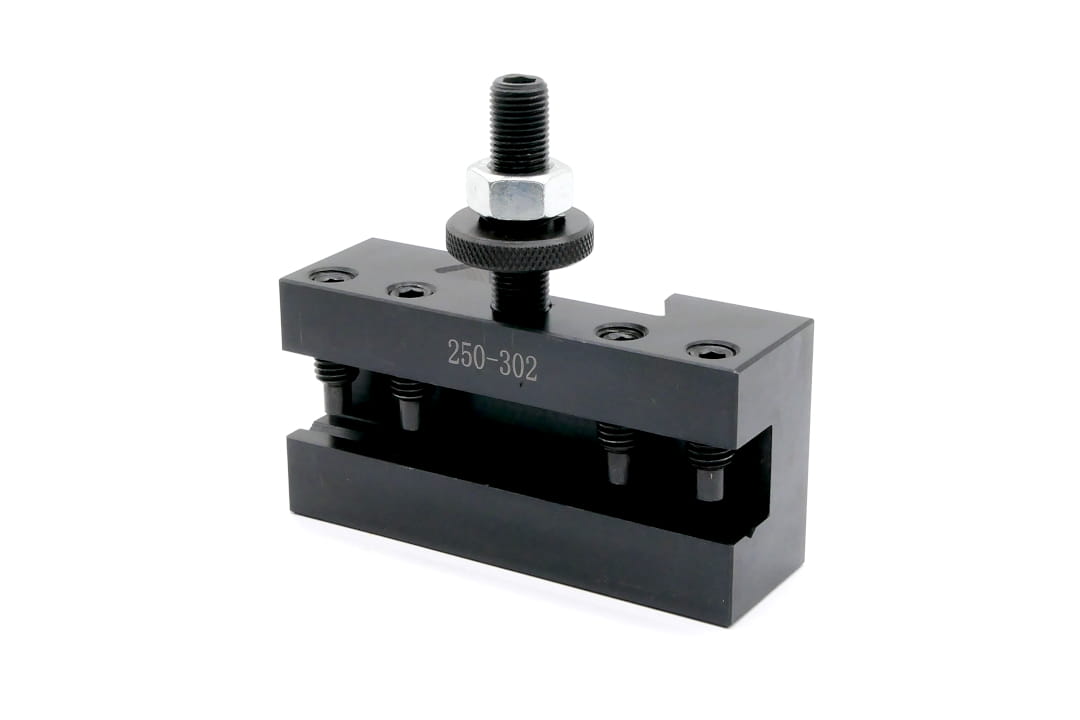

- Boring holder
- Knurling holder (2 inclined rollers)
- Blade holder cutting
Toolholder dimensions:
| Parameter | Value |
|---|---|
| A | 85 mm |
| B | 148 mm |
| C | 76 mm |
| D | 20 mm |
| Maximum diameter of the turned workpiece | 330 - 457 mm |
Dimensions of the toolholder:
| Parameter | Value |
|---|---|
| A | 38 mm |
| B | 19.05 mm |
| C | 16 mm |
| D | 54 mm |
| E | 35 mm |
| L | 109 mm |

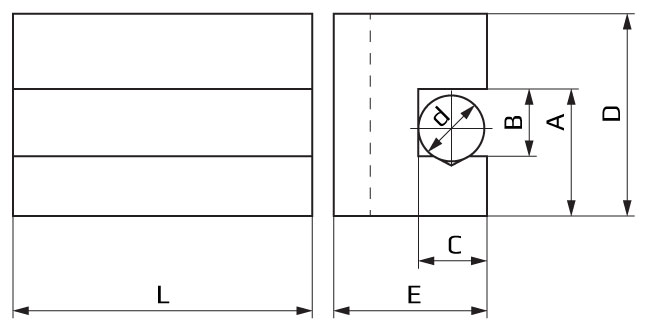

Dimensions of boring bar holder:
| Parameter | Value |
|---|---|
| d | 12 - 19 mm |
| A | 38 mm |
| B | 19.05 mm |
| C | 16 mm |
| D | 54 mm |
| E | 35 mm |
| L | 109 mm |
Dimensions of the drill holder:
| Parameter | Value |
|---|---|
| A | 22.2 mm |
| B | 44.4 mm |
| C | 19.05 mm |
| D | 25.4 mm |
| E | 61 mm |
| L | 89 mm |

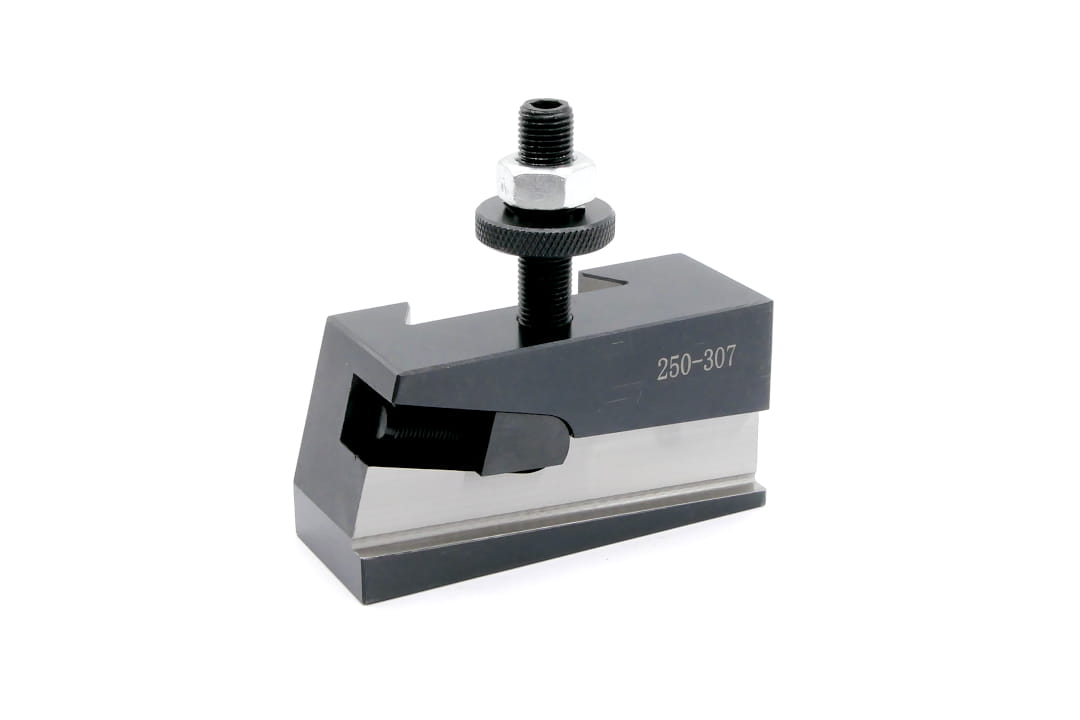

Dimensions of the cutting bar holder:
| Parameter | Value |
|---|---|
| A | 5 mm |
| B | 19.05 mm |
| C | 51 mm |
| E | 33.5 mm |
| L | 102 mm |

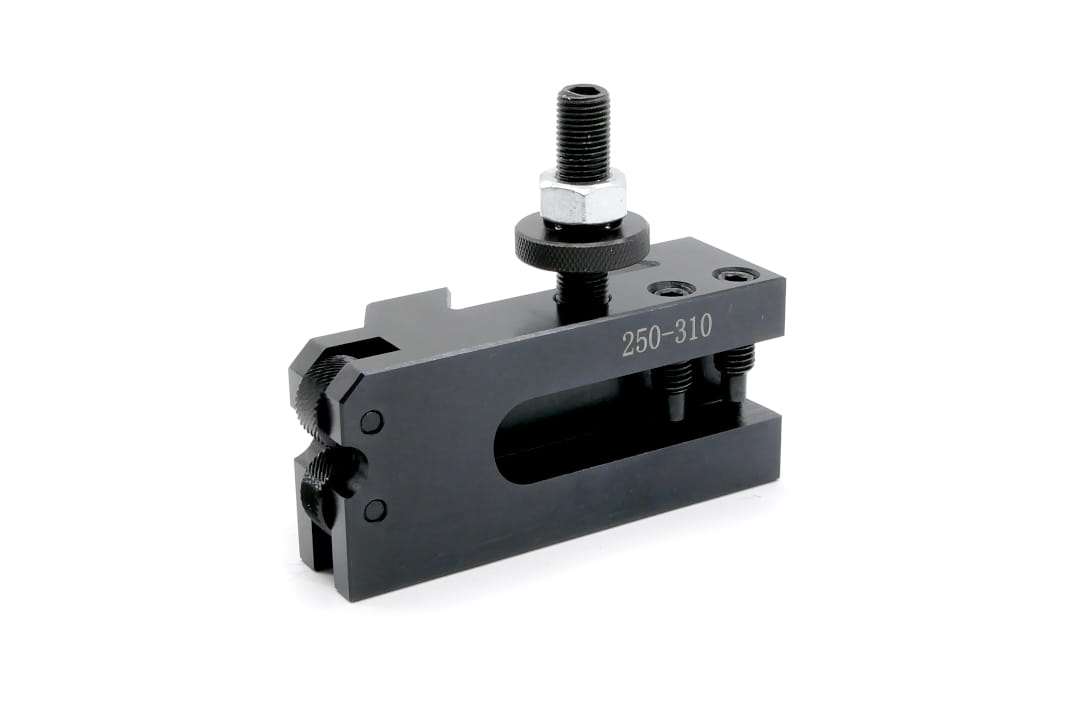

Knurling holder dimensions:
| Parameter | Value |
|---|---|
| A | 30 mm |
| B | 79 mm |
| C | 51 mm |
| D | 19.05 mm |
| E | 38 mm |
| L | 114 mm |
