Description
Features and Applications:

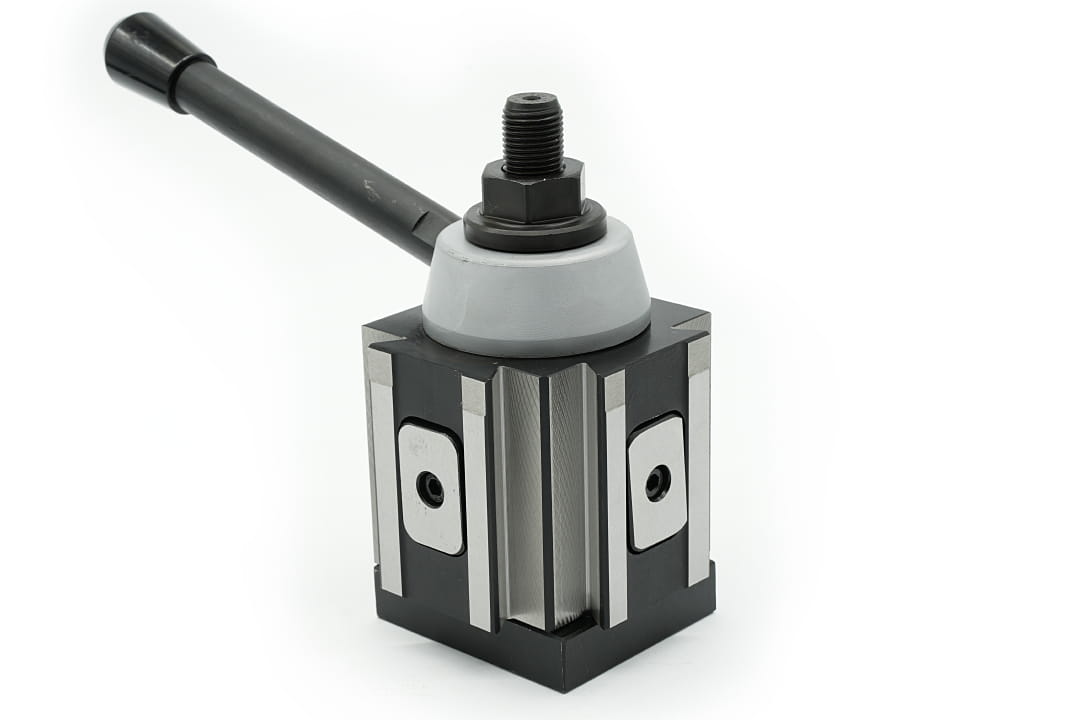

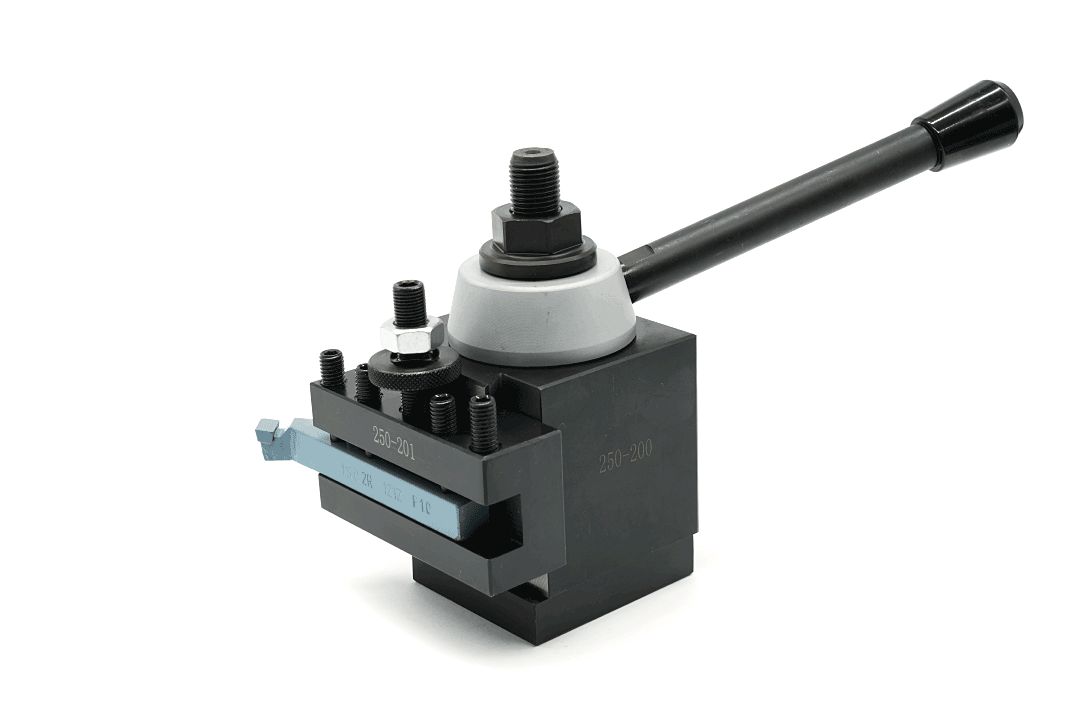

- Quick Change Toolholder (QCTP) for interchangeable toolholders is equipped with 2 dovetail mounting sockets.
- Allows for mounting tools outside the machine tool, quick tool change, high precision, and high rigidity.
- A lever allows for quick release or clamping of the toolholder in the toolholder.
- Made of high-quality materials, the tool ensures long service life.

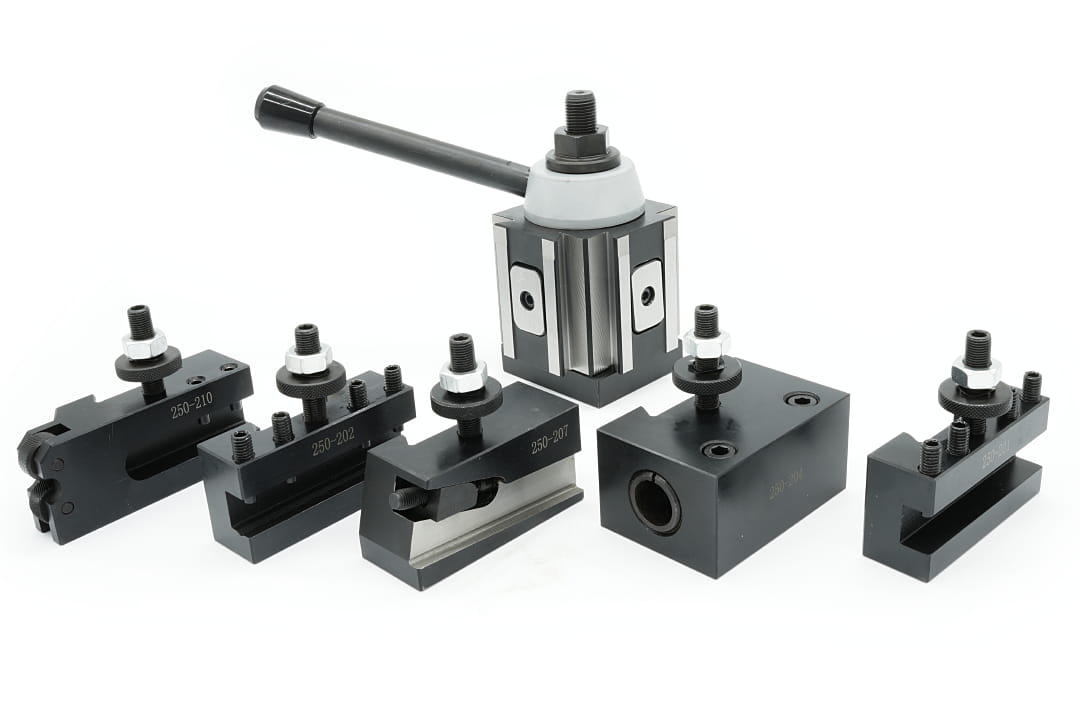

- The set is complete and ready to use, including:
- Lathe toolholder

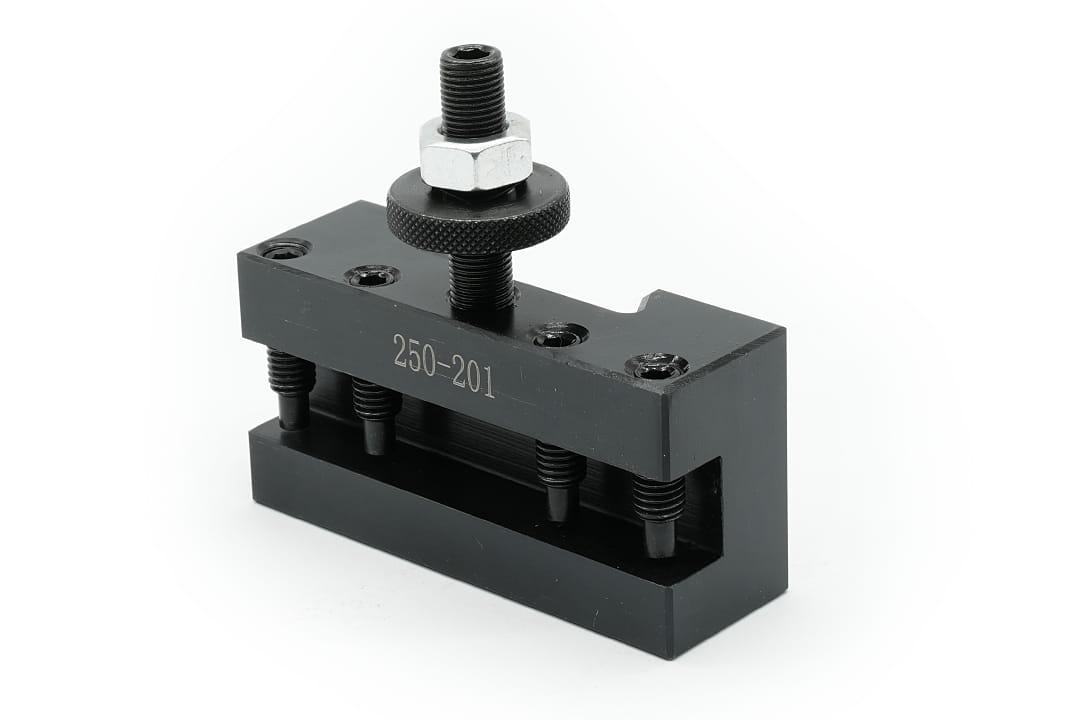

- Turning toolholder
- Drill holder

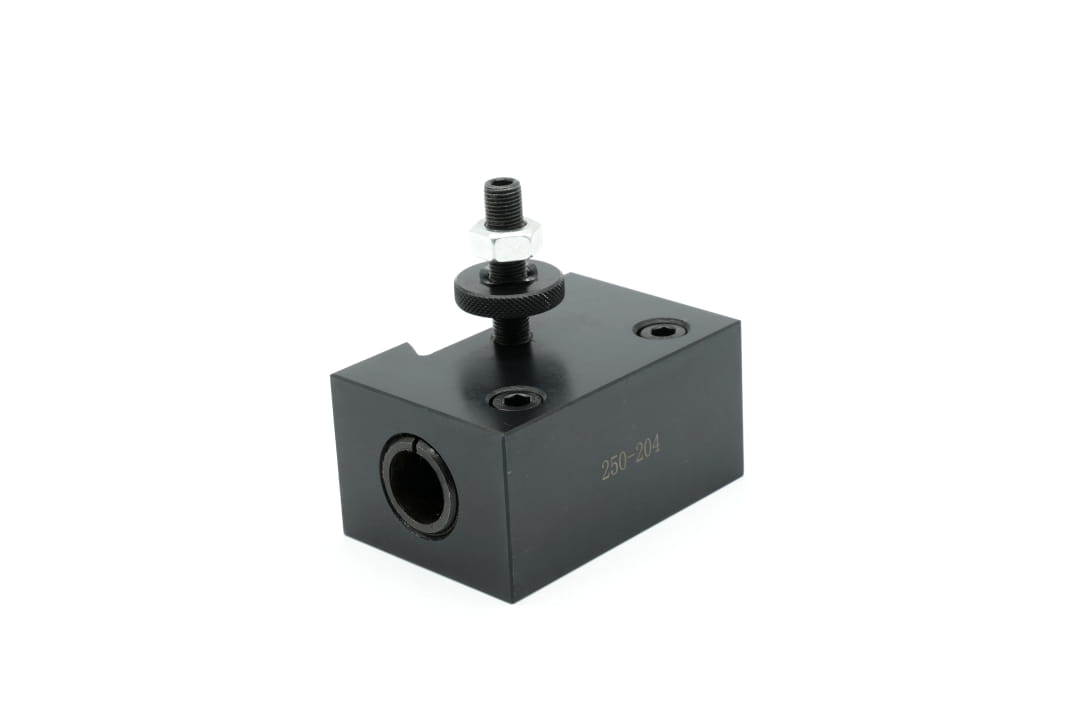

- Boring holder

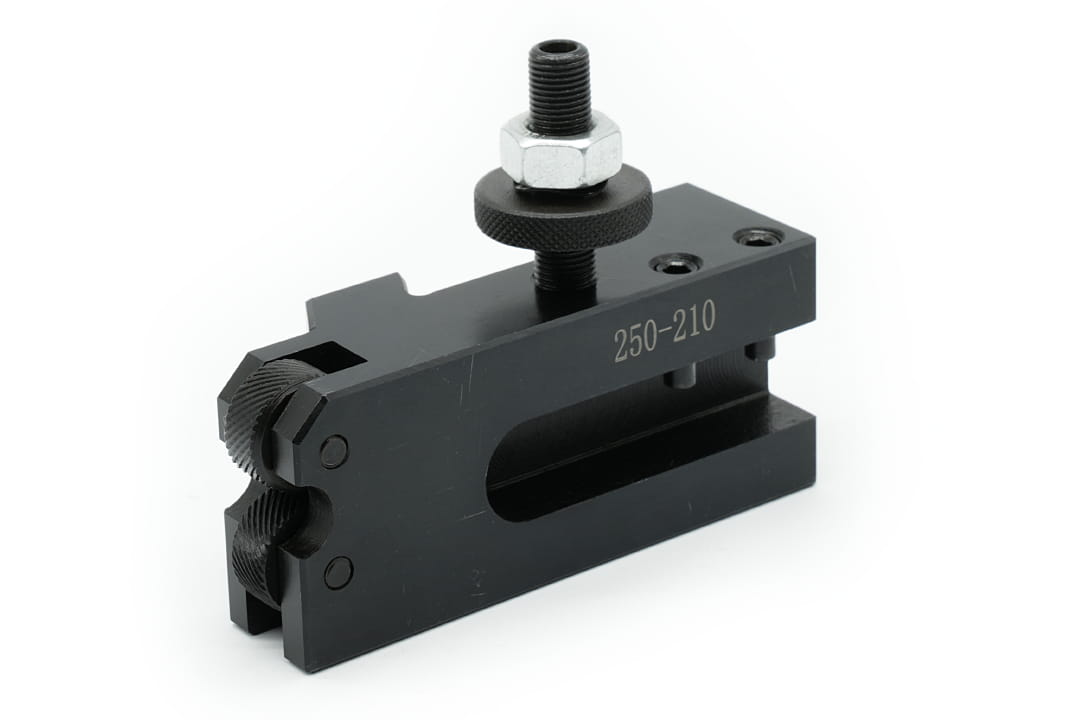

- Knurling holder (2 inclined rollers)

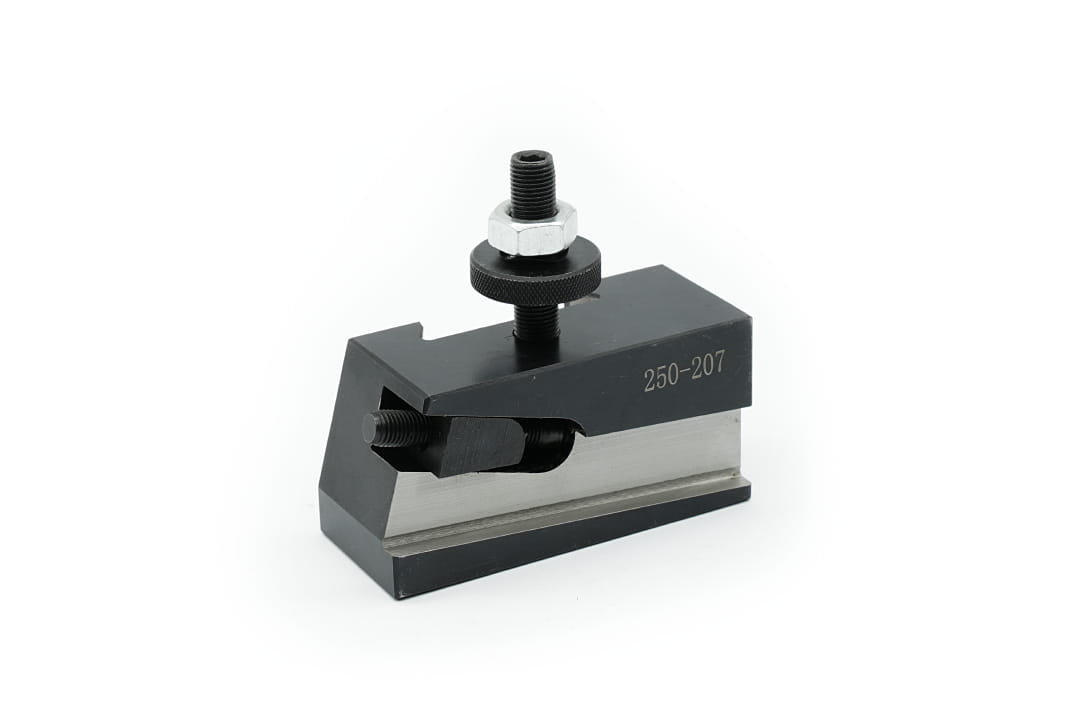

- Cutting-off blade holder

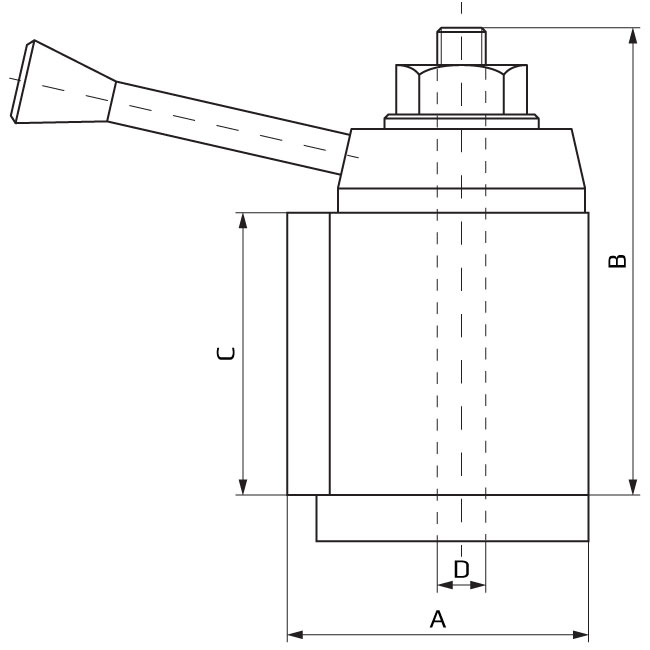

Toolholder dimensions:
| Parameter | Value |
|---|---|
| A | 76 mm |
| B | 131 mm |
| C | 70 mm |
| D | 16 mm |
| Maximum diameter of the turned object | 250 - 380 mm |

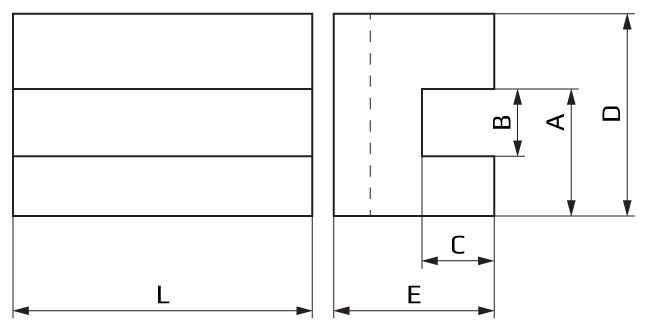

Dimensions of the cutter holder:
| Parameter | Value |
|---|---|
| A | 29.7 mm |
| B | 15.8 mm |
| C | 70 mm |
| D | 44.8 mm |
| E | 30 mm |
| L | 88.5 mm |
Boring bar holder dimensions:
| Parameter | Value |
|---|---|
| d | 6.5 - 16 mm |
| A | 29.7 mm |
| B | 15.8 mm |
| C | 70 mm |
| D | 44.8 mm |
| E | 30 mm |
| L | 88.5 mm |

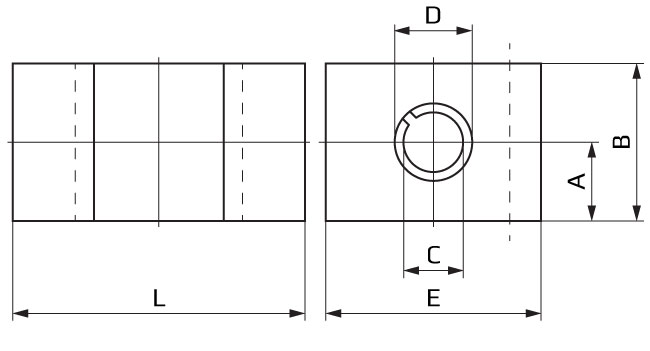

Dimensions of the drill holder:
| Parameter | Value |
|---|---|
| A | 22.2 mm |
| B | 44.4 mm |
| C | 19.05 mm |
| D | 25.4 mm |
| E | 61 mm |
| L | 89 mm |

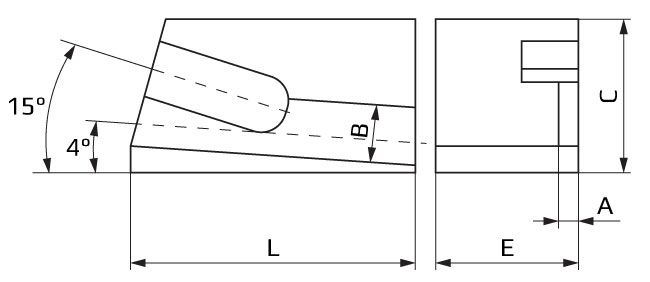

Dimensions of the cutting bar holder:
| Parameter | Value |
|---|---|
| A | 5 mm |
| B | 18.5 mm |
| C | 44.4 mm |
| E | 37.5 mm |
| L | 89 mm |

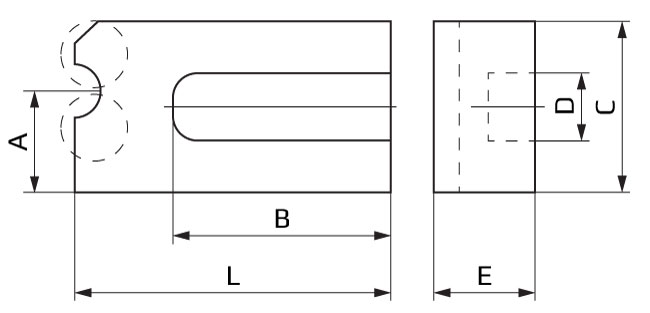

Knurling holder dimensions:
| Parameter | Value |
|---|---|
| A | 25.4 mm |
| B | 68 mm |
| C | 44.4 mm |
| D | 17 mm |
| E | 33.2 mm |
| L | 102 mm |
