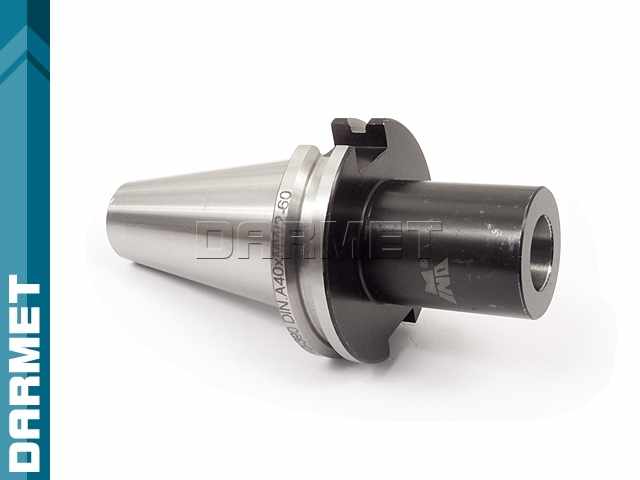

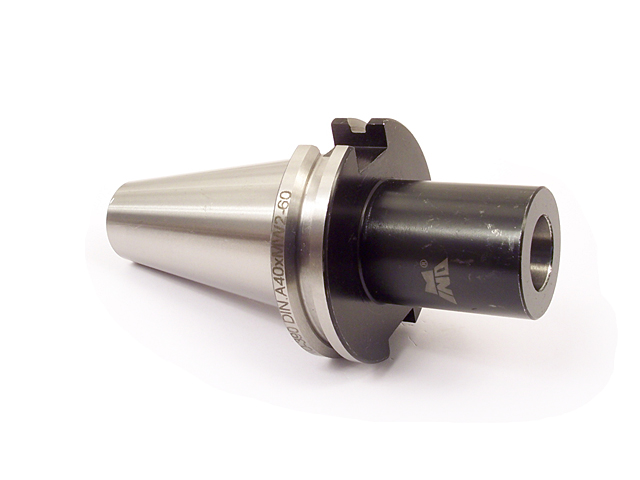

Reducing Sleeve DIN40 / MK2 Morse with Thread - DARMET (DM-390)
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Information:

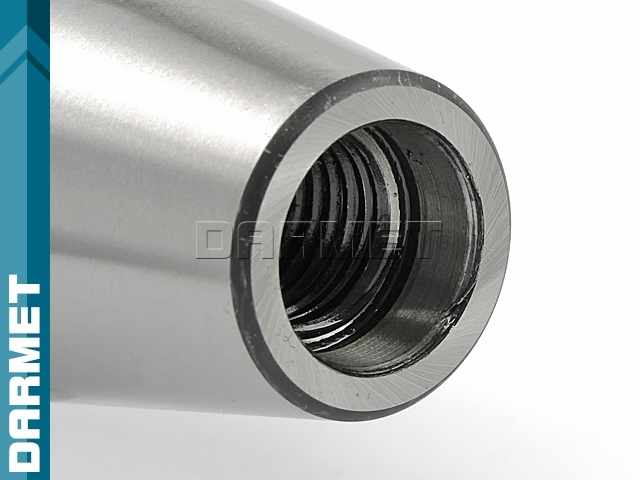

- Reduction sleeve designed for Morse taper tools with thread (DIN228-A).
- The taper holder according to DIN 69871 DIN40 with an internal thread M16 is used in conventional machines and those with automatic tool changing.
- The external and internal taper is ground.
- To conveniently mount the tool in the holder, you can use the mounting base (not included).
- For automatic For replacements in CNC machines, use puller tips screwed directly into the holder.
Specification:
| Parameter | Value |
|---|---|
| K (DIN69871) | SK40 |
| K1 (Morse) | MK2 |
| D | 32 mm |
| D1 | 44.45 mm |
| L | 128.4 mm |
| L1 | 60 mm |
| Thread | M16 |
| Weight | 1.3 kg |
