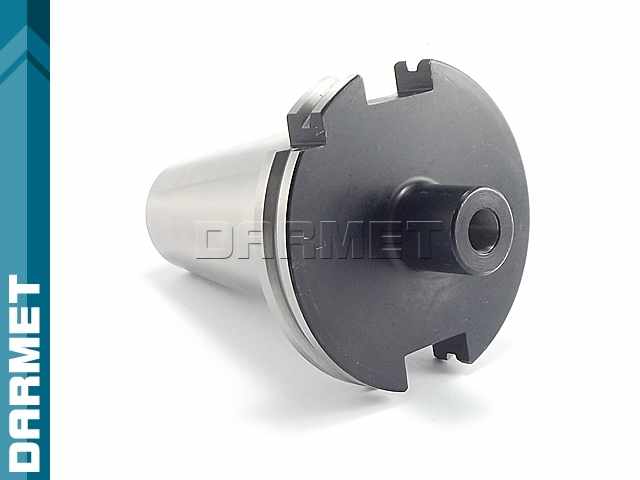

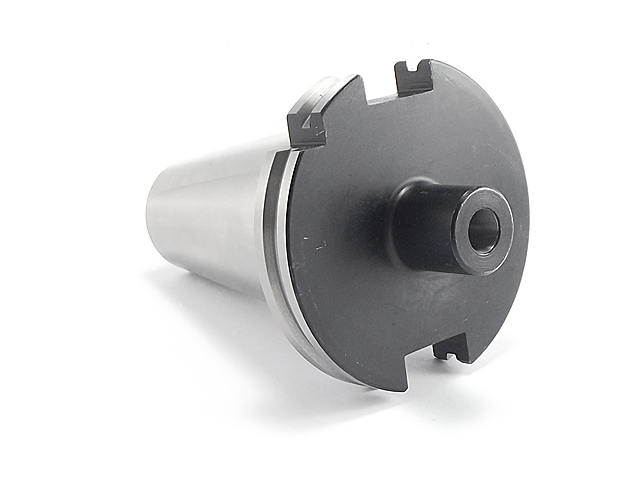

Reducing Sleeve DIN50 / MK1 Morse with Thread - DARMET (DM-390)
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Information:
- Reduction sleeve designed for Morse taper tools with thread (DIN228-A).
- The taper holder according to DIN 69871 DIN50 with an internal thread M24 is used in conventional machines and those with automatic tool changing.

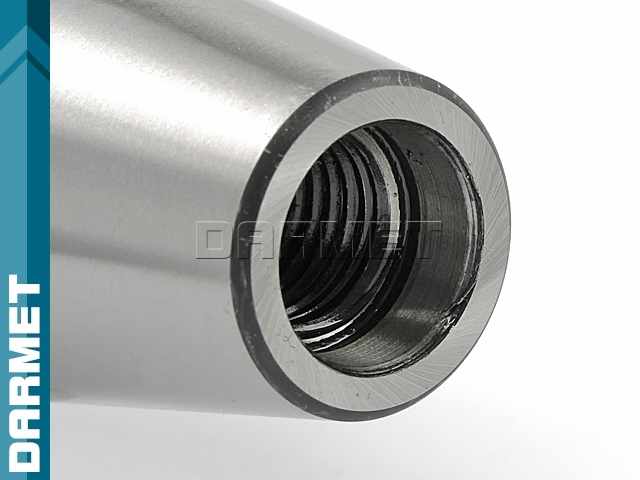

- The external and internal taper is ground.
- To conveniently mount the tool in the holder, you can use the mounting base (not included).
- For automatic For replacements in CNC machines, use puller tips screwed directly into the holder.
Specification:

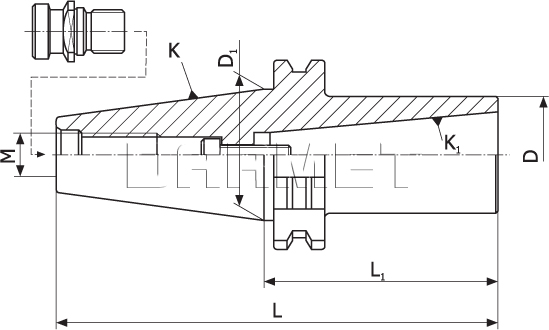

| Parameter | Value |
|---|---|
| K (DIN69871) | SK50 |
| K1 (Morse) | MK1 |
| D | 25 mm |
| D1 | 69.85 mm |
| L | 146.8 mm |
| L1 | 45 mm |
| Thread | M24 |
| Weight | 2.6 kg |
