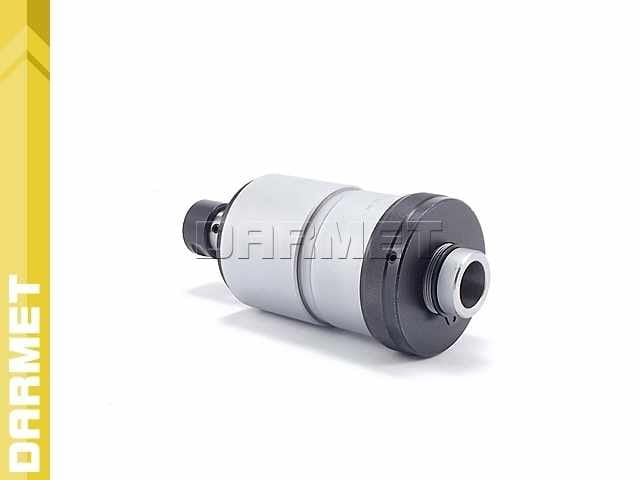

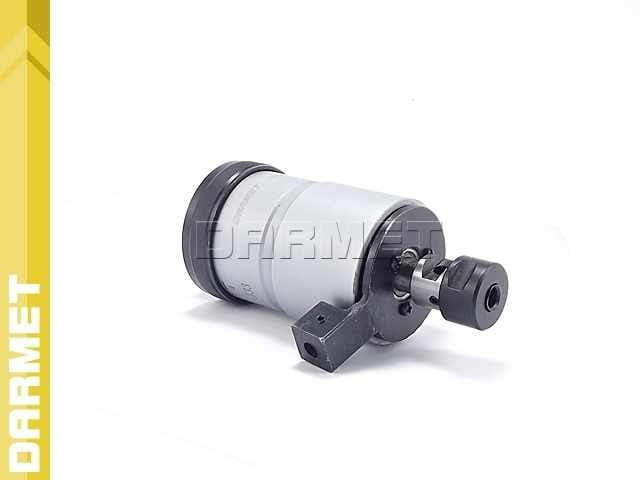

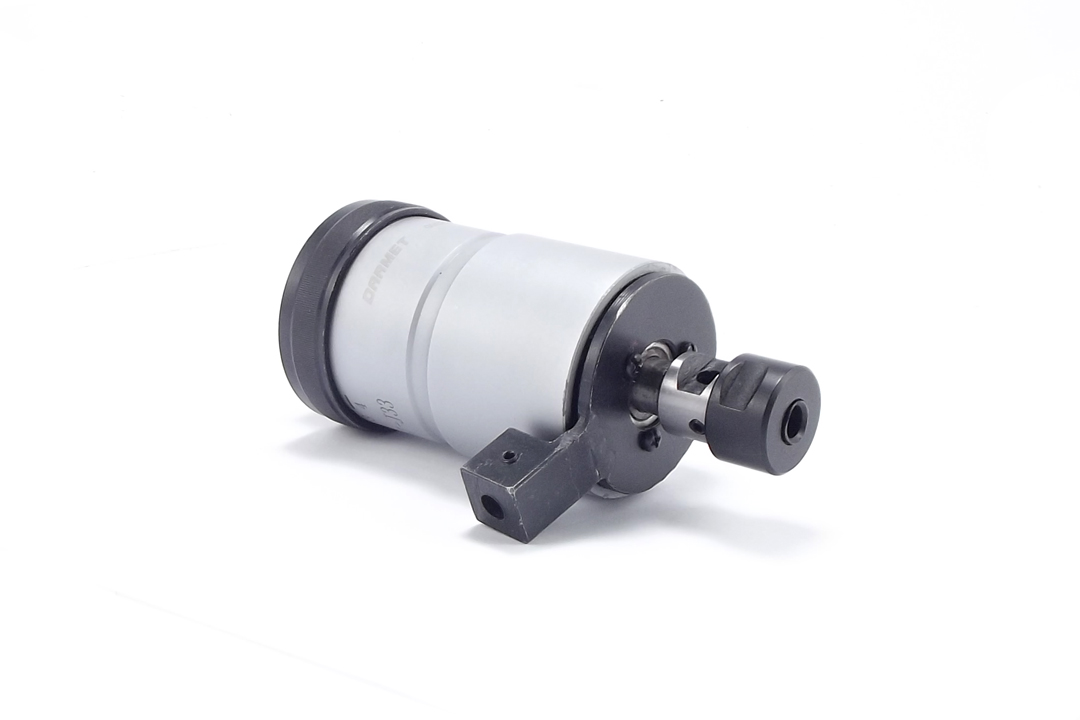

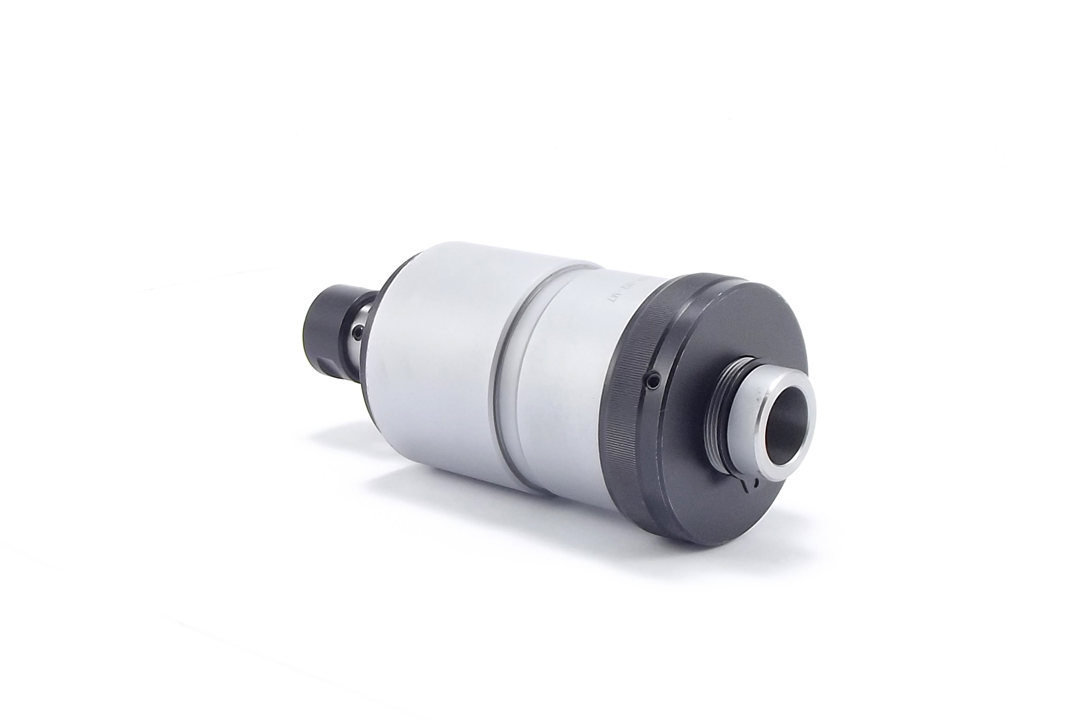

Reversible Threading Head, Thread M2 - M7 (GGZR)
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$298.63
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$242.79
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
GLO_GGZR_M2_7
Description
Features and application:
- A set consisting of a clamping chuck and flexible rubber-flex sleeves for clamping machine taps.
- The clamping chuck includes a device for axial compensation and overload protection
- 4 - torque adjustment positions.
- The design of the chuck ensures the operation of the head with reversal (forward and reverse rotation), there is no need to change the direction of rotation of the machine spindle.
- Application: For right-hand threads of table and column drills and all machines with manual and irreversible feed direction of rotation.
- Fast return gear (gear ratio 1.75:1).
- Speed ratio right to opposite: 1 : 1.6.
- Attention! The threader is not intended for use with thread formers.
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| Range Thread | M2 - M7 | |
| Axial compensation amount | 3.5 | mm |
| Shank / taper | Morse MK2 / J33 Morse MK3 / J33 | |
| Clamping diameter | 2.5 - 4.2 4.2 - 6.5 | mm |
| Maximum speed | 1500 | rpm |
| D | 23 | mm |
| D1 | 55 | mm |
| L | 135 | mm |
| L1 | 95 | mm |
| Weight | 2.0 | kg |
Scheme operating:

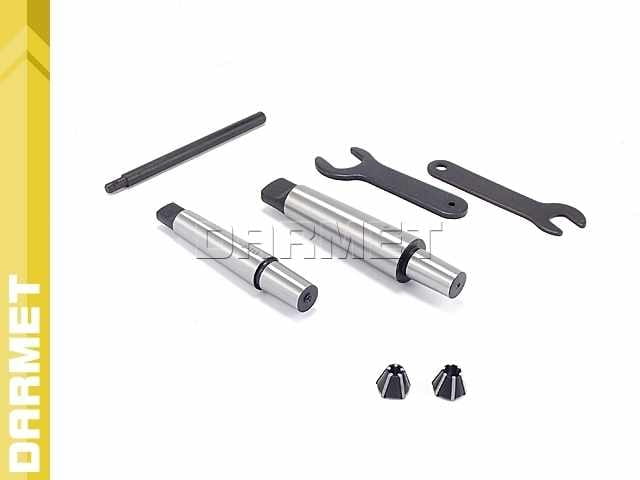

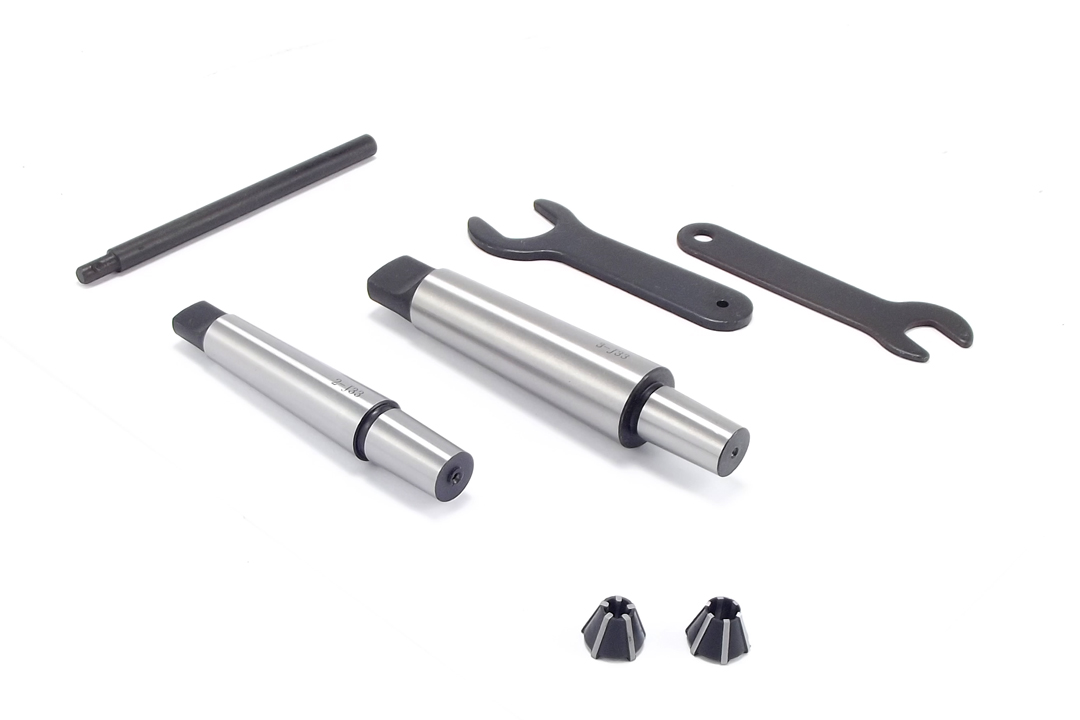

Equipment:
| Holder | 1 pc. |
| Morse taper holder | 2 pcs. |
| RUBBERFLEX clamp | 2 pcs. |
| Brake rod | 1 pc. |
| Key | 3 pcs |
