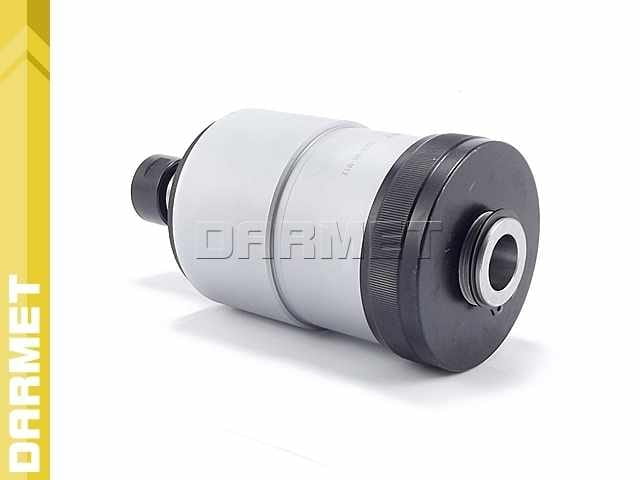

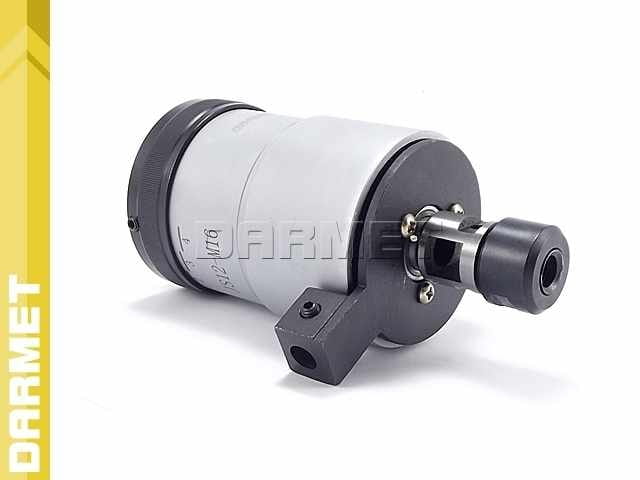

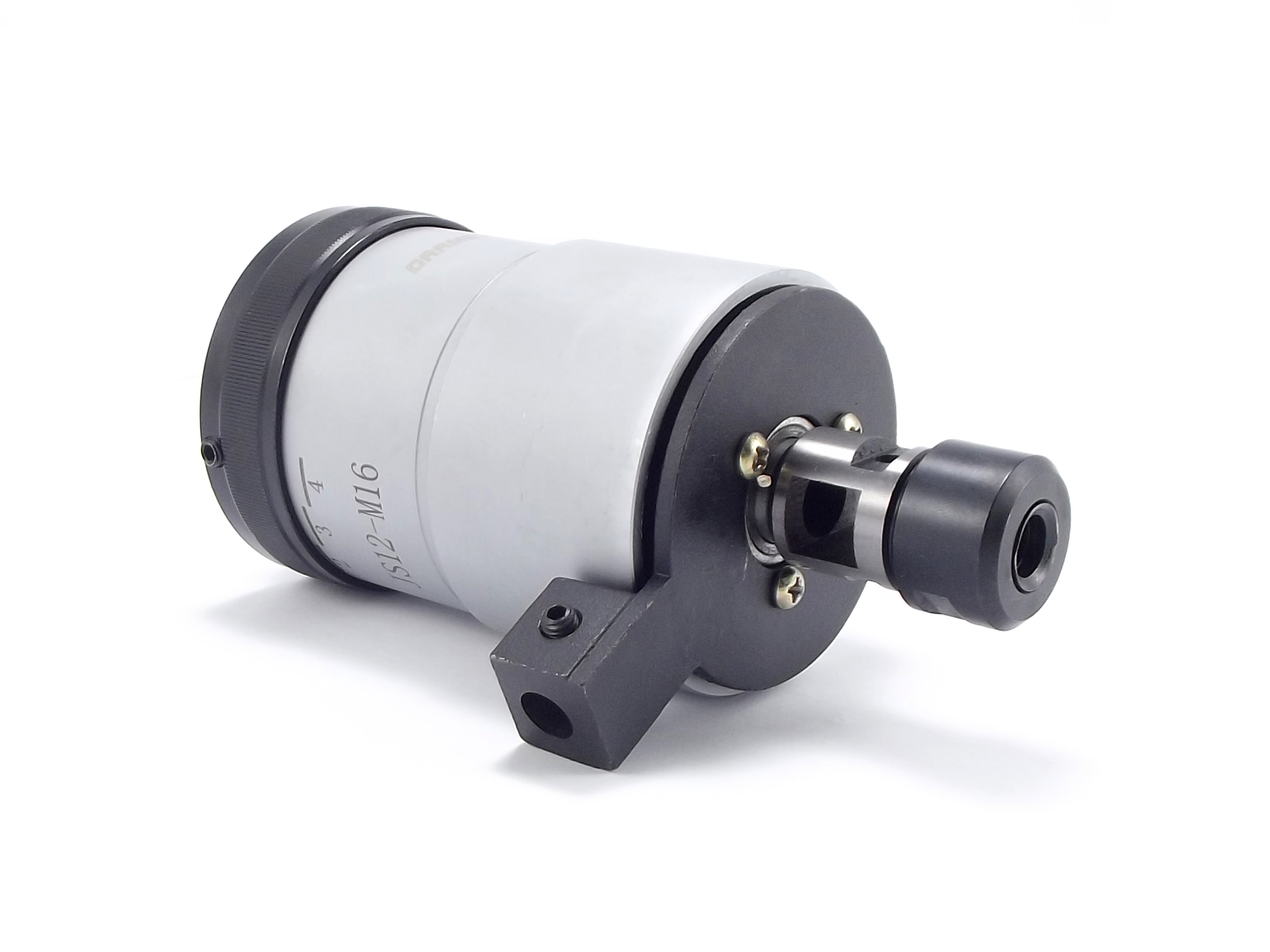

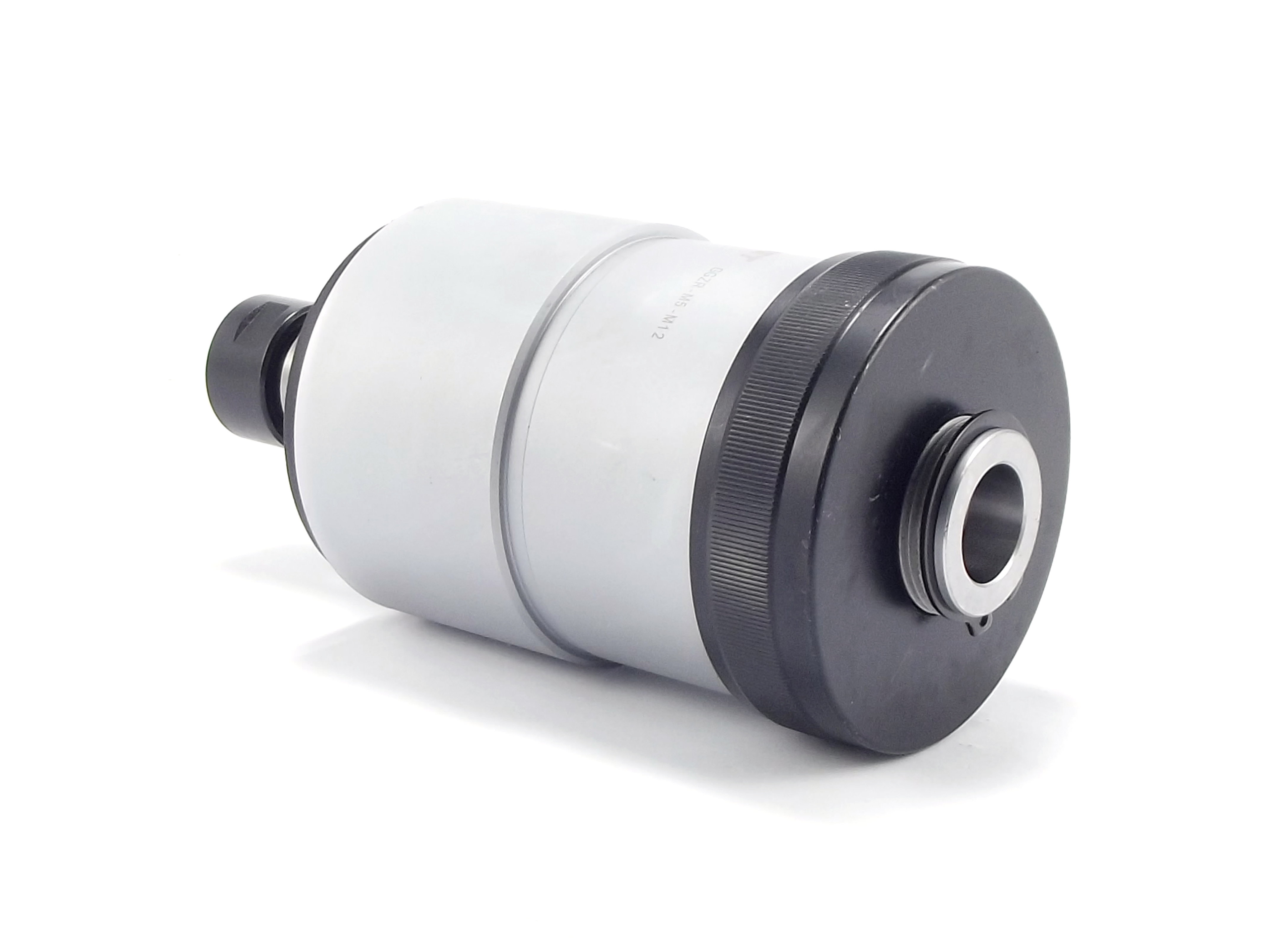

Reversible Threading Head, Thread M5 - M12 (GGZR)
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$413.36
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$336.07
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
GLO_GGZR_M5_12
Description
Features and application:
- Set consisting of a clamping holder and flexible rubber-flex sleeves for clamping machine taps
- The clamping holder includes a device for axial compensation and overload protection
- 4 - positions of torque adjustment
- The design of the holder ensures the operation of the head with reversal (forward and reverse rotation), there is no need to change the direction of rotation of the machine spindle
- Application: For right-hand threads of table and column drills and all machines with manual feed and irreversible direction of rotation
- Fast running return (gear ratio 1.75:1)
- Speed ratio correct to opposite: 1 : 1.75
- Note: the threader is not intended for use with threading taps
- When threading, use special preparations, e.g. Terebor fluid
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| Thread range | M5 - M12 | |
| Axial compensation amount | 5 | mm |
| Shank / thread | Morse 3 / M16 Morse 4 / M16 | |
| Clamping diameter | 3.5 - 7.0 7.0 - 10.0 | mm |
| Maximum speed | 1000 | rpm |
| D | 28 | mm |
| D1 | 75 | mm |
| L | 164 | mm |
| L1 | 114.5 | mm |
| Weight | 4.5 | kg |
Operational diagram:

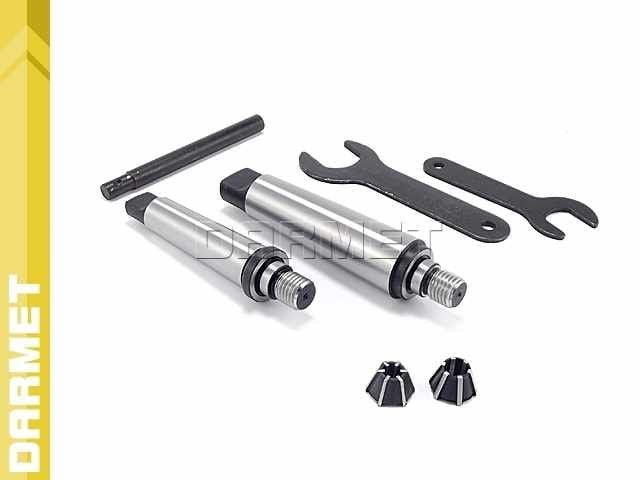

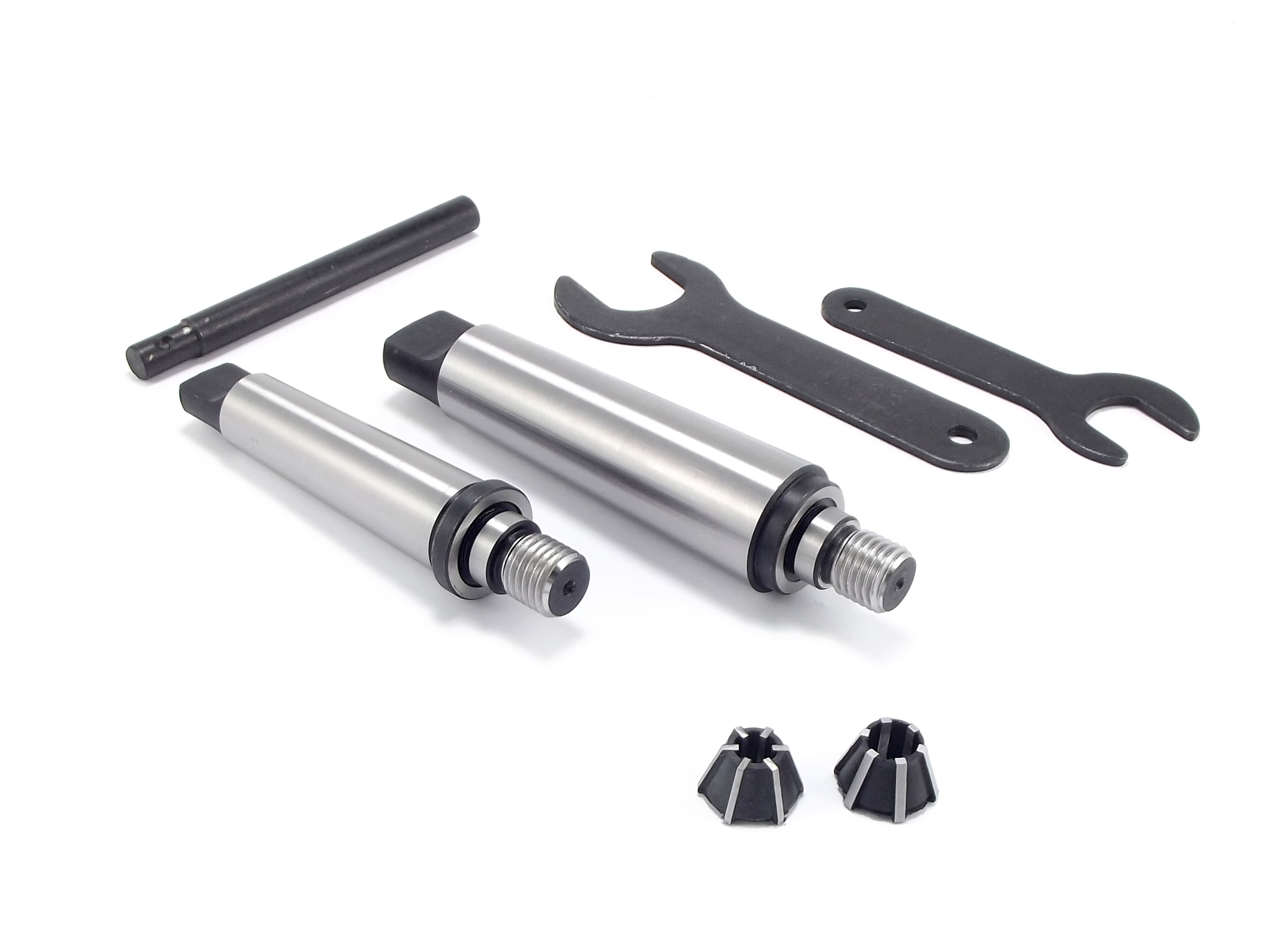

Equipment:
| Holder | 1 pc. |
| Morse taper holder | 2 pcs. |
| RUBBERFLEX clamp | 2 pcs. |
| Brake rod | 1 pc. |
| Key | 3 pcs |
