Rotary machine vise for milling machine 100x80 mm FQ DARMET
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$97.94
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$79.63
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_IM_FQ_100_80
Description
Information:

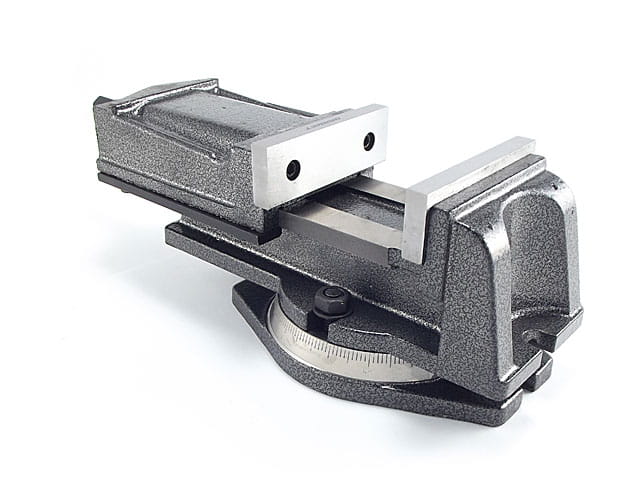

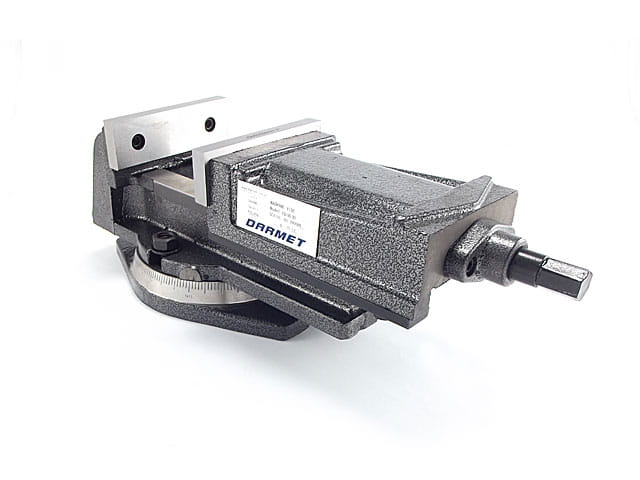

- Cast iron vise for universal use on grinders, milling machines, drills, or other CNC machines.

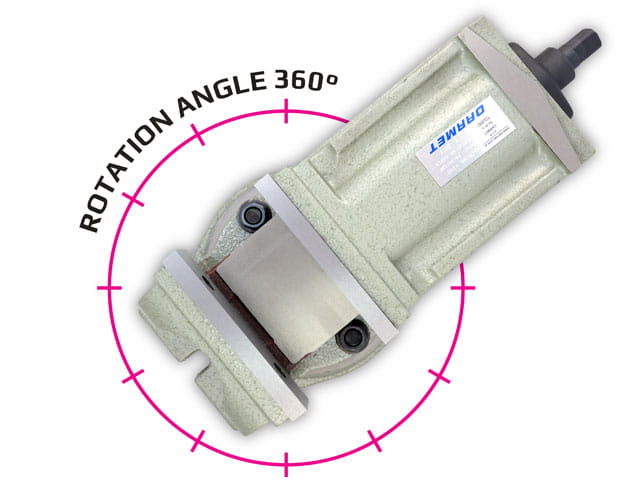

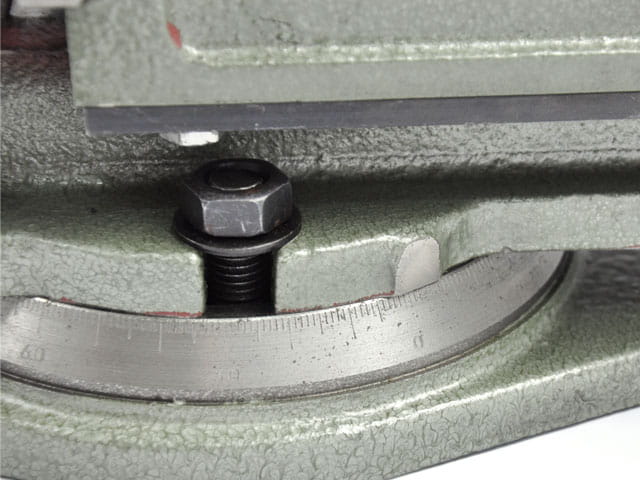

- Swivel base with a 360° scale, adjustable every 1°, allowing full rotation, and also detachable to provide tool versatility.

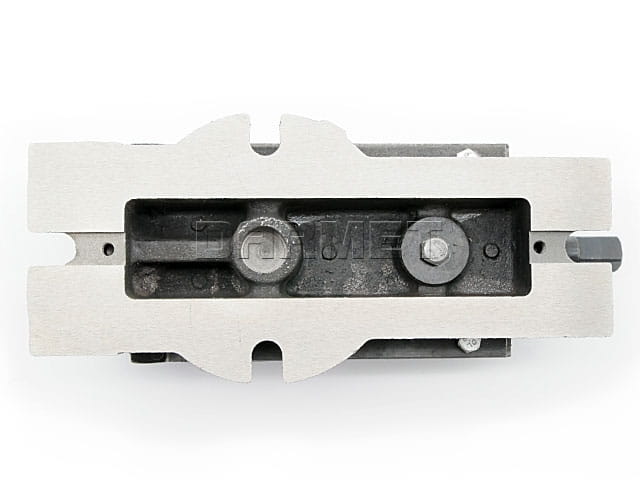

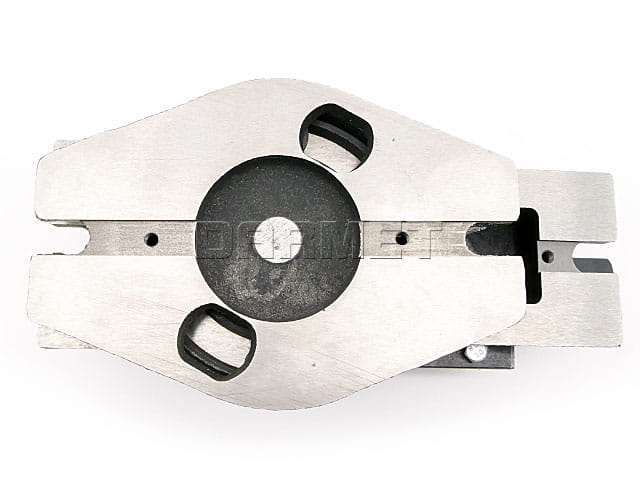

- Precise mounting of the device on a machining table, e.g., with T-slots, is possible thanks to special longitudinal grooves in the swivel base and vise body, using a universal clamping element set, as well as ground keys.
- The pull screw is fully enclosed within the body, which significantly protects it from jamming and damage caused by various contaminants and chips generated during machining.
- The full surface of the bed is also an advantage for clamping semi-finished products, making it much easier to achieve a stable position.
- If you need to clamp an object smaller than the vise jaws, use parallel shims of a length close to the width of the jaw inserts.
- The simple design of the jaw inserts is another benefit, allowing quick and inexpensive copying and replacement on your own or economical purchasing.
- When replacing jaw inserts, their working surfaces connected to the vise must be milled to achieve the precision parameters specified in the technical documentation.
- All screws used have universal hex heads, so every user can disassemble necessary parts independently and perform required tasks (cleaning, component replacement, etc.).

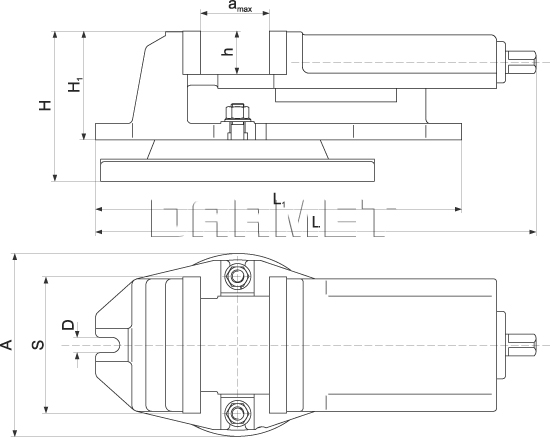

Specification:
| Parameter | Value |
|---|---|
| S | 100 mm |
| amax | 80 mm |
| h | 35 mm |
| H1 | 82 mm |
| H | 107 mm |
| A | 131 mm |
| Lmin | 265 mm |
| L1 | 243 mm |
| D (groove width for keys) | 14 mm |
| Width of locating keys | 14 mm |
| Weight | 9.5 kg |
Included:
- vise - 1 piece

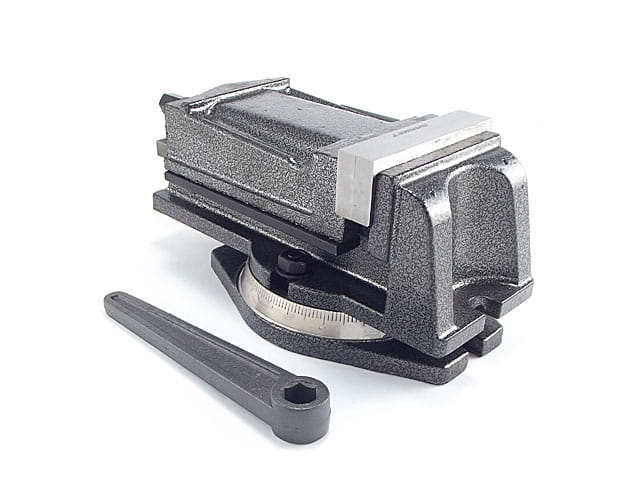

- handle - 1 piece
- blackened locating keys with screws - 2 pieces
- mounting screws with washers and nuts - 4 pieces
Not sure which vise to choose? Check the DARMET vise guide.
Which keys should I select for my vise?
