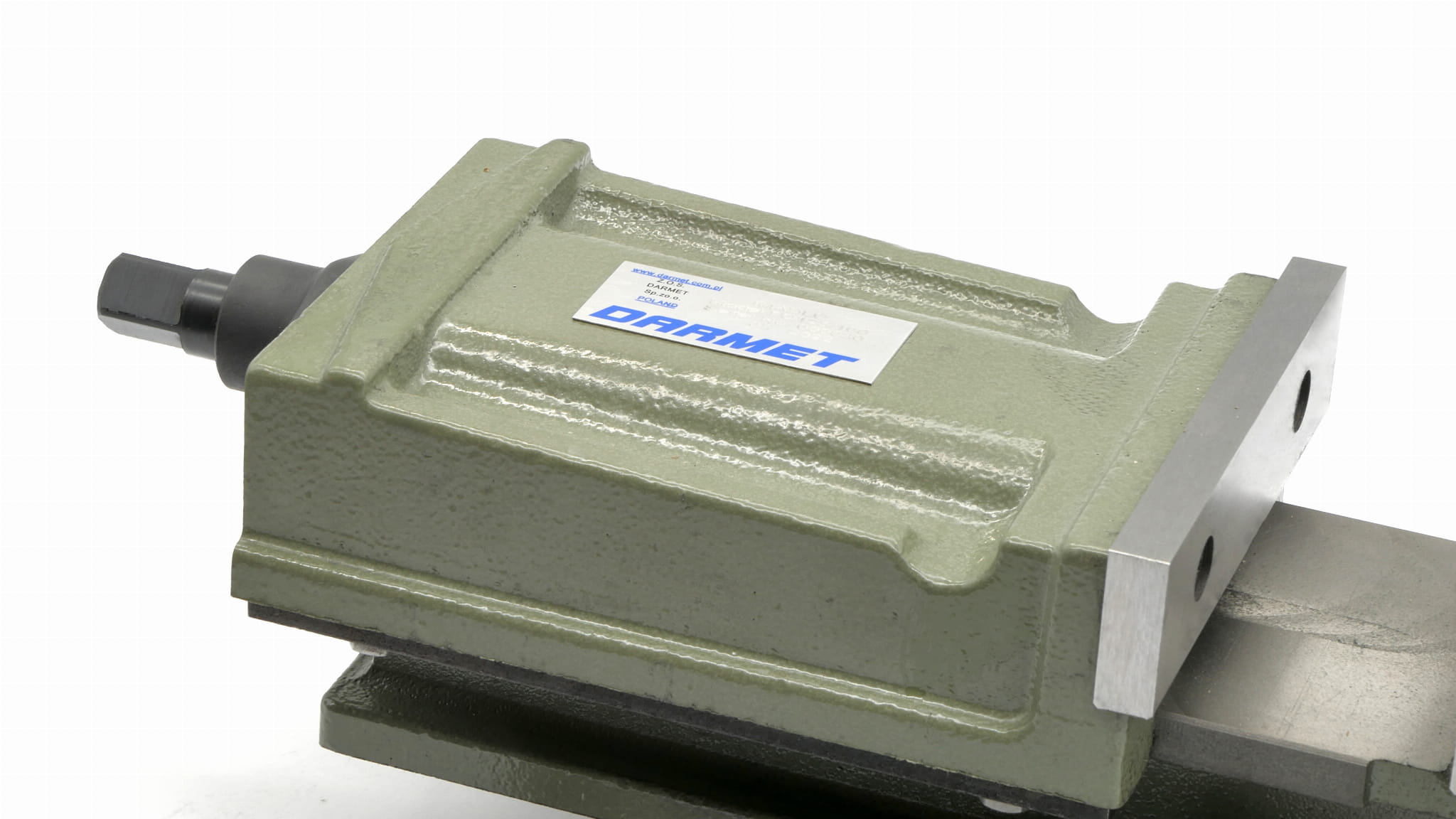

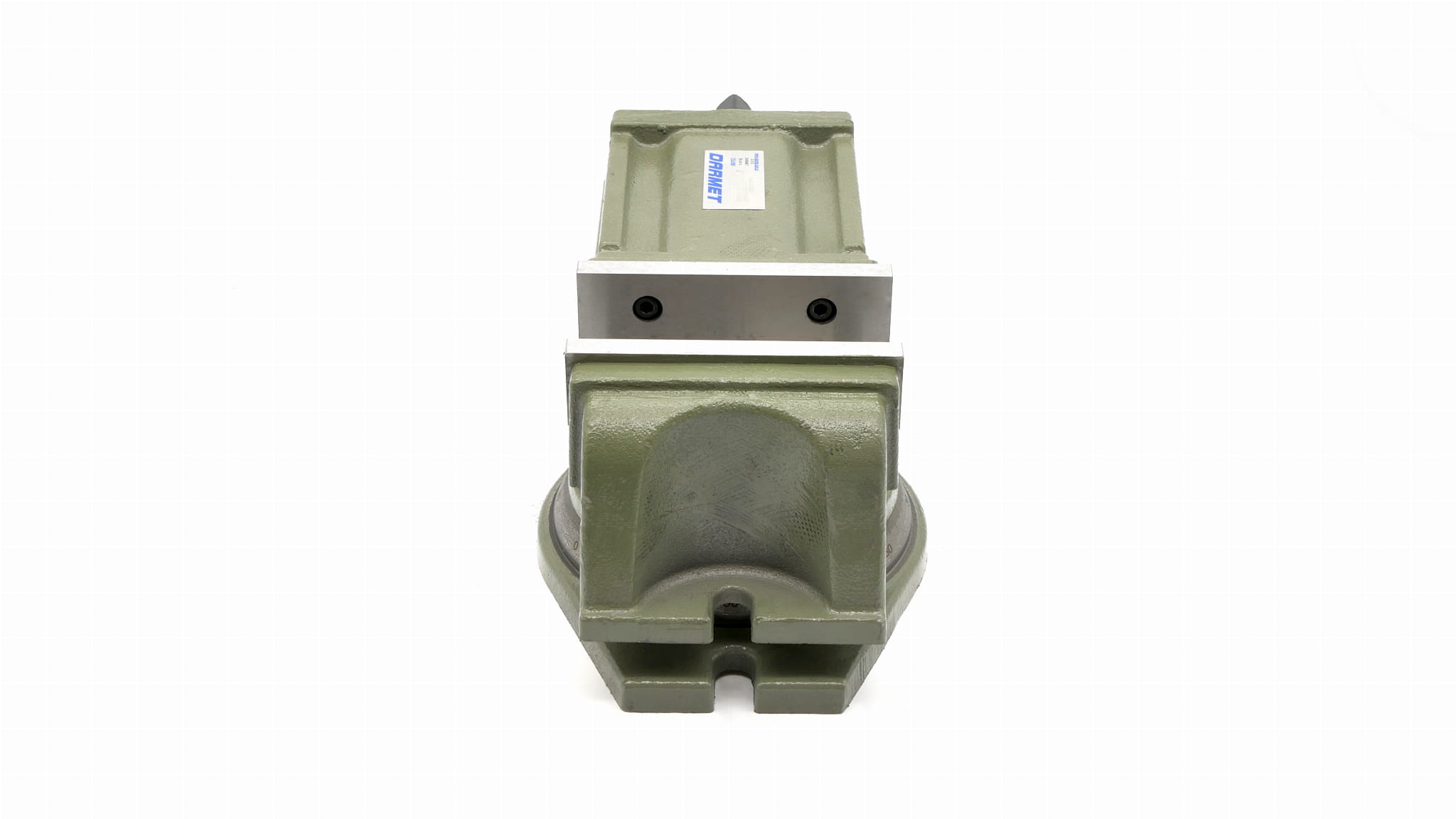

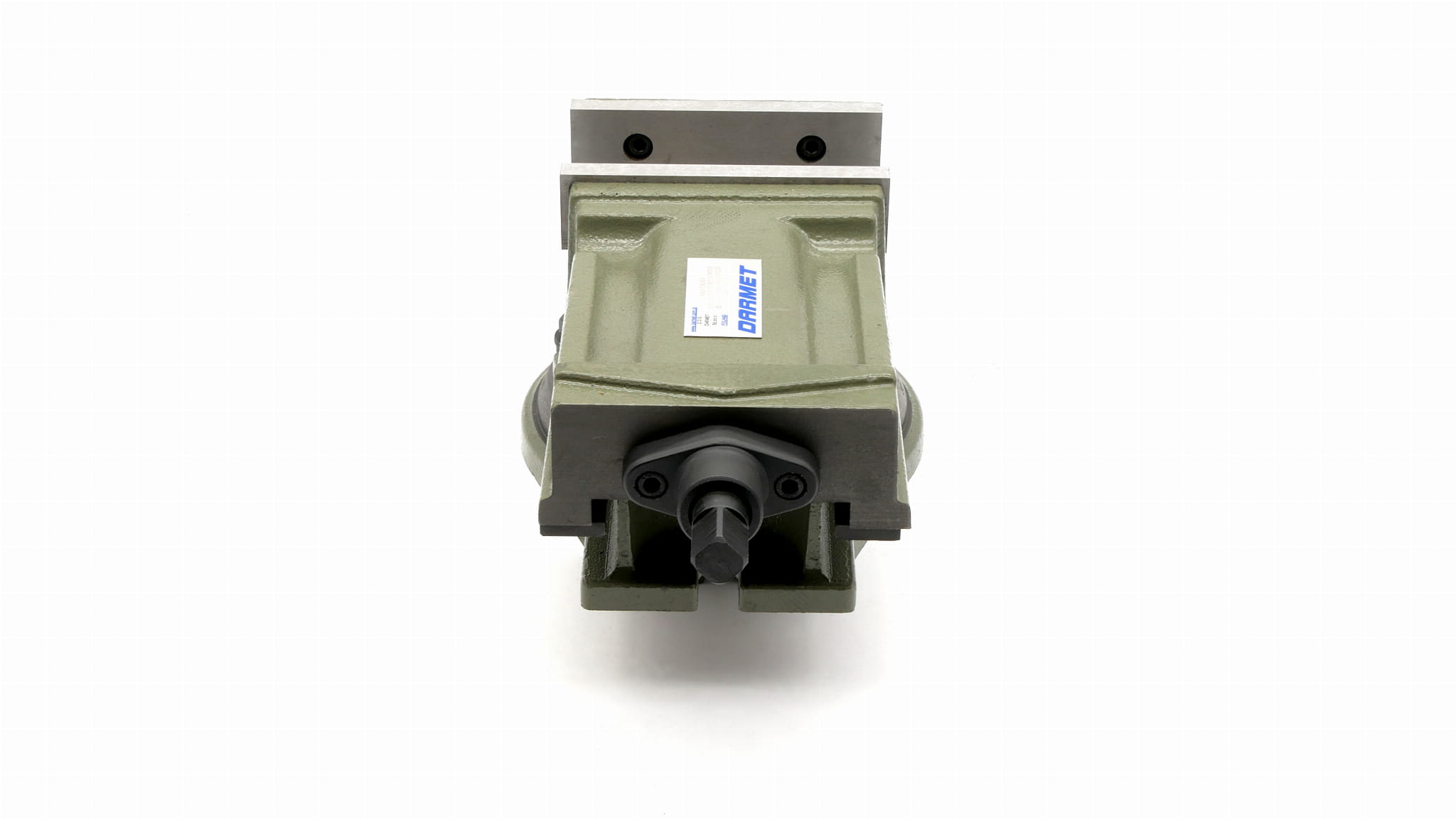

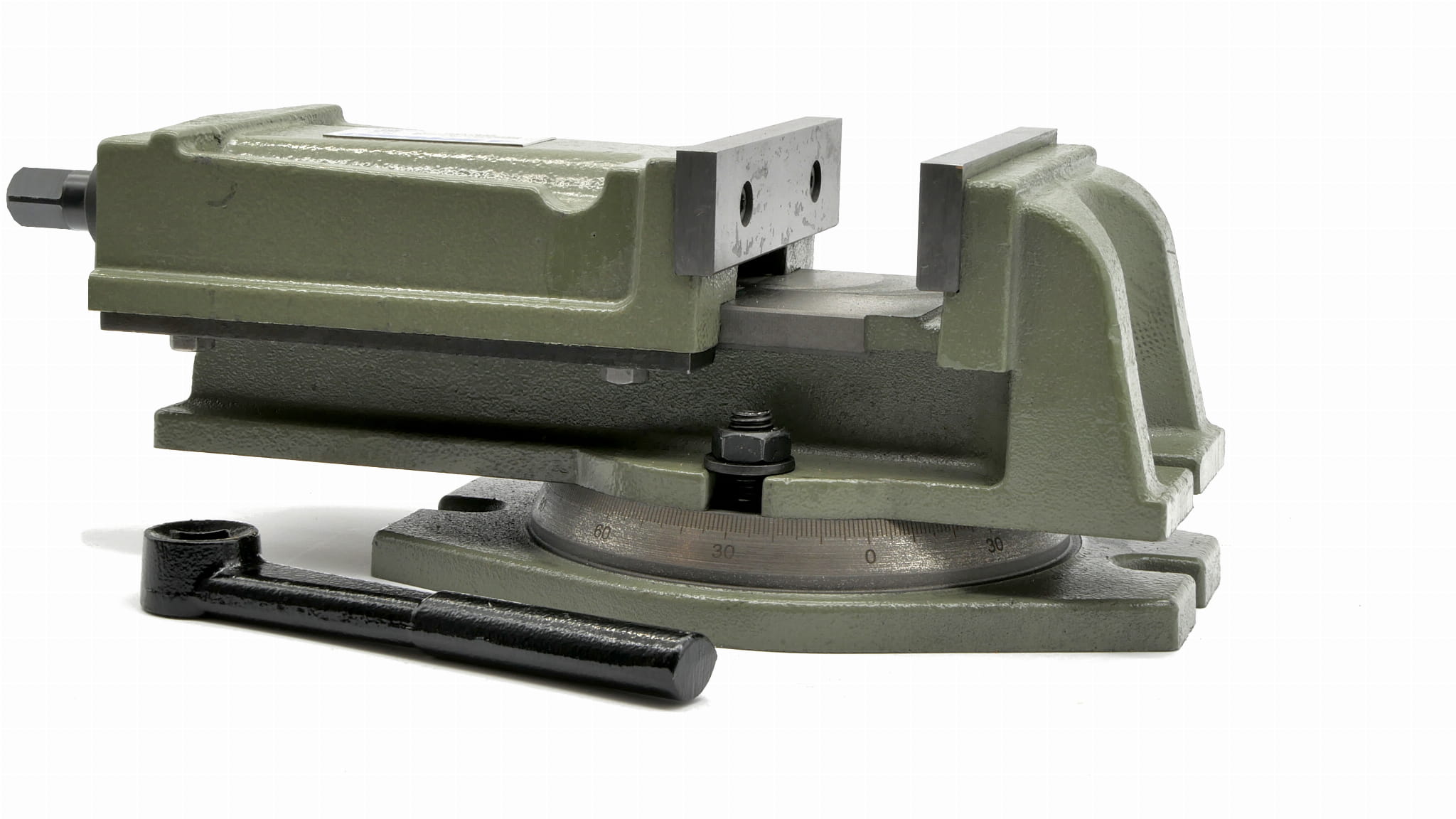

Rotary machine vise for milling machine 125x100 mm FQ DARMET
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$123.02
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$100.02
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_IM_FQ_125_100
Description
Information:
- Cast iron vise for universal use on grinders, milling machines, drills, or other CNC machines.

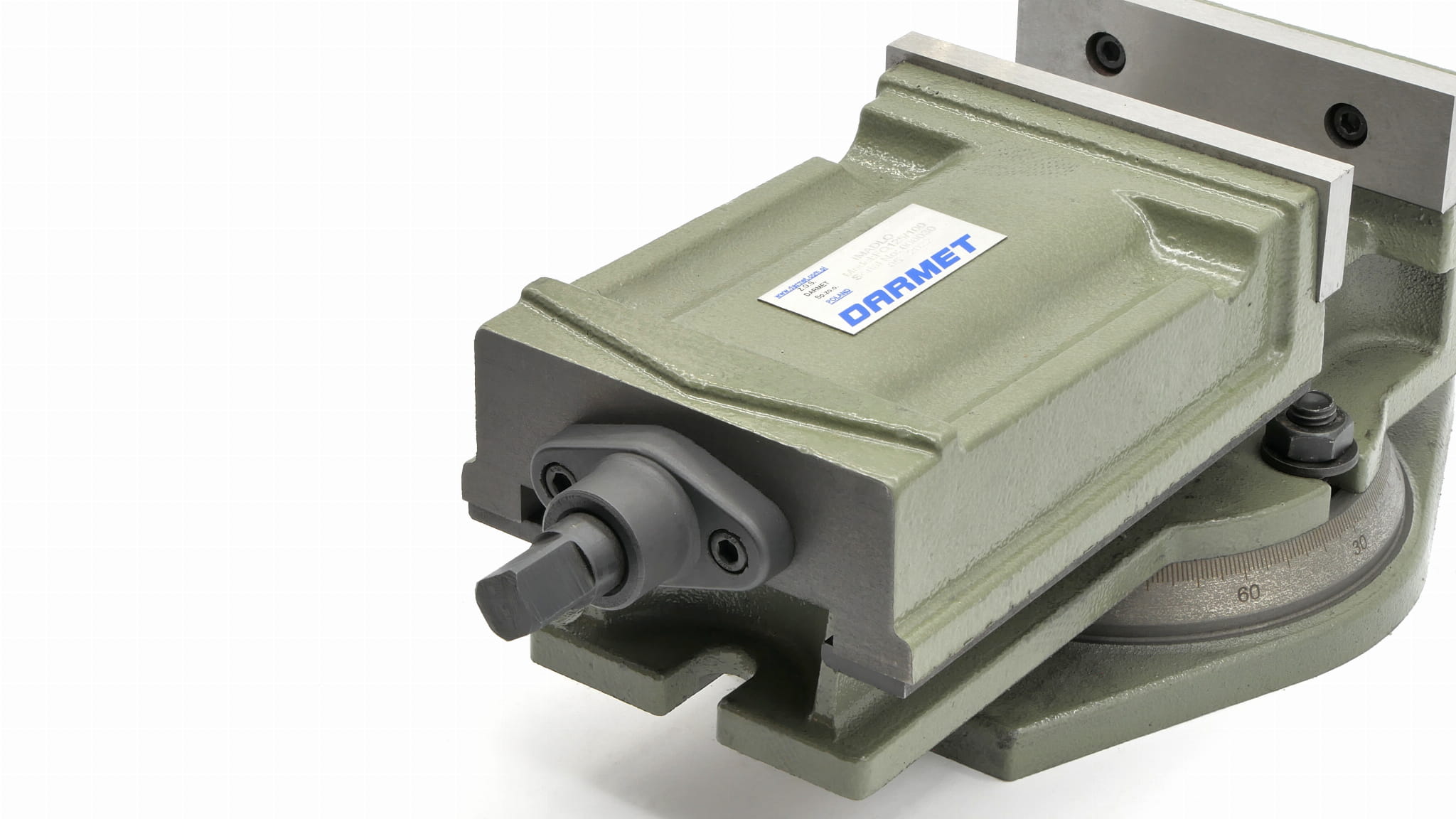

- Rotary base with 360° scale, each 1° allows a full rotation, but it is also detachable to provide tool versatility.

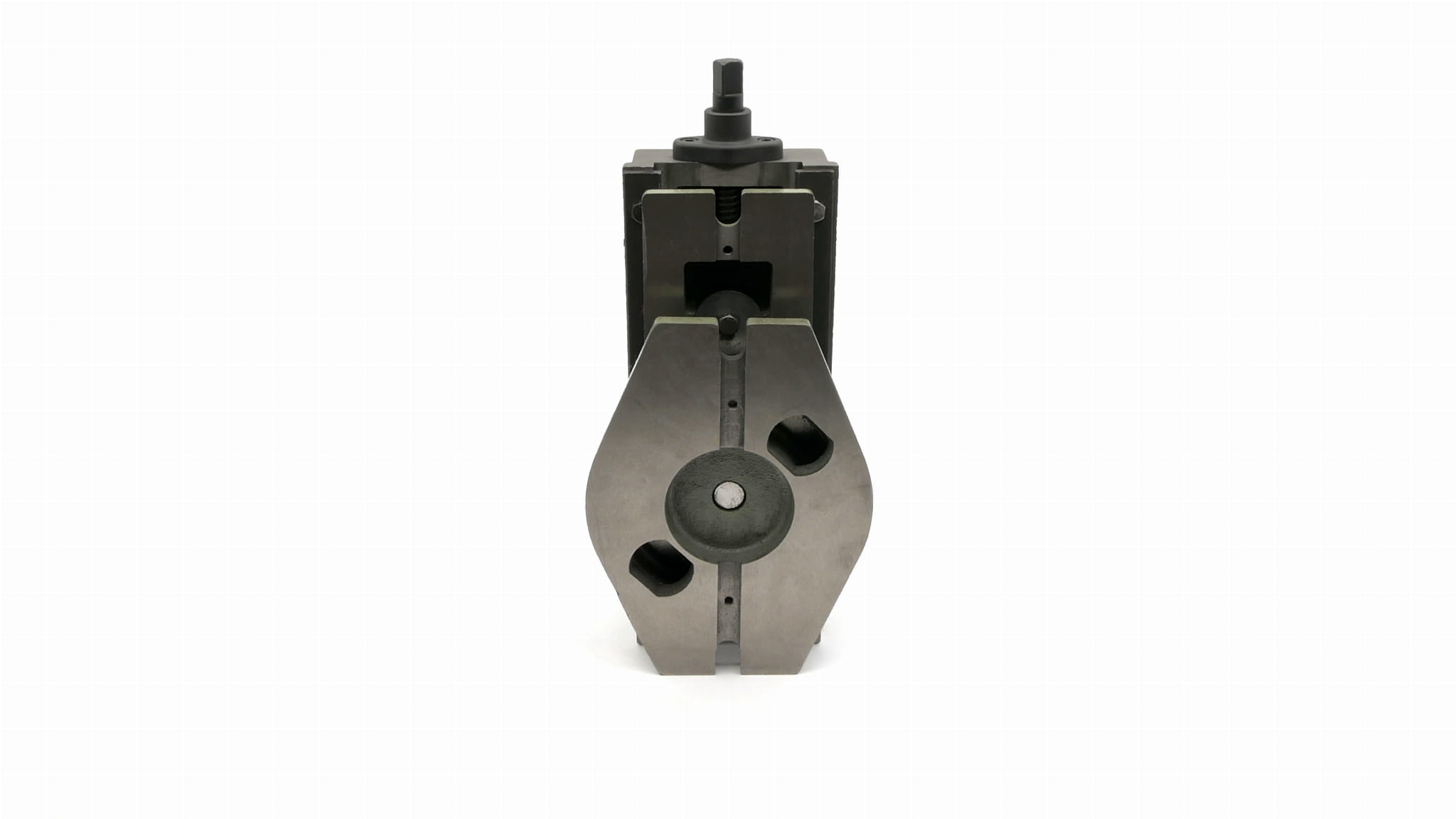

- Precise device mounting on the machining table e.g. with T-slots is possible thanks to special longitudinal grooves in the rotary and vise body, using a universal clamping element set and also ground keys.
- Draw screw is fully enclosed by the body, which significantly protects it against jamming and damage from various contaminants and chips formed during machining.
- The full bed surface is also an advantage for clamped semifinished products, making it much easier to achieve a stable position.
- If you need to clamp a workpiece smaller than the vise jaws, use parallel shims approximating the length to the width of the jaw inserts.
- The simple design of the jaw inserts is another advantage, allowing easy and inexpensive quick copying and replacement on your own or cheap purchase.
- When replacing jaw inserts, their working surfaces connected with the vise must be milled to achieve the accuracy parameters specified in the technical documentation.
- All screws used have universal hex heads so every user can disassemble necessary elements on their own and perform required tasks (cleaning, component replacement, etc.).

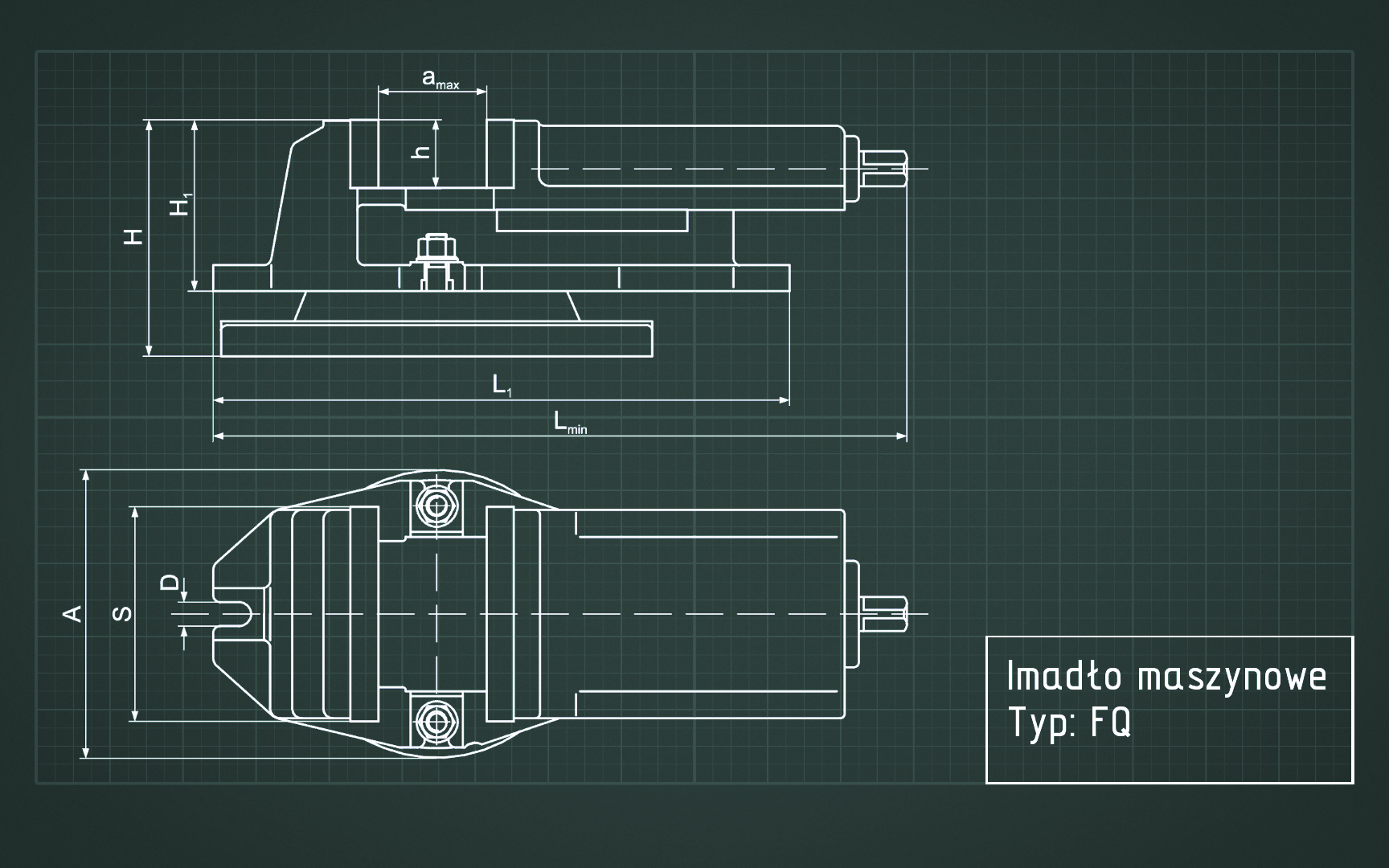

Technical specification:
| Parameter | Value |
|---|---|
| S | 125 mm |
| amax | 100 mm |
| h (jaw height) | 32 mm |
| H1 | 92 mm |
| H | 125 mm |
| A | 165 mm |
| Lmin | 295 mm |
| L1 | 285 mm |
| D (slot width for keys) | 14 mm |
| Width of setting keys | 14 mm |
| Weight | 16.0 kg |
Included:

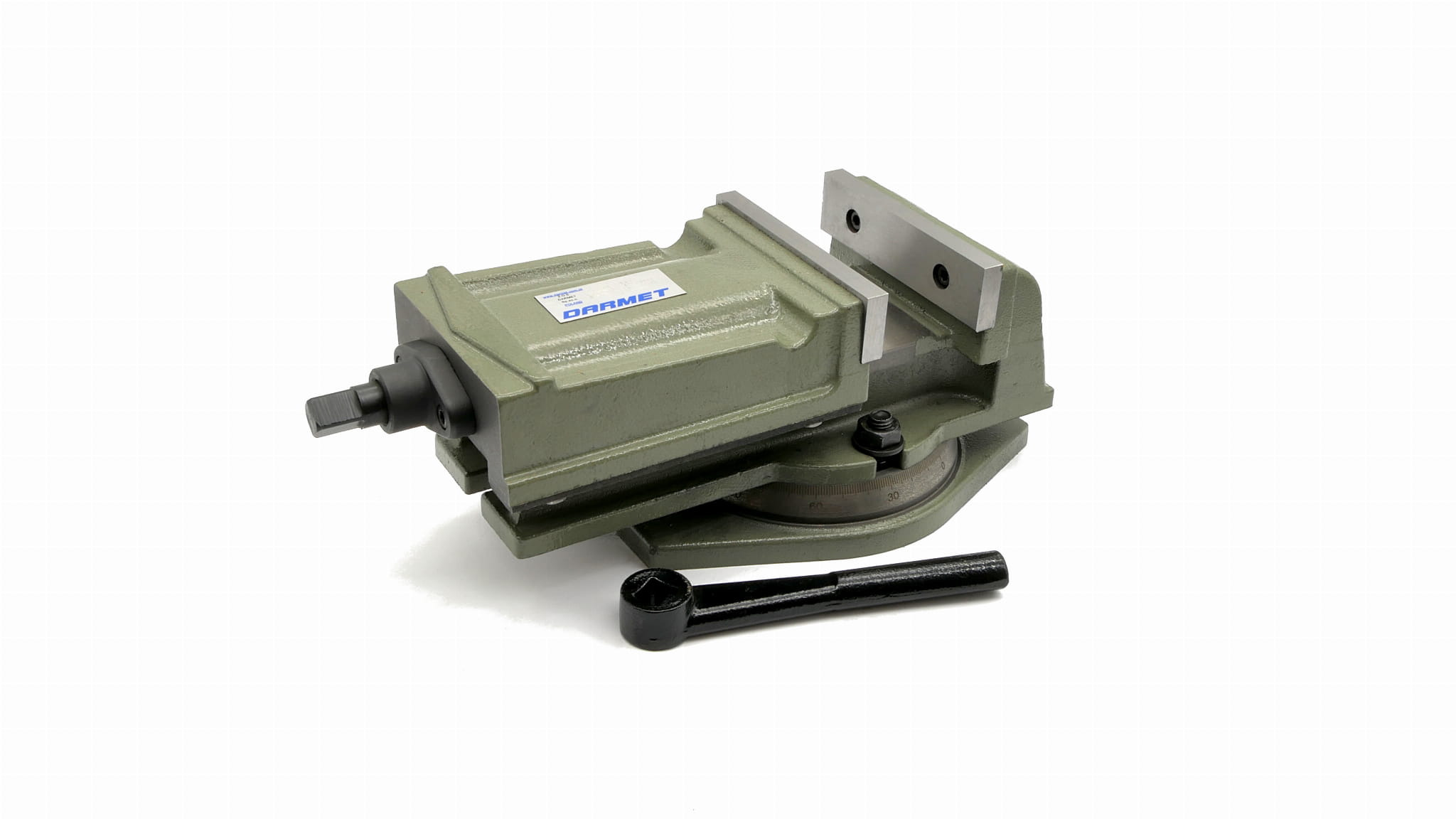

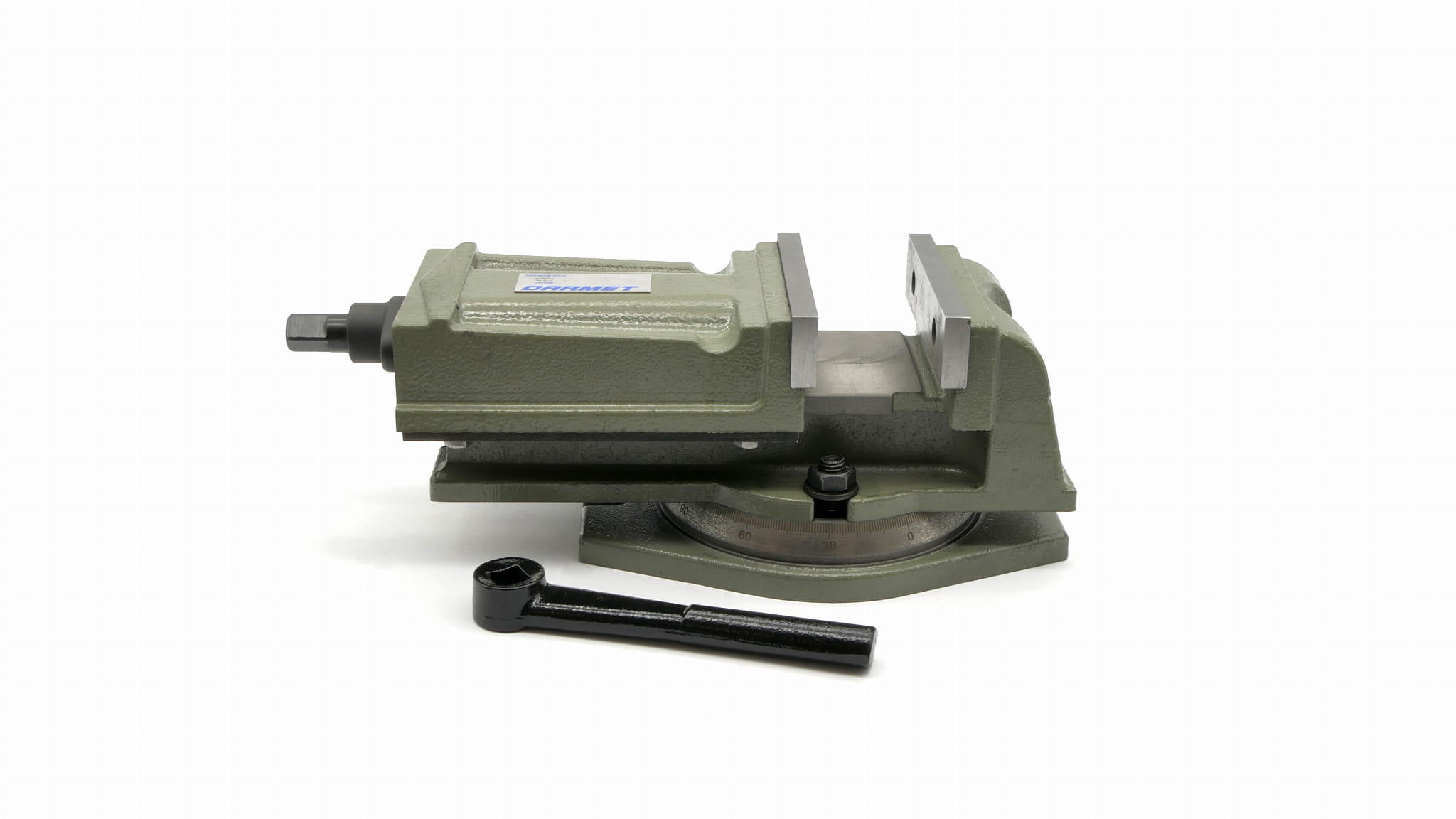

- vise - 1 pc.
- handle - 1 pc.
- blackened setting keys with screws - 2 pcs.
- clamping screw with washer and nut - 4 pcs.
Not sure which vise to choose? Check the DARMET vise guide.
Which keys should I select for my vise?
