Rotary machine vise for milling machine 200x160 mm FQ DARMET
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$279.25
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$227.03
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_IM_FQ_200_160
Description
Information:

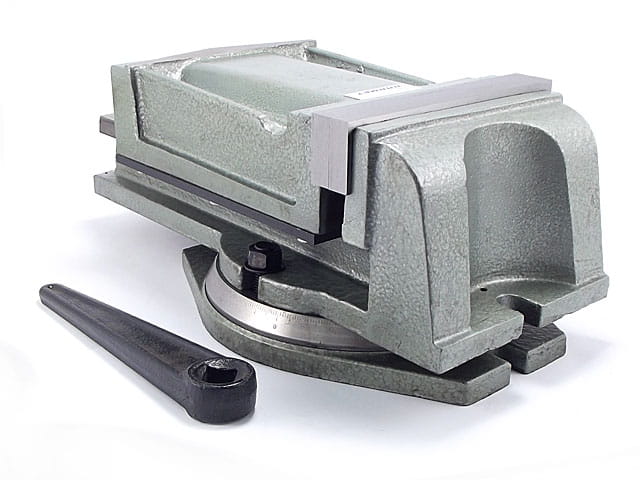

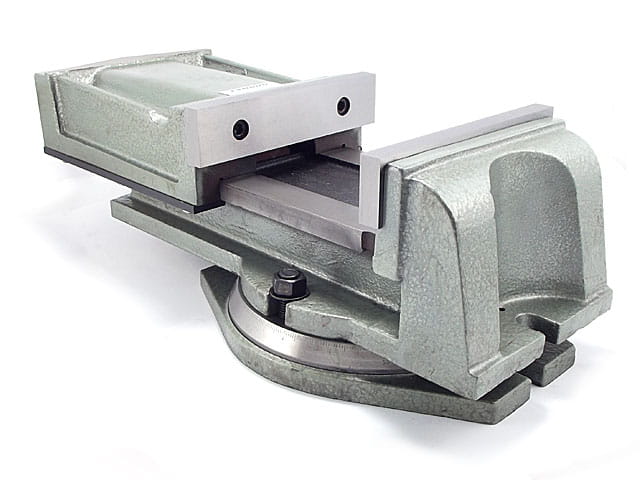

- Cast iron vise for universal use on grinders, milling machines, drilling machines, or other CNC machines.

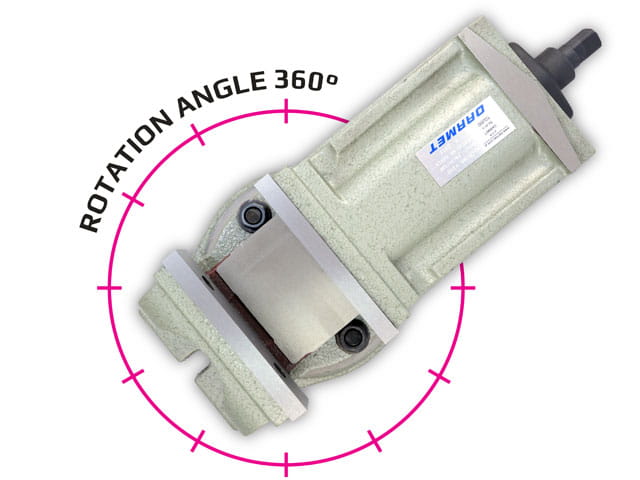

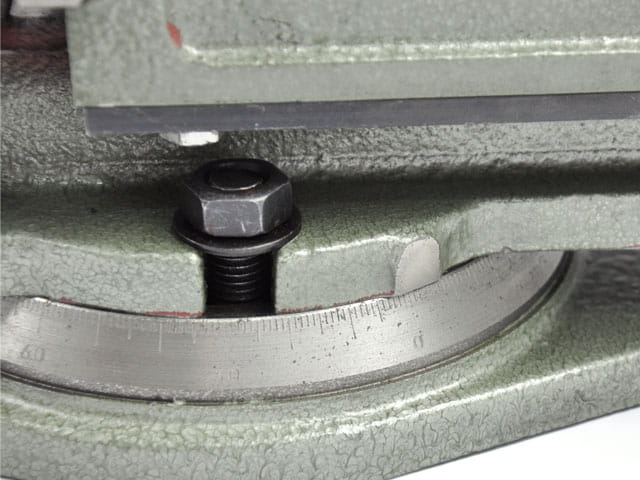

- Rotary base with 360° scale, every 1° enables full rotation, but it is also removable to provide tool versatility.

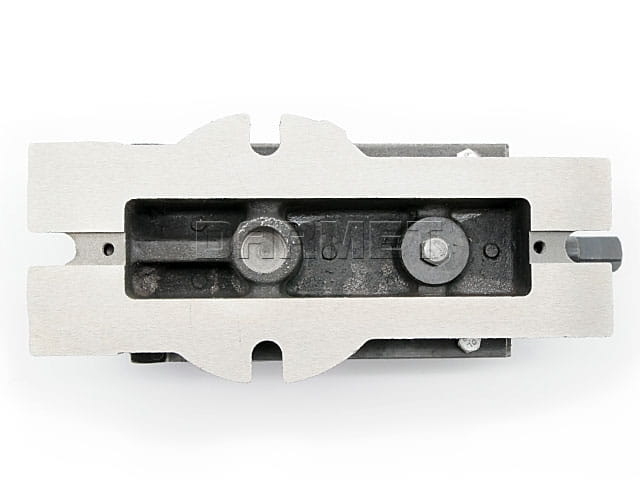

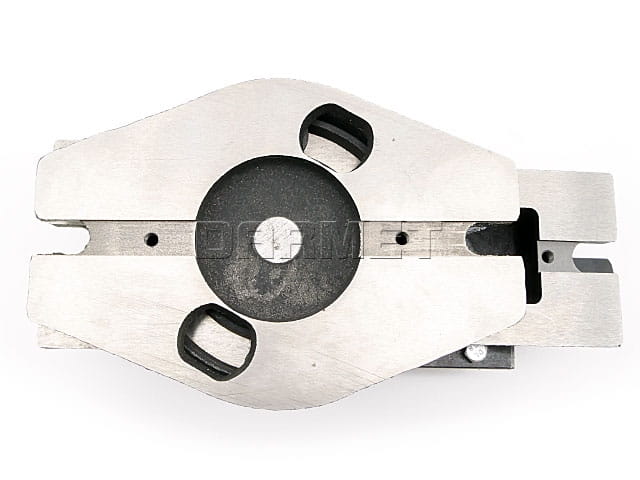

- Precise mounting of the device on a working table e.g., with T-slots is possible due to special longitudinal slots in the rotary part and vise body, using a universal mounting elements set, as well as ground keys.

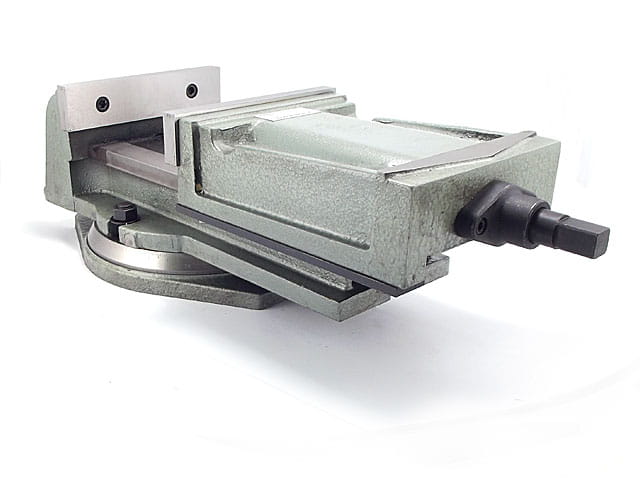

- The pull screw is fully enclosed by the body, which significantly protects it from jamming and damage by various contaminants and chips created during machining.
- The full surface of the bed is also an advantage for clamped semifinished products, making it much easier to achieve a stable position.
- If you need to clamp an object smaller than the vise jaws, use parallel shims close in length to the width of the jaw inserts.
- The simple design of the jaw inserts is another advantage that allows easy and cheap replication and replacement by users themselves or inexpensive purchase.
- When replacing jaw inserts, their working surfaces connected with the vise must be milled to achieve the accuracy parameters specified in the technical documentation.
- All used screws have universal hex heads so that any user can disassemble necessary parts for cleaning, replacement of components, etc.
Specification:
| Parameter | Value |
|---|---|
| S | 200 mm |
| amax | 160 mm |
| h | 63 mm |
| H1 | 140 mm |
| H | 178 mm |
| A | 240 mm |
| Lmin | 480 mm |
| L1 | 445 mm |
| D (slot width for keys) | 18 mm |
| Width of positioning keys | 18 mm |
| Weight | 45.6 kg |
Included:
- vise - 1 piece
- handle - 1 piece
- blackened positioning keys with screws - 2 pieces
- fixing screw with washer and nut - 4 pieces
Not sure which vise to choose? Check the DARMET vise guide.
Which keys should I choose for my vise?
