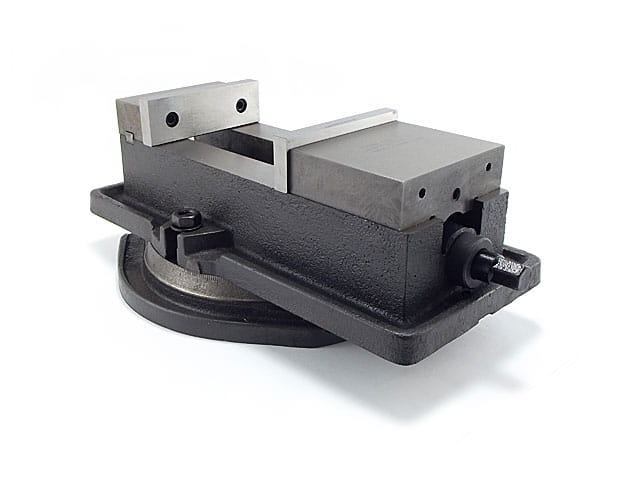

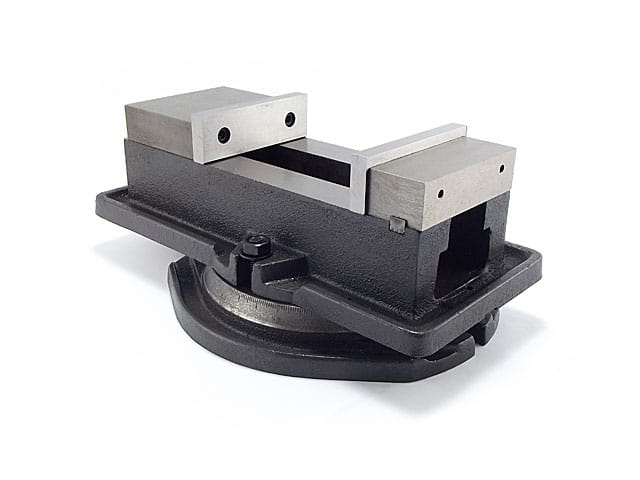

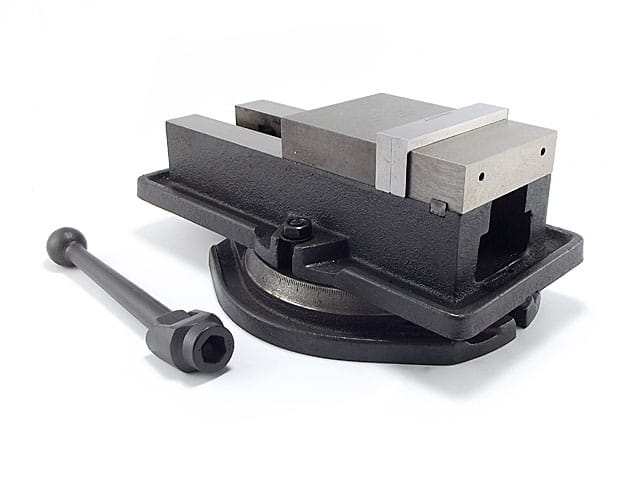

Rotary machine vise with coolant outlet for CNC milling machine 100x100 mm - FQM DARMET

"A clamping device for fixing semifinished products and tools in conventional machines and more advanced ones, up to CNC machine tools. Essential in every workshop and production plant. The special purpose is ensured by the design of the vise, which has streamlined channels in the body and rotary base for free drainage of cooling fluid."

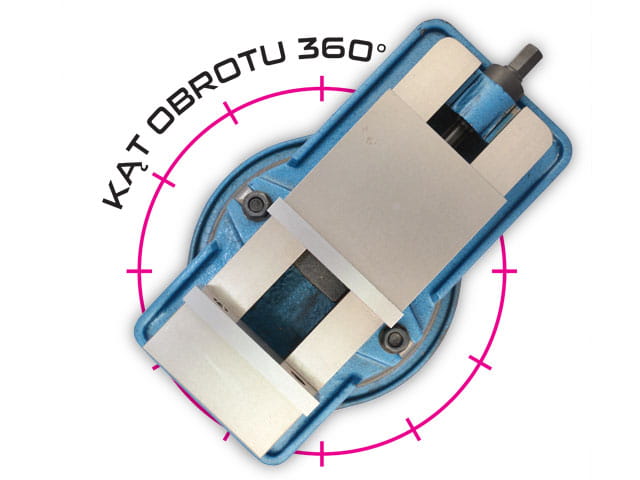

Full 360° view of the vise around the axis

Information:

✔️ Clamping device made of high-durability cast iron and hardened steel of good quality.

✔️ The cast iron body and rotary base are coated with a special paint that protects the surface from corrosion caused by continuous use of fluids and common mechanical factors such as impacts or scratches.

✔️ The rotary base is removable, allowing stable mounting of the vise itself on the working table.

✔️ Flow channels all around the body and rotary base ensure a significantly proper cooling fluid flow cycle and reduced consumption, greatly enhancing work hygiene.

✔️ For this vise the predefined direction of fluid flow is key to maintaining the machine's cleanliness and easier collection of machining waste.

✔️ Replaceable jaw inserts can be screwed to both sides of the jaws, which means a very large range of clamped elements. The standard arrangement allows normal seating. Reversing the inserts on the fixed and movable jaw sides or individually increases the clamping range by their length, but in this arrangement only flat objects such as flat plates or other narrow materials can be placed.

✔️ Milling machines, boring machines, CNC machine tools, are example machines for which this vise is intended, but depending on the user, the tool can also be used in conventional machines and simple work tables.

✔️ While clamping semifinished products, parallel shims may prove useful for correctly and stably mounting the object above the vise body.

✔️ The set includes keys necessary for precise installation of the device on the table with T-slots; without these, during machine operation, stabilization by clamping elements alone may prove insufficient, and vibrations or feed forces may shift the vise position, or cause loosening of mounting screws, posing final danger to the operator.

Specification:

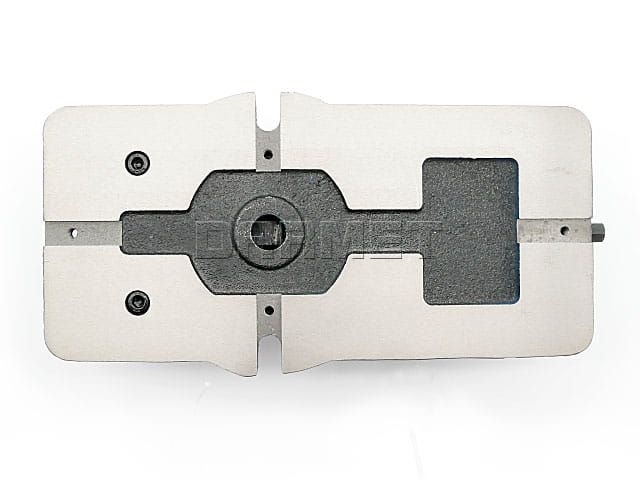

Possible ways to mount jaw inserts:

Which keys should I choose for my vise?
