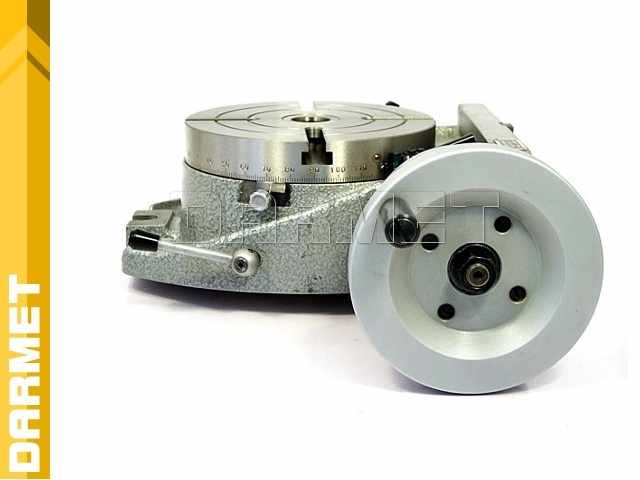

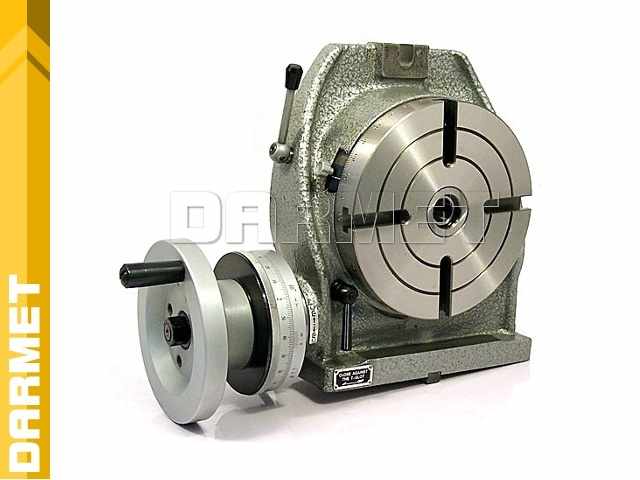

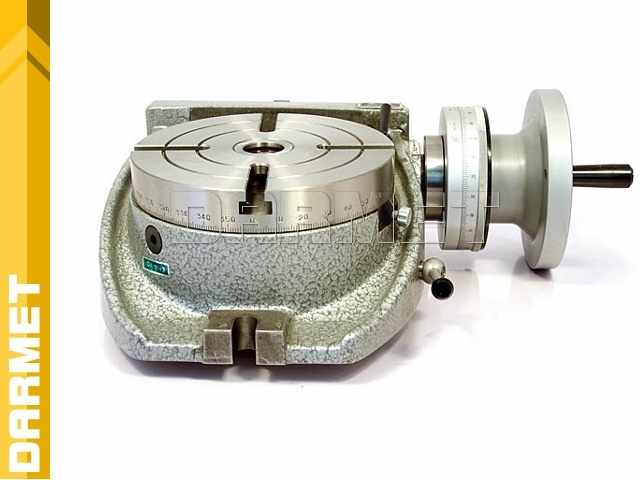

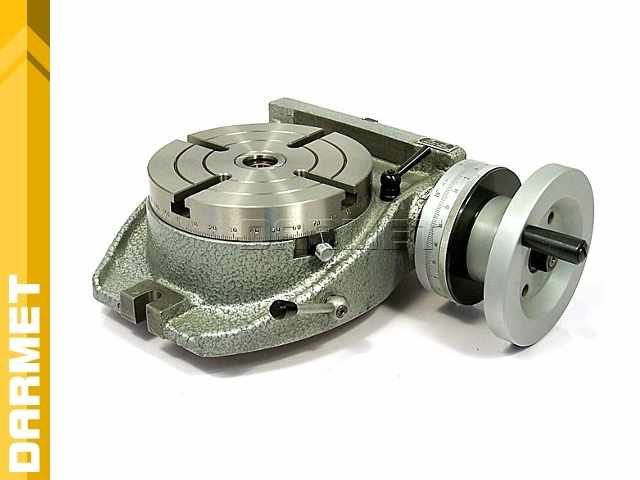

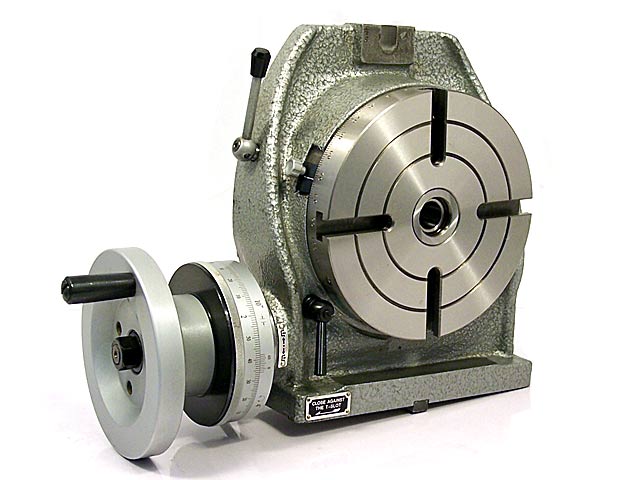

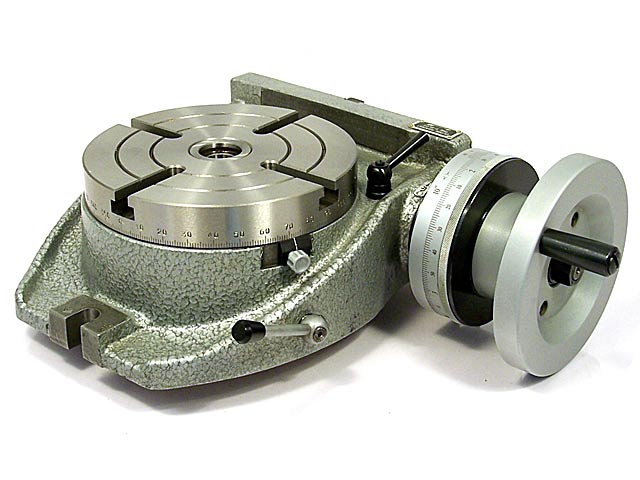

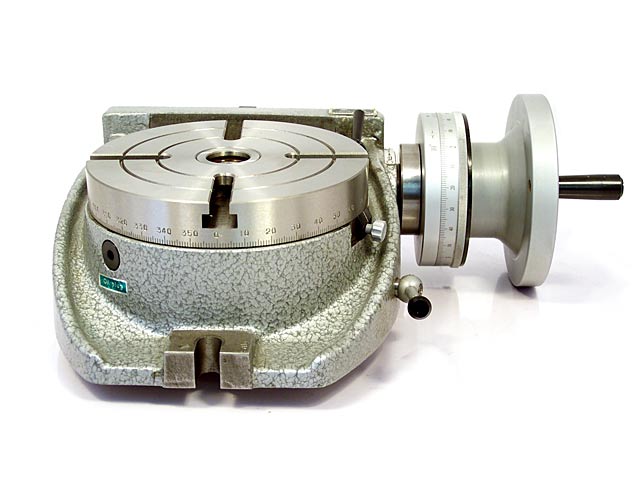

Rotary table, indexing (vertical and horizontal) for milling machine - 160 mm
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Features and application:
- Rotary indexing table for milling curved surfaces in rotary milling
- For milling flat surfaces at the right angle to a specific base
- For milling or drilling with an angle division
- For horizontal mounting with the tailstock
- The angle division allows for the production of details with complex shapes
- The workpiece is clamped in a special holder placed on the rotary table or without a holder directly on the rotary table
- Possibility of rotation by 360°
- Angular spacing of keyways: 90°
- Worm gear division: 1.5
- Worm gear ratio: 1:90
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| Morse taper | MK2 | |
| Dimensions (B x A x H) | 242 x 196 x 85 | mm |
| C | 125 | mm |
| D | 160 | mm |
| E | 10 | mm |
| F | 12 | mm |
| L | 194 | mm |
| N | 82 | mm |
| P | 37 | mm |
| d | 25 | mm |
| Weight | 30.0 | kg |
| | | |

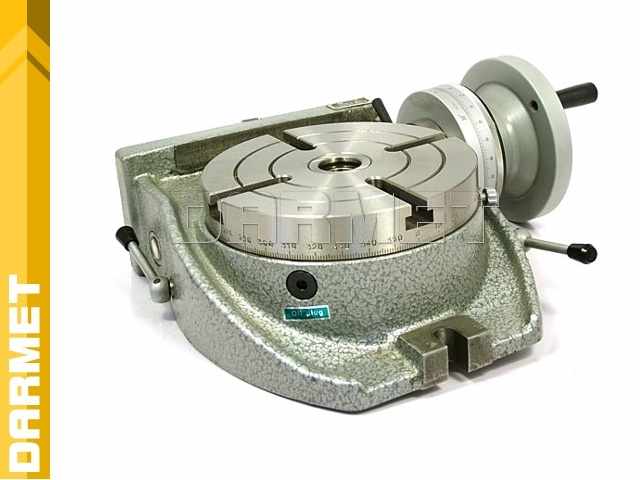

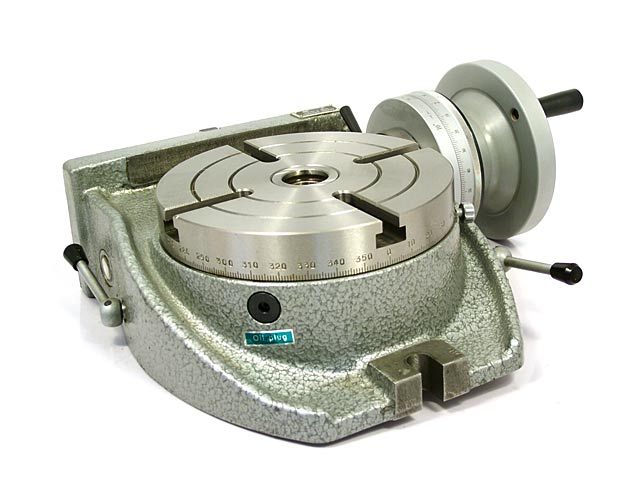

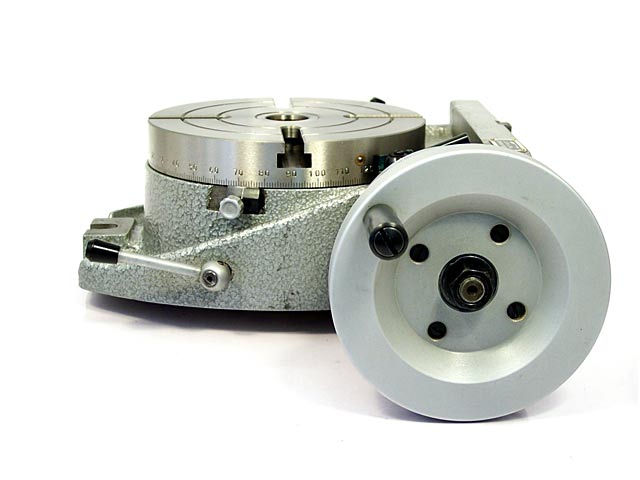

| T-slots allow for precise clamping of the workpiece on the table. The scale on the table disc is accurate to 1°. | A plastic window in the reservoir indicates the oil level. | The scale on the crank is accurate to 10". A full rotation of the crank rotates the table by 4°. |
