Description
Information:

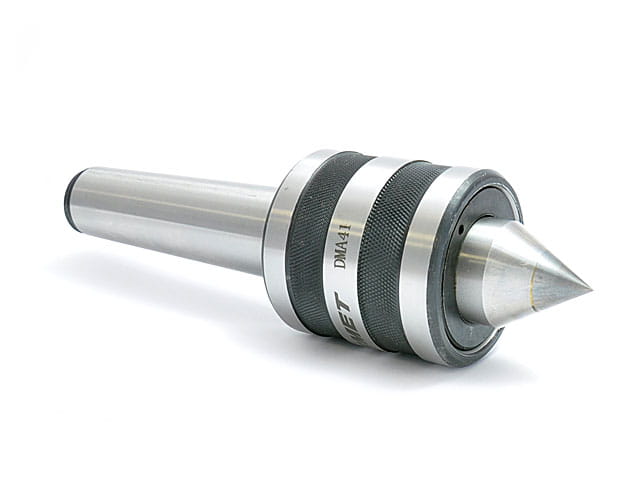

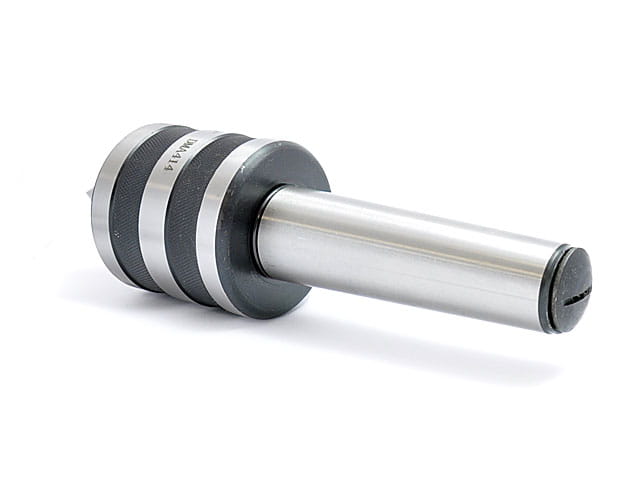

- Morse MK5 live lathe center with sintered carbide tip, made of high-quality alloy steel.
- Used for turning work on very hard materials.
- Live lathe centers are used at high spindle speeds lathes and for lighter work.
- Working surface hardness 55 - 60 HRC.

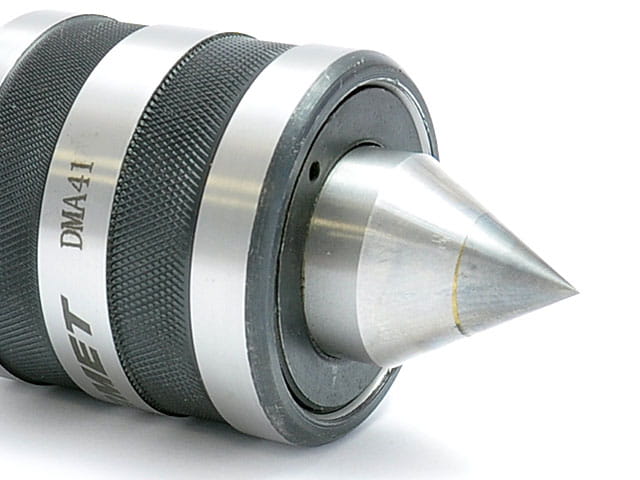

- YG8 HRA 89 carbide tip.
- Maximum run-out: 0.01mm.
- Point angle 60°.
Specification:

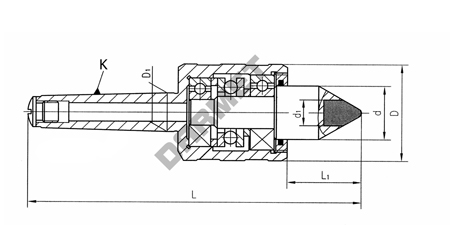

| Parameter | Value |
|---|---|
| K (Morse) | MK5 |
| L | 254 mm |
| D | 77 mm |
| L1 | 45 mm |
| d | 45 mm |
| D1 | 44.399 mm |
| Max. load | 630 kg |
| Max. speed | 1000 rpm |
| Weight | 3.4 kg |
If you still don't know which lathe center to choose, read guide on selecting centers.
