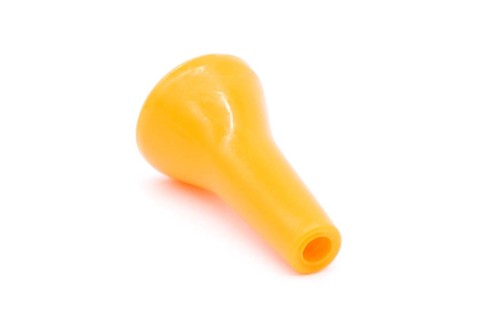

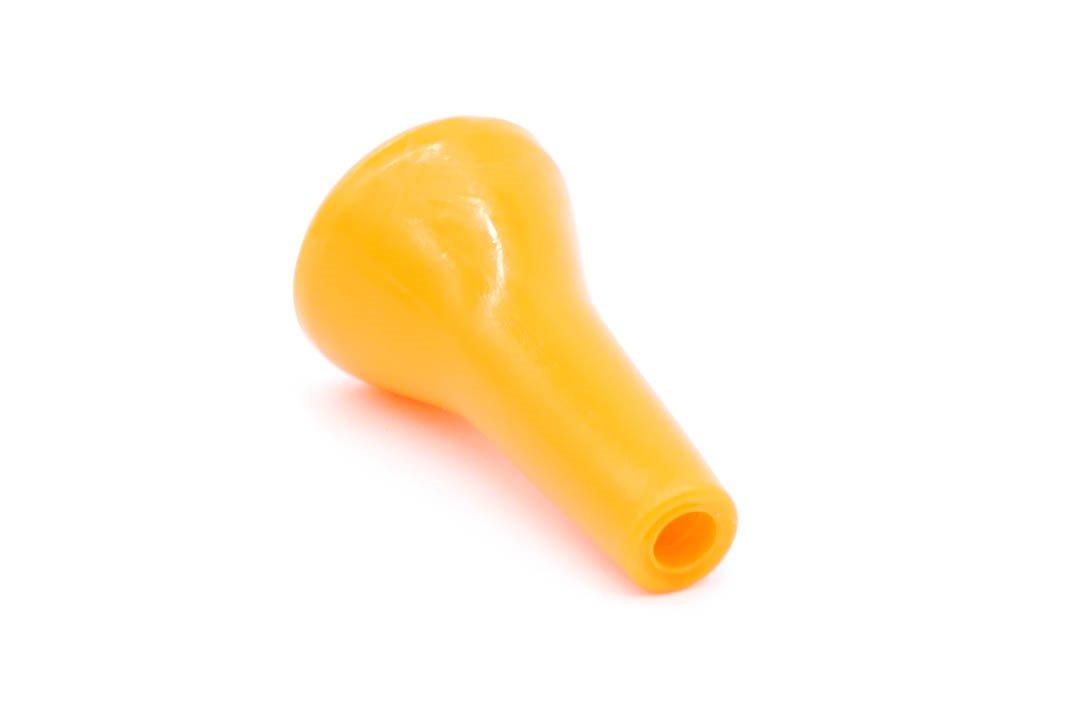

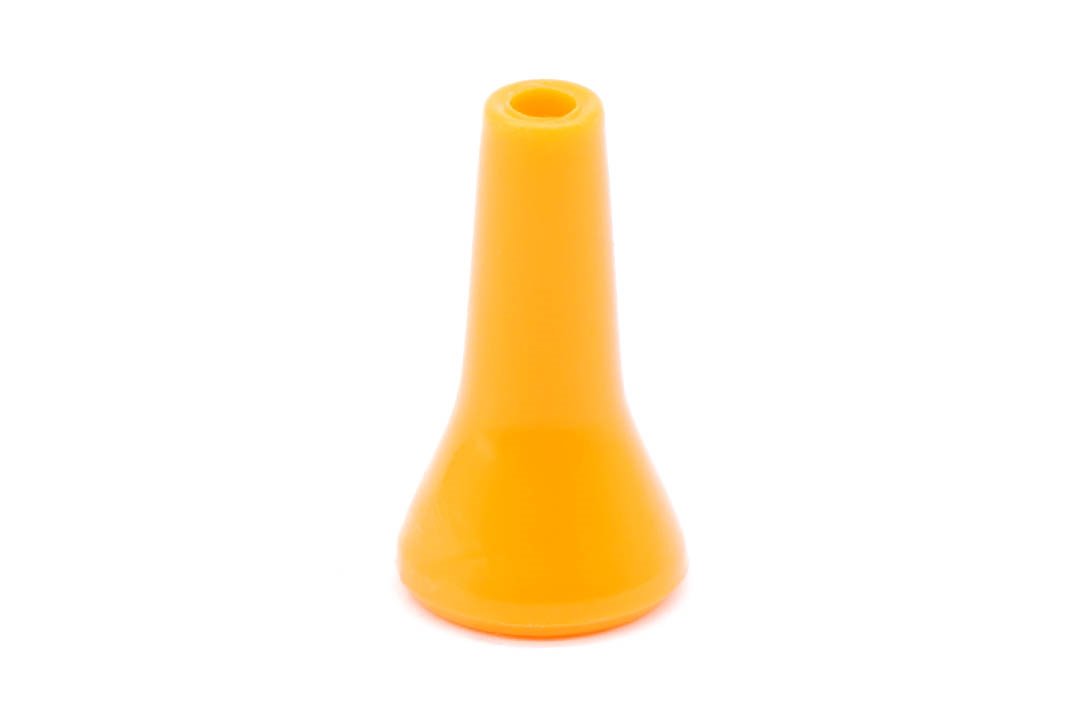

Round Nozzle Ø3.5 mm (1/8") | 1/4" Modular Coolant Hose System – DM28016-14

Features and applications:

• Round nozzle designed for a wide range of metalworking applications. Its durable construction provides reliable performance and long service life.
• The nozzle can be combined with modular coolant hoses and segments to create a customised coolant delivery system. The components are quick and easy to assemble, allowing the configuration to be adapted efficiently to different machining applications. Assembly pliers are recommended for connecting components of the 1/4" system.
• Round nozzle outlet diameter: Ø3.5 mm (1/8").
• The nozzle is made of acetal, a material known for its high wear resistance, low coefficient of friction, good heat resistance and low water absorption. These properties make it particularly suitable for demanding metalworking applications. Acetal also offers good mechanical properties across a wide temperature range, excellent sliding characteristics and high resistance to moisture and hydrolysis.
• Replacement for the Loc-Line 49423.1 nozzle.
• Components available for the 1/4" system:
  • segments,
  • valves,
  • modular hoses,
  • nozzles.

Technical specifications:

Advantages of the modular coolant hose system:

Modular coolant hose systems are designed to deliver coolant, compressed air or other media directly to the machining area. Their main advantages include:

✅ Flexible and easy positioning

• Quick and precise adjustment of the coolant flow direction.
• The length and shape of the hose can be easily adapted by adding or removing individual segments.

✅ Quick assembly and disassembly

• The snap-fit design allows individual components to be assembled and replaced quickly using dedicated assembly pliers.
• The system can be easily expanded with additional nozzles, valves or other accessories.

✅ More efficient cooling

• Allows coolant to be directed precisely to the cutting area.
• Helps reduce coolant loss, improving efficiency and lowering coolant consumption.

✅ Resistance to oils and chemicals

• Made from material resistant to most coolants, lubricants and industrial chemicals.
• Corrosion-resistant construction ensures long service life in demanding workshop environments.

✅ Safety and stability

• Non-conductive construction eliminates the risk of electrical conductivity associated with metal coolant pipes.
• The vibration-resistant design helps the hose remain in the selected position during machine operation.

✅ Versatile applications

• Suitable for a wide range of machine tools, including lathes, milling machines, grinders and other industrial equipment.
• Available in various sizes and with a wide range of accessories, including valves, manifolds and nozzles. Our coolant hose systems are compatible with Loc-Line systems and can be used interchangeably with compatible components.
