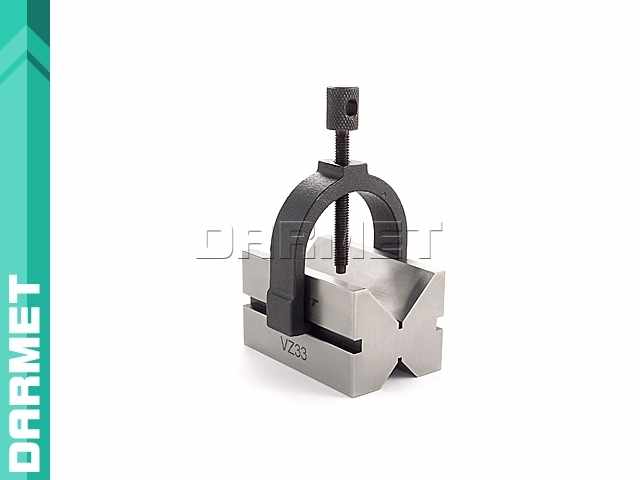

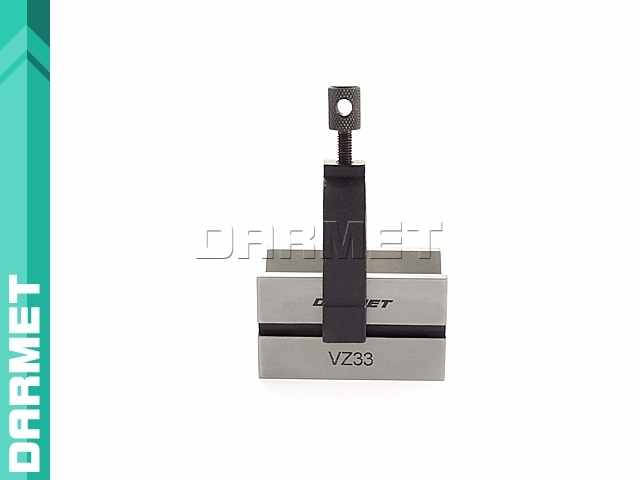

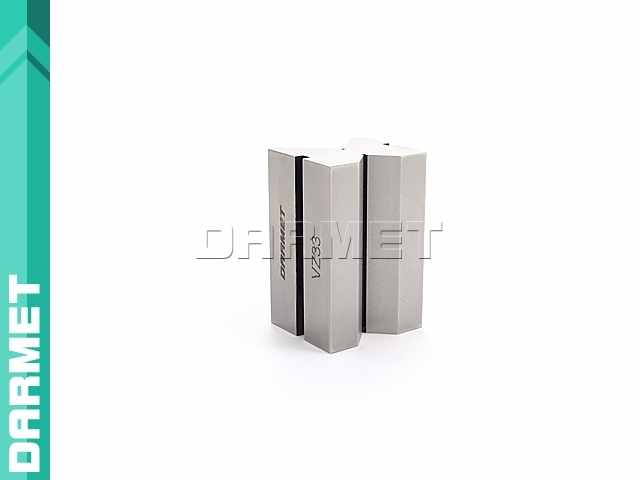

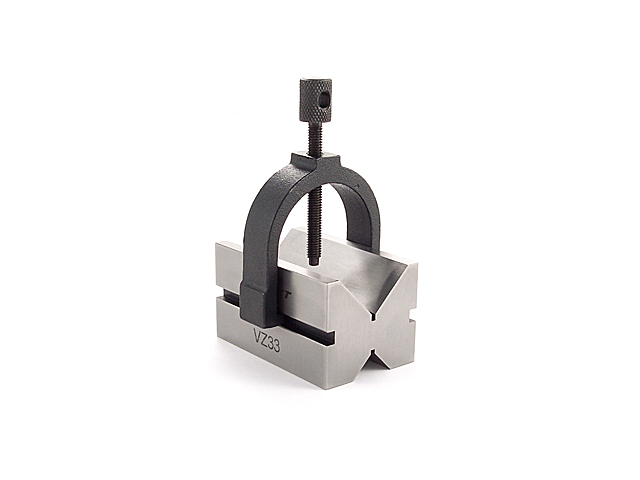

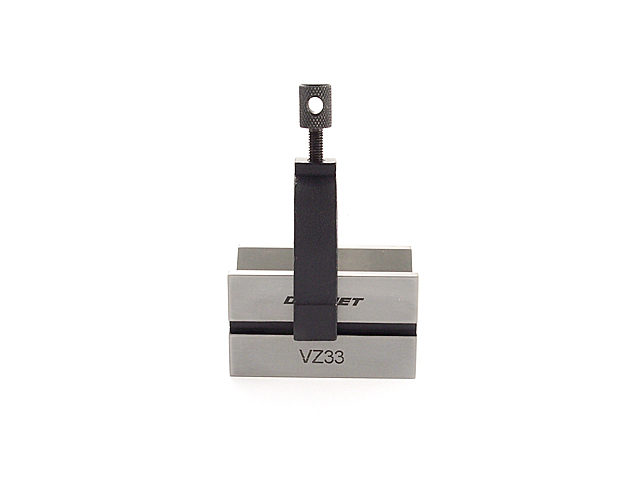

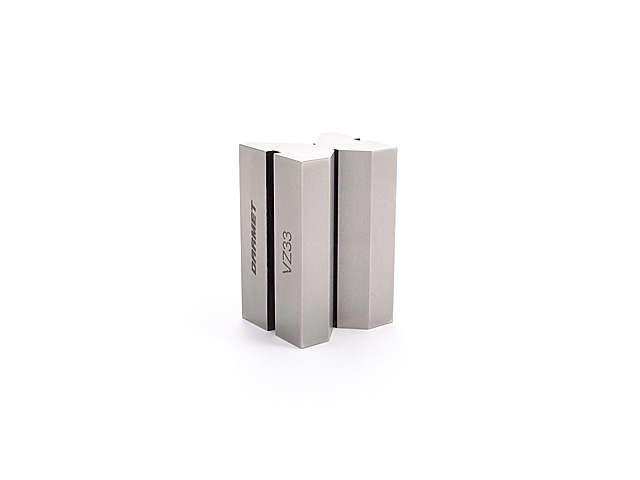

Scriber clamp 33MM, with clamp (VZ33A)
Availability:
średnia ilość
Dispatched within:
24 hours
Gross price:
$39.31
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$31.96
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_PRYZMA_VZ33A
Description
Properties and application:
- Precision V-blocks used for positioning elements (semi-finished products) during work on machine tools, in control operations.
- Hardness of working surfaces HRC 58-62, roughness - 0.4.
- Steel V-blocks, fully hardened, 90° cuts, with a mounting bracket.
- Accurate, ground in pairs.
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| L | 45 | mm |
| H | 105.5 | mm |
| S | 60 | mm |
| h | 41 | mm |
| W | 70 | mm |
| Clamping force | 300 | daN |
| Clamping diameter | ø 6 - 33 | mm |
| Weight | 0.8 | kg |
| Parameter | Tolerance | |
|---|---|---|
| For one prism | For a pair | |
| Parallelism of the prism angle generator relative to the side | 0.025 | 0.04 |
| Perpendicularity of the abutment surface relative to the lateral surface | 0.015 | 0.025 |
| Parallelism of the abutment surfaces | 0.015 | 0.025 |
