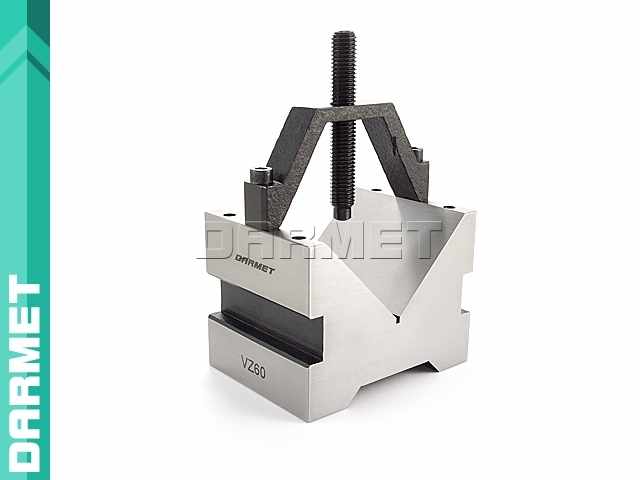

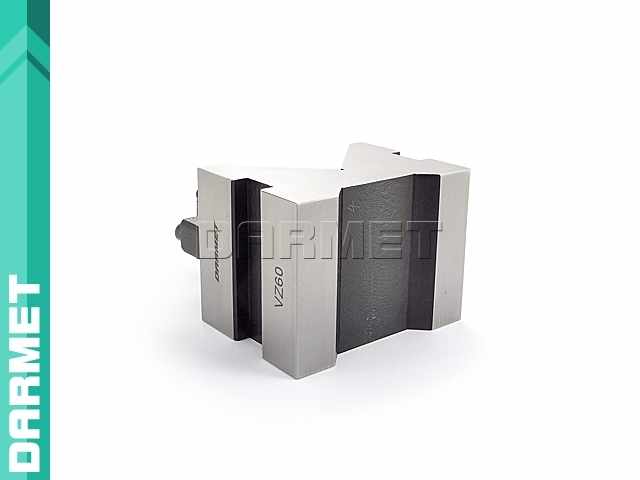

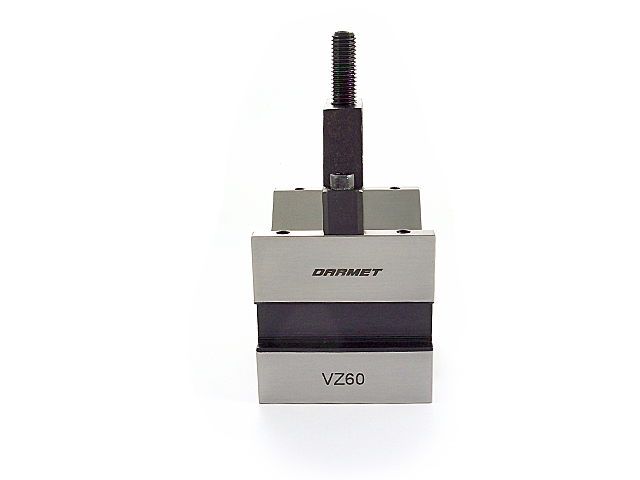

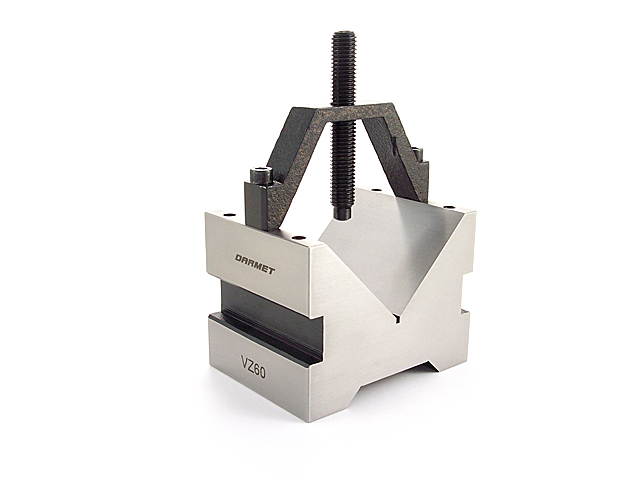

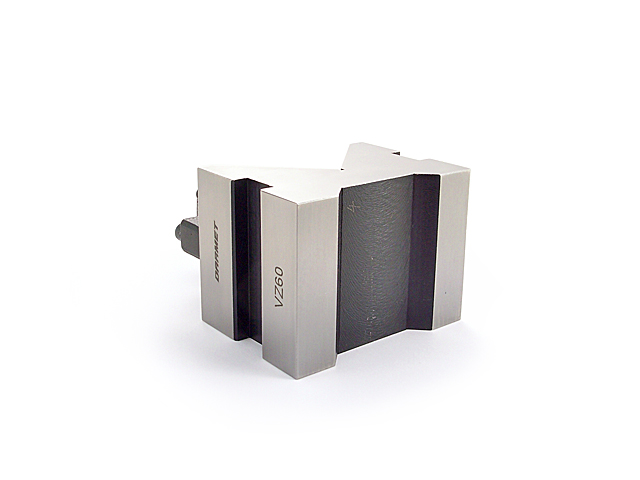

Scriber clamp 65MM, with clamp (VZ60B)
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$80.32
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$65.30
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_PRYZMA_VZ60B
Description
Properties and application:
- Precision V-blocks used for positioning elements (semi-finished products) during work on machine tools, in control operations.
- Working surface hardness HRC 58-62, roughness - 0.4.
- Steel V-blocks, fully hardened, 90° cuts, with a mounting bracket.
- Precise, ground in pairs.
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| S | 101.5 | mm |
| h | 76 | mm |
| Hmax | 125 | mm |
| Length | 76.2 | mm |
| Mounting diameter | ø 65 | mm |
| Weight | 3.3 | kg |
| Parameter | Tolerance | |
|---|---|---|
| For one prism | For a pair | |
| Parallelism of the prism angle forming the side surface | 0.025 | 0.04 |
| Perpendicularity of the supporting surface relative to the side surface | 0.015 | 0.025 |
| Parallelism of the supporting surfaces | 0.015 | 0.025 |
