Sealed collet | ER32 - 12 mm - DARMET
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Information:

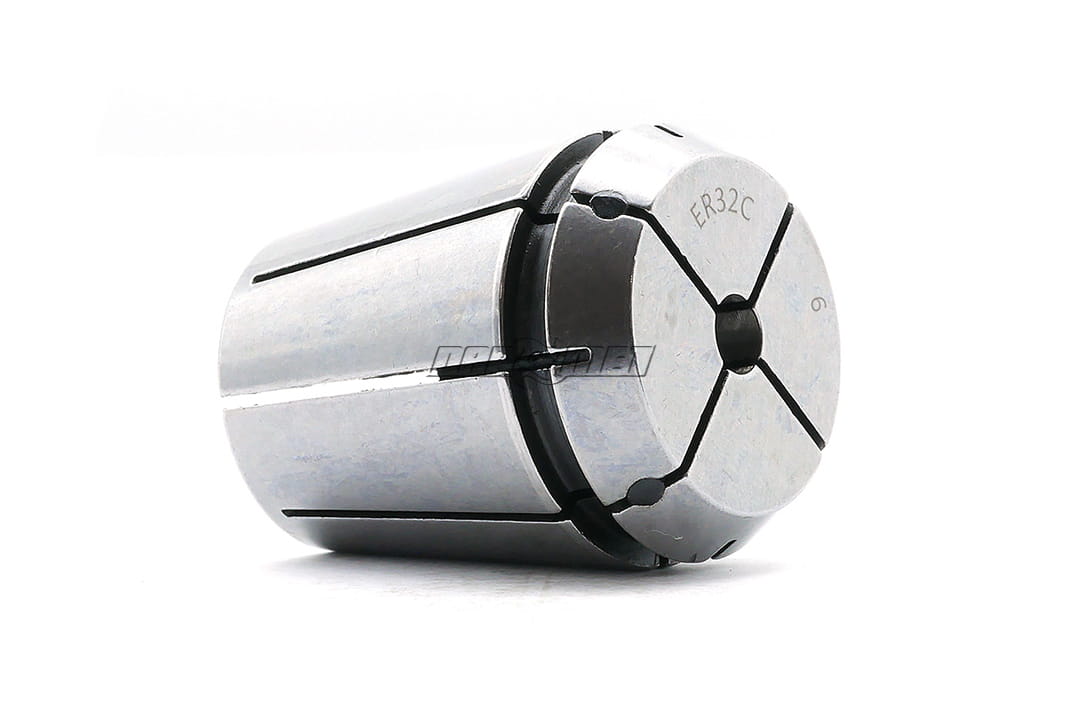

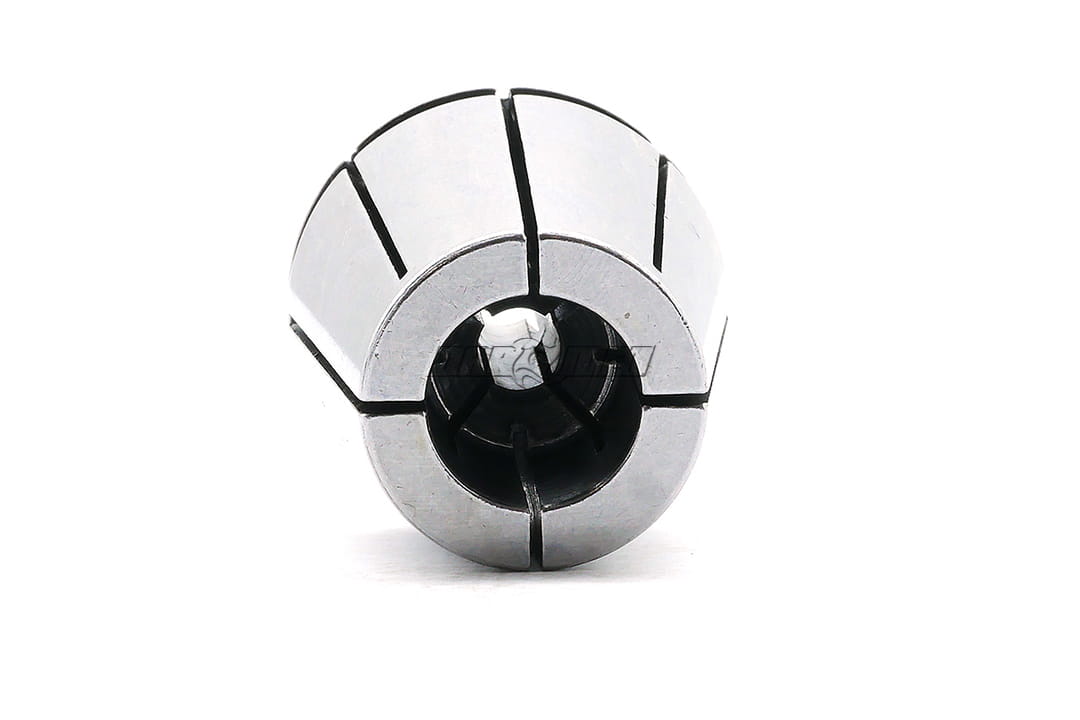

✔️ Sealed t ER32 collet.
✔️ For clamping tools with a shank diameter of 12 to 11.1 mm.
✔️ Collet enables central cooling, shown in the diagram below.
✔️ Collet used in ER32 collets.
Technical data:
| Parameter | Value |
|---|---|
| d | 12 mm |
| D | 33 mm |
| L | 40 mm |
ER standards:
| ER | d1 [mm] |
Range crimping [mm] |
d2 [mm] |
d3 [mm] |
aAT3 | l1 [mm] |
l13 max [mm] |
|---|---|---|---|---|---|---|---|
| ER11 | 1÷7 | 0.5 | 11 | 11.5 | 8° | 18.0 | 6.6 |
| ER16 | 1÷10 | 0.5÷1 | 16 | 17.0 | 8° | 27.5 | 10.6 |
| ER20 | 1÷13 | 0.5÷1 | 20 | 21.0 | 8° | 31.5 | 11.5 |
| ER25 | 1÷16 | 0.5÷1 | 25 | 26.0 | 8° | 34.0 | 12 |
| ER32 | 1÷20 | 0.5÷1 | 32 | 33.0 | 8° | 40.0 | 13 |
| ER40 | 1÷30 | 1 | 40 | 41.0 | 8° | 46.0 | 15 |
Installation of sleeves in nuts:
To correctly mount the ER collet in the holder:
- Insert the collet at an angle into the nut.
- Attach the collet's groove to the eccentric or cylindrical projection of the nut (fig. A).
- Press the collet into the nut (fig. B).
- Screw the nut with the pressed collet onto the holder so that the tool being processed can be clamped.
Maximum clamping diameters depending on the ER collet type:
