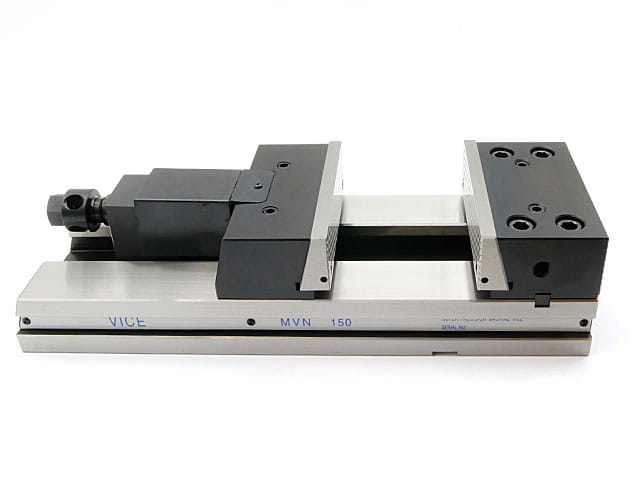

Secured Precision Steel Vise 150x210 mm MPZB DARMET
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Information:
- Precision steel vice for use in numerical machines for all operations requiring almost perfect dimensions.
- High accuracy of manufacture allows the vices to be used in a set. Maximum base deviation ±0.01 mm.
- On both sides of the body along its entire length there are channels for mounting the vice with clamping claws.
- The jaw movement on the bed is perfectly balanced, free feed with imperceptible play.
- Replaceable jaw inserts ensure the versatility of the tool mounting, depending on the mounted insert model, it is possible to mount appropriate elements (even shafts).
- The special design of the insert sockets presses the details down to the body.
- The jaw holder is responsible for its locking position and, as a quick-clamping system, allows for immediate change of jaw position without time-consuming turning of the crank.
- The fixed jaw has threaded holes on both sides to mount special stoppers stabilizing the position of objects.
- On the bottom of the bed there are grooves for locating stones for setting the tool in tables with T-slots.
- When replacing inserts, their working surfaces connected to the vise should be mechanically machined to achieve the accuracy parameters specified in the technical documentation.

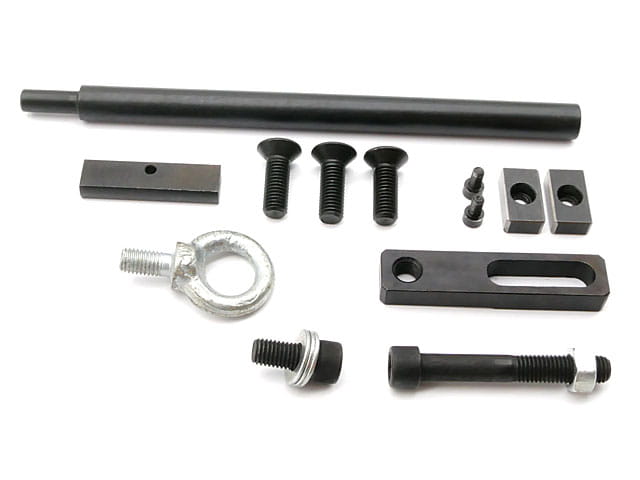

- The set includes necessary accessories for mounting and proper operation of the vise.

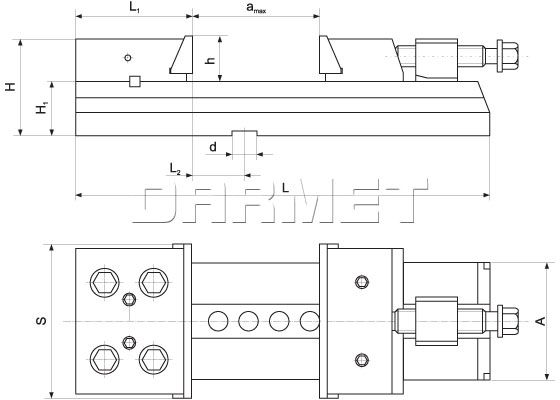

Specification:
| Parameter | Value |
|---|---|
| S | 149 mm |
| amax | 210 mm |
| h | 52 mm |
| H1 | 51 mm |
| H | 101 mm |
| A | 150 mm |
| L1 | 84 mm |
| L2 | 21 mm |
| L | 423 mm |
| d | 18 mm |
| Weight | 32.5 kg |

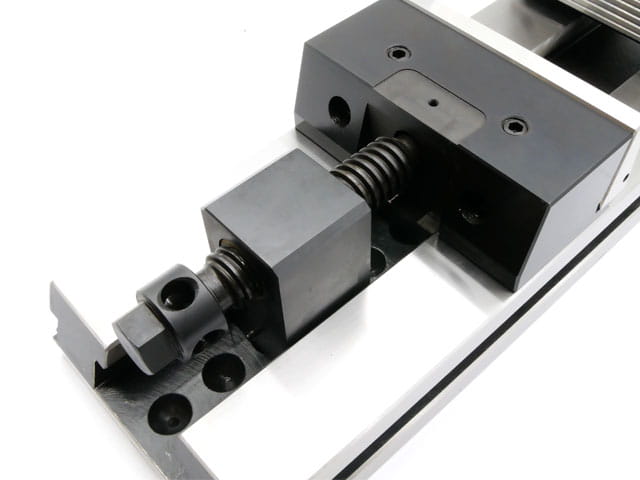

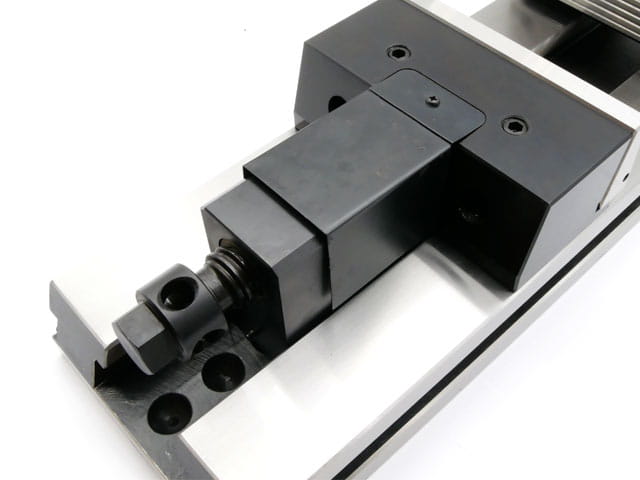

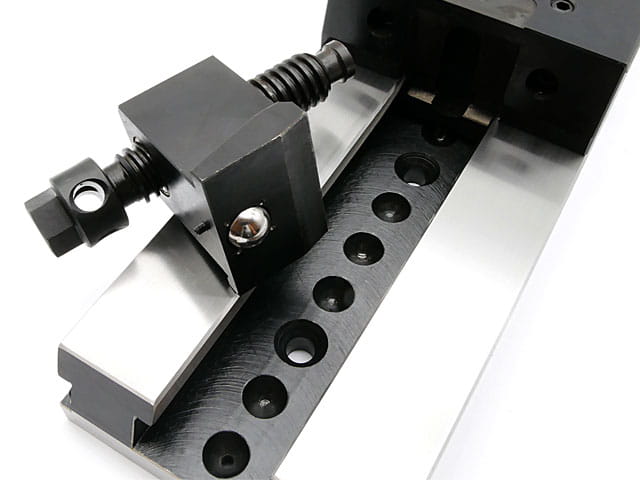

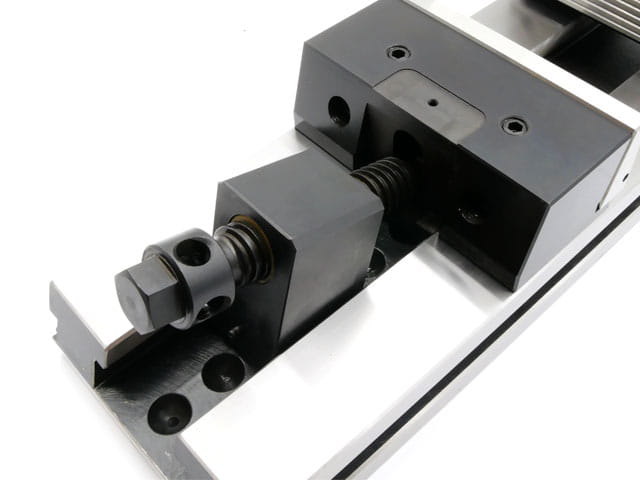

Movable jaw holder with clamping screw ensures quick and easy clamping of workpieces
Floating inserts mounted in the vice jaws with clearance ensuring correct clamping of the workpiece

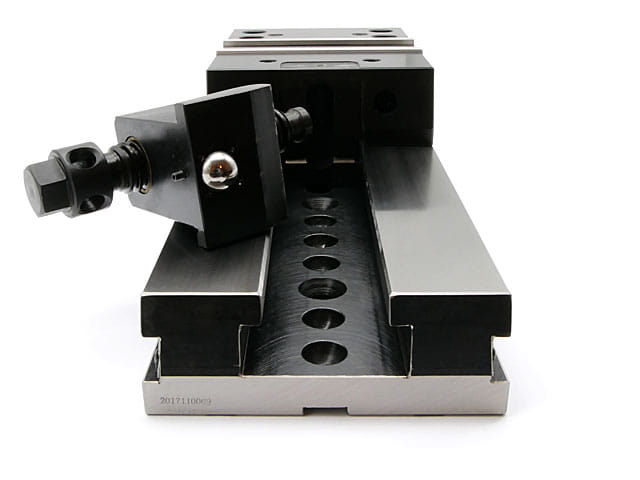

Holes for positioning the steel ball from the holder
The fixed jaw can be rotated 180° and is secured with 4 Allen screws.
